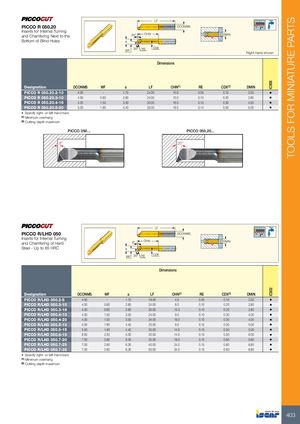

PICCO R 050.20 DCONMS
Inserts for Internal Turning
and Chamfering Next to the 20° OHN DMIN
Bottom of Blind Holes a
20° RE CDX
WF Right-hand shown
Dimensions
| Designation | DCONMS | WF | a | LF | OHN(1) | RE | CDX(2) | DMIN | ||
| PICCO R 050.20.2-10 | 4.00 | - | 1.70 | 24.00 | 10.0 | 0.05 | 0.10 | 2.00 | ||
| PICCO R 050.20.3-10 | 4.00 | 0.60 | 2.60 | 24.00 | 10.0 | 0.10 | 0.20 | 2.80 | ||
| PICCO R 050.20.4-16 | 4.00 | 1.50 | 3.50 | 30.00 | 16.0 | 0.10 | 0.30 | 4.00 | ||
| PICCO R 050.20.5-20 | 5.00 | 1.90 | 4.40 | 35.00 | 19.0 | 0.15 | 0.50 | 5.00 |
- Specify right- or left-hand bars
(1) Minimum overhang (2) Cutting depth maximum PICCO 050... PICCO 050.20...
8° 20°
LF PICCO R/LHD 050 DCONMS
Inserts for Internal Turning
and Chamfering of Hard 8° OHN DMIN
Steel - Up to 65 HRC a
20° RE CDX
WF
Dimensions
| Designation | DCONMS | WF | a | LF | OHN(1) | RE | CDX(2) | DMIN | |
| PICCO R/LHD 050.2-5 | 4.00 | - | 1.70 | 19.00 | 4.0 | 0.05 | 0.10 | 2.00 | |
| PICCO R/LHD 050.3-10 | 4.00 | 0.60 | 2.60 | 24.00 | 9.0 | 0.10 | 0.20 | 2.80 | |
| PICCO R/LHD 050.3-16 | 4.00 | 0.60 | 2.60 | 30.00 | 15.0 | 0.10 | 0.20 | 2.80 | |
| PICCO R/LHD 050.4-10 | 4.00 | 1.50 | 3.50 | 24.00 | 9.0 | 0.10 | 0.30 | 4.00 | |
| PICCO R/LHD 050.4-20 | 4.00 | 1.50 | 3.50 | 34.00 | 19.0 | 0.10 | 0.30 | 4.00 | |
| PICCO R/LHD 050.5-10 | 5.00 | 1.90 | 4.40 | 25.00 | 9.0 | 0.15 | 0.50 | 5.00 | |
| PICCO R/LHD 050.5-15 | 5.00 | 1.90 | 4.40 | 30.00 | 14.0 | 0.15 | 0.50 | 5.00 | |
| PICCO R/LHD 050.6-15 | 6.00 | 2.30 | 5.30 | 30.00 | 14.0 | 0.15 | 0.50 | 6.00 | |
| PICCO R/LHD 050.7-20 | 7.00 | 2.80 | 6.30 | 35.00 | 19.0 | 0.15 | 0.60 | 6.80 | |
| PICCO R/LHD 050.7-25 | 7.00 | 2.80 | 6.30 | 40.00 | 24.0 | 0.15 | 0.60 | 6.80 | |
| PICCO R/LHD 050.7-35 | 7.00 | 2.80 | 6.30 | 50.00 | 34.0 | 0.15 | 0.60 | 6.80 |
- Specify right- or left-hand bars
(1) Minimum overhang (2) Cutting depth maximum
