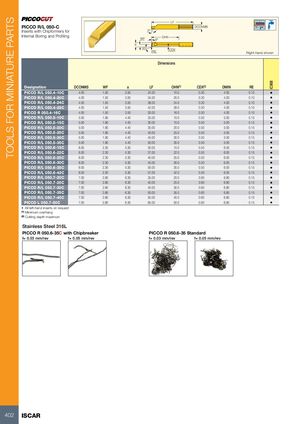

PICCO R/L 050-C DCONMS Inserts with Chipformers for 5°
Internal Boring and Profiling
WF OHN 8° a 20° CDX RE Right-hand shown
Dimensions
| Designation | DCONMS | WF | a | LF | OHN(1) | CDX(2) | DMIN | RE | |
| PICCO R/L 050.4-10C | 4.00 | 1.50 | 3.50 | 24.00 | 10.0 | 0.30 | 4.00 | 0.10 | |
| PICCO R/L 050.4-20C | 4.00 | 1.50 | 3.50 | 34.00 | 20.0 | 0.30 | 4.00 | 0.10 | |
| PICCO R/L 050.4-24C | 4.00 | 1.50 | 3.50 | 38.00 | 24.0 | 0.30 | 4.00 | 0.10 | |
| PICCO R/L 050.4-28C | 4.00 | 1.50 | 3.50 | 42.00 | 28.0 | 0.30 | 4.00 | 0.10 | |
| PICCO R 050.4-16C | 4.00 | 1.50 | 3.50 | 30.00 | 16.0 | 0.30 | 4.00 | 0.10 | |
| PICCO R/L 050.5-10C | 5.00 | 1.90 | 4.40 | 25.00 | 10.0 | 0.50 | 5.00 | 0.15 | |
| PICCO R/L 050.5-15C | 5.00 | 1.90 | 4.40 | 30.00 | 15.0 | 0.50 | 5.00 | 0.15 | |
| PICCO R/L 050.5-20C | 5.00 | 1.90 | 4.40 | 35.00 | 20.0 | 0.50 | 5.00 | 0.15 | |
| PICCO R/L 050.5-25C | 5.00 | 1.90 | 4.40 | 40.00 | 25.0 | 0.50 | 5.00 | 0.15 | |
| PICCO R/L 050.5-30C | 5.00 | 1.90 | 4.40 | 45.00 | 30.0 | 0.50 | 5.00 | 0.15 | |
| PICCO R/L 050.5-35C | 5.00 | 1.90 | 4.40 | 50.00 | 35.0 | 0.50 | 5.00 | 0.15 | |
| PICCO R/L 050.6-15C | 6.00 | 2.30 | 5.30 | 30.00 | 15.0 | 0.50 | 6.00 | 0.15 | |
| PICCO R/L 050.6-22C | 6.00 | 2.30 | 5.30 | 37.00 | 22.0 | 0.50 | 6.00 | 0.15 | |
| PICCO R/L 050.6-25C | 6.00 | 2.30 | 5.30 | 40.00 | 25.0 | 0.50 | 6.00 | 0.15 | |
| PICCO R/L 050.6-30C | 6.00 | 2.30 | 5.30 | 45.00 | 30.0 | 0.50 | 6.00 | 0.15 | |
| PICCO R/L 050.6-35C | 6.00 | 2.30 | 5.30 | 50.00 | 35.0 | 0.50 | 6.00 | 0.15 | |
| PICCO R/L 050.6-42C | 6.00 | 2.30 | 5.30 | 57.00 | 42.0 | 0.50 | 6.00 | 0.15 | |
| PICCO R/L 050.7-20C | 7.00 | 2.80 | 6.30 | 35.00 | 20.0 | 0.60 | 6.80 | 0.15 | |
| PICCO R/L 050.7-25C | 7.00 | 2.80 | 6.30 | 40.00 | 25.0 | 0.60 | 6.80 | 0.15 | |
| PICCO R/L 050.7-30C | 7.00 | 2.80 | 6.30 | 45.00 | 30.0 | 0.60 | 6.80 | 0.15 | |
| PICCO R/L 050.7-35C | 7.00 | 2.80 | 6.30 | 50.00 | 35.0 | 0.60 | 6.80 | 0.15 | |
| PICCO R/L 050.7-40C | 7.00 | 2.80 | 6.30 | 55.00 | 40.0 | 0.60 | 6.80 | 0.15 | |
| PICCO L 050.7-50C | 7.00 | 2.80 | 6.30 | 65.00 | 50.0 | 0.60 | 6.80 | 0.15 |
- All left-hand inserts on request
(1) Minimum overhang (2) Cutting depth maximum
Stainless Steel 316L
PICCO R 050.6-35C with Chipbreaker PICCO R 050.6-35 Standard
f= 0.03 mm/rev f= 0.05 mm/rev f= 0.03 mm/rev f= 0.05 mm/rev
