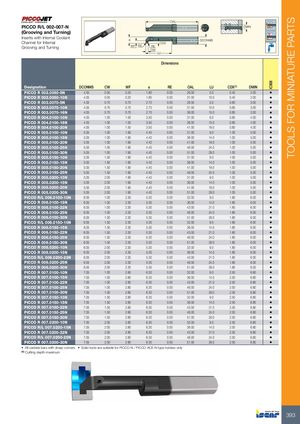

PICCO R/L 002-007-N DMIN
(Grooving and Turning)
Inserts with Internal Coolant
a DCONMS Channel for Internal CDX
Grooving and Turning WF RE RE
CW LU
Dimensions
| Designation | DCONMS | CW | WF | a | RE | OAL | LU | CDX(1) | DMIN | |
| PICCO R 002.0050-5N | 4.05 | 0.50 | 0.20 | 1.80 | 0.00 | 26.00 | 5.0 | 0.40 | 2.00 | |
| PICCO R 002.0050-10N | 4.05 | 0.50 | 0.20 | 1.80 | 0.00 | 31.00 | 10.0 | 0.40 | 2.00 | |
| PICCO R 003.0070-5N | 4.05 | 0.70 | 0.70 | 2.70 | 0.00 | 26.00 | 5.0 | 0.60 | 3.00 | |
| PICCO R 003.0070-10N | 4.05 | 0.70 | 0.70 | 2.70 | 0.00 | 31.00 | 10.0 | 0.60 | 3.00 | |
| PICCO R 003.0070-16N | 4.05 | 0.70 | 0.70 | 2.70 | 0.00 | 36.00 | 15.0 | 0.60 | 3.00 | |
| PICCO R 004.0100-10N | 4.05 | 1.00 | 1.50 | 3.50 | 0.00 | 31.00 | 9.0 | 0.80 | 4.00 | |
| PICCO R 004.0100-16N | 4.05 | 1.00 | 1.50 | 3.50 | 0.00 | 36.00 | 15.0 | 0.80 | 4.00 | |
| PICCO R 004.0100-20N | 4.05 | 1.00 | 1.50 | 3.50 | 0.00 | 41.00 | 19.0 | 0.80 | 4.00 | |
| PICCO R 005.0100-10N | 5.05 | 1.00 | 1.90 | 4.40 | 0.00 | 31.00 | 9.0 | 1.00 | 5.00 | |
| PICCO R 005.0100-15N | 5.05 | 1.00 | 1.90 | 4.40 | 0.00 | 36.00 | 14.0 | 1.00 | 5.00 | |
| PICCO R 005.0100-20N | 5.05 | 1.00 | 1.90 | 4.40 | 0.00 | 41.00 | 19.0 | 1.00 | 5.00 | |
| PICCO R 005.0100-25N | 5.05 | 1.00 | 1.90 | 4.40 | 0.00 | 46.00 | 24.0 | 1.00 | 5.00 | |
| PICCO R 005.0100-30N | 5.05 | 1.00 | 1.90 | 4.40 | 0.00 | 51.00 | 29.0 | 1.00 | 5.00 | |
| PICCO R 005.0150-10N | 5.05 | 1.50 | 1.90 | 4.40 | 0.00 | 31.00 | 9.0 | 1.00 | 5.00 | |
| PICCO R 005.0150-15N | 5.05 | 1.50 | 1.90 | 4.40 | 0.00 | 36.00 | 14.0 | 1.00 | 5.00 | |
| PICCO R 005.0150-20N | 5.05 | 1.50 | 1.90 | 4.40 | 0.00 | 41.00 | 19.0 | 1.00 | 5.00 | |
| PICCO R 005.0150-25N | 5.05 | 1.50 | 1.90 | 4.40 | 0.00 | 46.00 | 24.0 | 1.00 | 5.00 | |
| PICCO R 005.0200-10N | 5.05 | 2.00 | 1.90 | 4.40 | 0.00 | 31.00 | 9.0 | 1.00 | 5.00 | |
| PICCO R 005.0200-15N | 5.05 | 2.00 | 1.90 | 4.40 | 0.00 | 36.00 | 14.0 | 1.00 | 5.00 | |
| PICCO R 005.0200-20N | 5.05 | 2.00 | 1.90 | 4.40 | 0.00 | 41.00 | 19.0 | 1.00 | 5.00 | |
| PICCO R 005.0200-30N | 5.05 | 2.00 | 1.90 | 4.40 | 0.00 | 51.00 | 29.0 | 1.00 | 5.00 | |
| PICCO R/L 006.0100-10N | 6.05 | 1.00 | 2.30 | 5.30 | 0.00 | 32.00 | 9.0 | 1.80 | 6.00 | |
| PICCO R 006.0100-15N | 6.05 | 1.00 | 2.30 | 5.30 | 0.00 | 36.00 | 14.0 | 1.80 | 6.00 | |
| PICCO R 006.0100-22N | 6.05 | 1.00 | 2.30 | 5.30 | 0.00 | 43.00 | 21.0 | 1.80 | 6.00 | |
| PICCO R 006.0100-25N | 6.05 | 1.00 | 2.30 | 5.30 | 0.00 | 46.00 | 24.0 | 1.80 | 6.00 | |
| PICCO R 006.0100-30N | 6.05 | 1.00 | 2.30 | 5.30 | 0.00 | 51.00 | 29.0 | 1.80 | 6.00 | |
| PICCO R/L 006.0150-10N | 6.05 | 1.50 | 2.30 | 5.30 | 0.00 | 32.00 | 9.0 | 1.80 | 6.00 | |
| PICCO R 006.0150-15N | 6.05 | 1.50 | 2.30 | 5.30 | 0.00 | 36.00 | 14.0 | 1.80 | 6.00 | |
| PICCO R 006.0150-22N | 6.05 | 1.50 | 2.30 | 5.30 | 0.00 | 43.00 | 21.0 | 1.80 | 6.00 | |
| PICCO R 006.0150-25N | 6.05 | 1.50 | 2.30 | 5.30 | 0.00 | 46.00 | 24.0 | 1.80 | 6.00 | |
| PICCO R 006.0150-30N | 6.05 | 1.50 | 2.30 | 5.30 | 0.00 | 51.00 | 29.0 | 1.80 | 6.00 | |
| PICCO R 006.0200-10N | 6.05 | 2.00 | 2.30 | 5.30 | 0.00 | 32.00 | 9.0 | 1.80 | 6.00 | |
| PICCO R 006.0200-15N | 6.05 | 2.00 | 2.30 | 5.30 | 0.00 | 36.00 | 14.0 | 1.80 | 6.00 | |
| PICCO R/L 006.0200-22N | 6.05 | 2.00 | 2.30 | 5.30 | 0.00 | 43.00 | 21.0 | 1.80 | 6.00 | |
| PICCO R 006.0200-25N | 6.05 | 2.00 | 2.30 | 5.30 | 0.00 | 46.00 | 24.0 | 1.80 | 6.00 | |
| PICCO R 006.0200-30N | 6.05 | 2.00 | 2.30 | 5.30 | 0.00 | 51.00 | 29.0 | 1.80 | 6.00 | |
| PICCO R 007.0100-10N | 7.05 | 1.00 | 2.80 | 6.30 | 0.00 | 32.00 | 9.0 | 2.50 | 6.80 | |
| PICCO R 007.0100-15N | 7.05 | 1.00 | 2.80 | 6.30 | 0.00 | 36.00 | 14.0 | 2.50 | 6.80 | |
| PICCO R 007.0100-22N | 7.05 | 1.00 | 2.80 | 6.30 | 0.00 | 43.00 | 21.0 | 2.50 | 6.80 | |
| PICCO R 007.0100-25N | 7.05 | 1.00 | 2.80 | 6.30 | 0.00 | 46.00 | 24.0 | 2.50 | 6.80 | |
| PICCO R 007.0100-30N | 7.05 | 1.00 | 2.80 | 6.30 | 0.00 | 51.00 | 29.0 | 2.50 | 6.80 | |
| PICCO R 007.0150-10N | 7.05 | 1.50 | 2.80 | 6.30 | 0.00 | 32.00 | 9.0 | 2.50 | 6.80 | |
| PICCO R 007.0150-15N | 7.05 | 1.50 | 2.80 | 6.30 | 0.00 | 36.00 | 14.0 | 2.50 | 6.80 | |
| PICCO R 007.0150-22N | 7.05 | 1.50 | 2.80 | 6.30 | 0.00 | 43.00 | 21.0 | 2.50 | 6.80 | |
| PICCO R 007.0150-25N | 7.05 | 1.50 | 2.80 | 6.30 | 0.00 | 46.00 | 24.0 | 2.50 | 6.80 | |
| PICCO R 007.0150-30N | 7.05 | 1.50 | 2.80 | 6.30 | 0.00 | 51.00 | 29.0 | 2.50 | 6.80 | |
| PICCO R 007.0200-10N | 7.05 | 2.00 | 2.80 | 6.30 | 0.00 | 32.00 | 9.0 | 2.50 | 6.80 | |
| PICCO R/L 007.0200-15N | 7.05 | 2.00 | 2.80 | 6.30 | 0.00 | 36.00 | 14.0 | 2.50 | 6.80 | |
| PICCO R 007.0200-22N | 7.05 | 2.00 | 2.80 | 6.30 | 0.00 | 43.00 | 21.0 | 2.50 | 6.80 | |
| PICCO R/L 007.0200-25N | 7.05 | 2.00 | 2.80 | 6.30 | 0.00 | 46.00 | 24.0 | 2.50 | 6.80 | |
| PICCO R 007.0200-30N | 7.05 | 2.00 | 2.80 | 6.30 | 0.00 | 51.00 | 29.0 | 2.50 | 6.80 |
- All carbide bars with sharp corners
- Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
