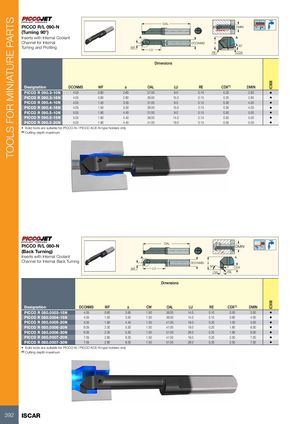

(Turning 90°)
Inserts with Internal Coolant A A
Channel for Internal 90˚ DCONMS a
Turning and Profiling WF 20˚
LU RE CDX
Dimensions
| Designation | DCONMS | WF | a | OAL | LU | RE | CDX(1) | DMIN | |
| PICCO R 090.3-10N | 4.05 | 0.60 | 2.60 | 31.00 | 9.0 | 0.10 | 0.20 | 2.80 | |
| PICCO R 090.3-16N | 4.05 | 0.60 | 2.60 | 36.00 | 15.0 | 0.10 | 0.20 | 2.80 | |
| PICCO R 090.4-10N | 4.05 | 1.50 | 3.50 | 31.00 | 9.0 | 0.10 | 0.30 | 4.00 | |
| PICCO R 090.4-16N | 4.05 | 1.50 | 3.50 | 36.00 | 15.0 | 0.10 | 0.30 | 4.00 | |
| PICCO R 090.5-10N | 5.05 | 1.90 | 4.40 | 31.00 | 9.0 | 0.15 | 0.50 | 5.00 | |
| PICCO R 090.5-15N | 5.05 | 1.90 | 4.40 | 36.00 | 14.0 | 0.15 | 0.50 | 5.00 | |
| PICCO R 090.5-20N | 5.05 | 1.90 | 4.40 | 41.00 | 19.0 | 0.15 | 0.50 | 5.00 |
- Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
PICCO R/L 080-N
(Back Turning)
Inserts with Internal Coolant A
Channel for Internal Back Turning
WF LU
OAL
Dimensions
DMIN A DCONMS a
30˚ 3˚ CDX
CW RE
| Designation | DCONMS | WF | a | CW | OAL | LU | RE | CDX(1) | DMIN | |
| PICCO R 080.0003-15N | 4.05 | 0.60 | 2.60 | 1.50 | 36.00 | 14.0 | 0.10 | 0.50 | 3.00 | |
| PICCO R 080.0004-15N | 4.05 | 1.50 | 3.50 | 1.50 | 36.00 | 14.0 | 0.15 | 0.80 | 4.00 | |
| PICCO R 080.0005-20N | 5.05 | 1.90 | 4.40 | 1.50 | 41.00 | 19.0 | 0.20 | 1.00 | 5.00 | |
| PICCO R 080.0006-20N | 6.05 | 2.30 | 5.30 | 1.50 | 41.00 | 19.0 | 0.20 | 1.80 | 6.00 | |
| PICCO R 080.0006-30N | 6.05 | 2.30 | 5.30 | 1.50 | 51.00 | 29.0 | 0.20 | 1.80 | 6.00 | |
| PICCO R 080.0007-20N | 7.05 | 2.80 | 6.30 | 1.50 | 41.00 | 19.0 | 0.20 | 2.50 | 7.00 | |
| PICCO R 080.0007-30N | 7.05 | 2.80 | 6.30 | 1.50 | 51.00 | 29.0 | 0.20 | 2.50 | 7.00 |
- Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
