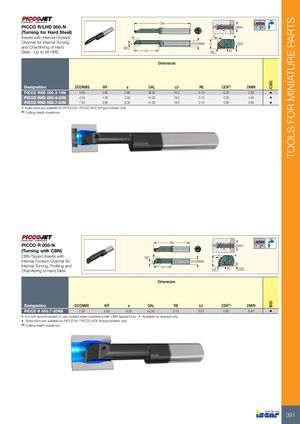

PICCO R/LHD 050-N DMIN
(Turning for Hard Steel)
| Inserts with Internal Coolant | A | 8˚ | A | ||||
| Channel for Internal Turning | |||||||
| DCONMS | a | CDX | |||||
| and Chamfering of Hard | WF | ||||||
| Steel - Up to 65 HRC | LU | RE | 20˚ |
Dimensions
| Designation | DCONMS | WF | a | OAL | LU | RE | CDX(1) | DMIN | ||
| PICCO RHD 050.3-16N | 4.05 | 0.60 | 2.60 | 36.00 | 15.0 | 0.10 | 0.20 | 2.80 | • | |
| PICCO RHD 050.4-20N | 4.05 | 1.50 | 3.50 | 41.00 | 19.0 | 0.10 | 0.30 | 4.00 | • | |
| PICCO RHD 050.7-20N | 7.05 | 2.80 | 6.30 | 41.00 | 19.0 | 0.15 | 0.60 | 6.80 | • |
- Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
PICCO R 050-N OAL DMIN
(Turning with CBN)
| CBN Tipped Inserts with | A | 8˚ | A | |
| WF |
| Internal Coolant Channel for | DCONMS | a | |||
| Internal Turning, Profiling and | LU | ||||
| Chamfering of Hard Steel | RE | 20˚ | CDX |
Dimensions
| Designation | DCONMS | WF | a | OAL | RE | LU | CDX(1) | DMIN | ||
| PICCO R 050.7-20NB | 7.05 | 2.80 | 6.30 | 42.50 | 0.15 | 20.5 | 0.60 | 6.80 | • |
- It is not recommended to use coolant when machining with CBN tipped tools
- Available on request only
- Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
