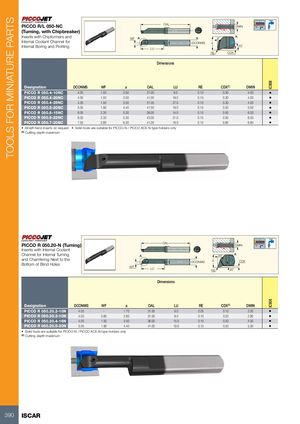

TOOLS FOR MINIATURE PARTS IC908IC908 PICCO R/L 050-NC OAL DMIN (Turning, with Chipbreaker) Inserts with Chipformers and WF A 8˚ A Internal Coolant Channel for DCONMS a Internal Boring and Profiling 20˚ LU RE CDX Dimensions Designation DCONMS WF a OAL LU RE CDX(1) DMIN PICCO R 050.4-10NC 4.05 1.50 3.50 31.00 9.0 0.10 0.30 4.00 • PICCO R 050.4-20NC 4.05 1.50 3.50 41.00 19.0 0.10 0.30 4.00 • PICCO R 050.4-28NC 4.05 1.50 3.50 51.00 27.0 0.10 0.30 4.00 • PICCO R 050.5-20NC 5.05 1.90 4.40 41.00 19.0 0.15 0.50 5.00 • PICCO R 050.6-15NC 6.05 2.30 5.30 36.00 14.0 0.15 0.50 6.00 • PICCO R 050.6-22NC 6.05 2.30 5.30 43.00 21.0 0.15 0.50 6.00 • PICCO R 050.7-20NC 7.05 2.80 6.30 41.00 19.0 0.15 0.60 6.80 • • All left-hand inserts on request • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only (1) Cutting depth maximum PICCO R 050.20-N (Turning) OAL DMIN Inserts with Internal Coolant Channel for Internal Turning A 20˚ A and Chamfering Next to theBottom of Blind Holes DCONMS a CDX WF LU RE 20˚ Dimensions Designation DCONMS WF a OAL LU RE CDX(1) DMIN PICCO R 050.20.2-10N 4.05 - 1.70 31.00 9.0 0.05 0.10 2.00 • PICCO R 050.20.3-10N 4.05 0.60 2.60 31.00 9.0 0.10 0.20 2.80 • PICCO R 050.20.4-16N 4.05 1.50 3.50 36.00 15.0 0.10 0.30 4.00 • PICCO R 050.20.5-20N 5.05 1.90 4.40 41.00 19.0 0.15 0.50 5.00 • • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only (1) Cutting depth maximum 390 ISCAR
