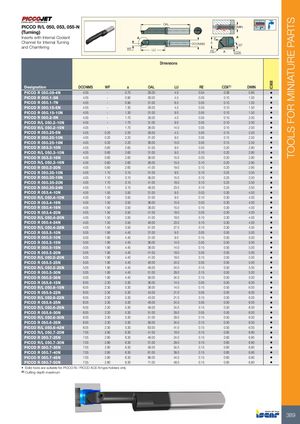

PICCO R/L 050, 053, 055-N OAL
(Turning)
Inserts with Internal Coolant A
Channel for Internal Turning
and Chamfering
WF LU
Dimensions
A 8˚ a DCONMS 20˚
RE A CDX
| Designation | DCONMS | WF | a | OAL | LU | RE | CDX(1) | DMIN | |
| PICCO R 050.08-4N | 4.05 | - | 0.70 | 26.00 | 4.0 | 0.04 | 0.08 | 0.80 | |
| PICCO R 050.1-5N | 4.05 | - | 0.90 | 26.00 | 4.5 | 0.05 | 0.10 | 1.00 | |
| PICCO R 050.1-7N | 4.05 | - | 0.90 | 31.00 | 6.5 | 0.05 | 0.10 | 1.00 | |
| PICCO R 050.15-5N | 4.05 | - | 1.30 | 26.00 | 4.5 | 0.05 | 0.10 | 1.50 | |
| PICCO R 050.15-10N | 4.05 | - | 1.30 | 31.00 | 9.0 | 0.05 | 0.10 | 1.50 | |
| PICCO R 050.2-5N | 4.05 | - | 1.70 | 26.00 | 4.0 | 0.05 | 0.10 | 2.00 | |
| PICCO R/L 050.2-10N | 4.05 | - | 1.70 | 31.00 | 9.0 | 0.05 | 0.10 | 2.00 | |
| PICCO R/L 050.2-15N | 4.05 | - | 1.70 | 36.00 | 14.0 | 0.05 | 0.10 | 2.00 | |
| PICCO R 050.25-5N | 4.05 | 0.20 | 2.20 | 26.00 | 4.5 | 0.05 | 0.15 | 2.50 | |
| PICCO R 050.25-10N | 4.05 | 0.20 | 2.20 | 31.00 | 9.0 | 0.05 | 0.15 | 2.50 | |
| PICCO R 050.25-16N | 4.05 | 0.20 | 2.20 | 36.00 | 15.0 | 0.05 | 0.15 | 2.50 | |
| PICCO R 053.3-10N | 4.05 | 0.60 | 2.60 | 31.00 | 9.0 | 0.03 | 0.20 | 2.80 | |
| PICCO R/L 050.3-10N | 4.05 | 0.60 | 2.60 | 31.00 | 9.0 | 0.10 | 0.20 | 2.80 | |
| PICCO R 053.3-16N | 4.05 | 0.60 | 2.60 | 36.00 | 15.0 | 0.03 | 0.20 | 2.80 | |
| PICCO R/L 050.3-16N | 4.05 | 0.60 | 2.60 | 36.00 | 15.0 | 0.10 | 0.20 | 2.80 | |
| PICCO R 050.3-20N | 4.05 | 0.60 | 2.60 | 41.00 | 19.0 | 0.10 | 0.20 | 2.80 | |
| PICCO R 050.35-10N | 4.05 | 1.10 | 3.10 | 31.00 | 9.0 | 0.10 | 0.25 | 3.50 | |
| PICCO R 050.35-16N | 4.05 | 1.10 | 3.10 | 36.00 | 15.0 | 0.10 | 0.25 | 3.50 | |
| PICCO R 050.35-20N | 4.05 | 1.10 | 3.10 | 41.00 | 19.0 | 0.10 | 0.25 | 3.50 | |
| PICCO R 050.35-24N | 4.05 | 1.10 | 3.10 | 46.00 | 23.0 | 0.10 | 0.25 | 3.50 | |
| PICCO R 053.4-10N | 4.05 | 1.50 | 3.50 | 31.00 | 9.0 | 0.03 | 0.30 | 4.00 | |
| PICCO R/L 050.4-10N | 4.05 | 1.50 | 3.50 | 31.00 | 9.0 | 0.10 | 0.30 | 4.00 | |
| PICCO R 053.4-16N | 4.05 | 1.50 | 3.50 | 36.00 | 15.0 | 0.03 | 0.30 | 4.00 | |
| PICCO R 050.4-16N | 4.05 | 1.50 | 3.50 | 36.00 | 15.0 | 0.10 | 0.30 | 4.00 | |
| PICCO R 053.4-20N | 4.05 | 1.50 | 3.50 | 41.00 | 19.0 | 0.03 | 0.30 | 4.00 | |
| PICCO R/L 050.4-20N | 4.05 | 1.50 | 3.50 | 41.00 | 19.0 | 0.10 | 0.30 | 4.00 | |
| PICCO R 050.4-24N | 4.05 | 1.50 | 3.50 | 46.00 | 23.0 | 0.10 | 0.30 | 4.00 | |
| PICCO R/L 050.4-28N | 4.05 | 1.50 | 3.50 | 51.00 | 27.0 | 0.10 | 0.30 | 4.00 | |
| PICCO R 055.5-10N | 5.05 | 1.90 | 4.40 | 31.00 | 9.0 | 0.05 | 0.50 | 5.00 | |
| PICCO R 050.5-10N | 5.05 | 1.90 | 4.40 | 31.00 | 9.0 | 0.15 | 0.50 | 5.00 | |
| PICCO R 055.5-15N | 5.05 | 1.90 | 4.40 | 36.00 | 14.0 | 0.05 | 0.50 | 5.00 | |
| PICCO R 050.5-15N | 5.05 | 1.90 | 4.40 | 36.00 | 14.0 | 0.15 | 0.50 | 5.00 | |
| PICCO R 055.5-20N | 5.05 | 1.90 | 4.40 | 41.00 | 19.0 | 0.05 | 0.50 | 5.00 | |
| PICCO R/L 050.5-20N | 5.05 | 1.90 | 4.40 | 41.00 | 19.0 | 0.15 | 0.50 | 5.00 | |
| PICCO R 055.5-25N | 5.05 | 1.90 | 4.40 | 46.00 | 24.0 | 0.05 | 0.50 | 5.00 | |
| PICCO R/L 050.5-25N | 5.05 | 1.90 | 4.40 | 46.00 | 24.0 | 0.15 | 0.50 | 5.00 | |
| PICCO R 050.5-30N | 5.05 | 1.90 | 4.40 | 51.00 | 29.0 | 0.15 | 0.50 | 5.00 | |
| PICCO R 050.5-35N | 5.05 | 1.90 | 4.40 | 56.00 | 34.0 | 0.15 | 0.50 | 5.00 | |
| PICCO R 055.6-15N | 6.05 | 2.30 | 5.30 | 36.00 | 14.0 | 0.05 | 0.50 | 6.00 | |
| PICCO R/L 050.6-15N | 6.05 | 2.30 | 5.30 | 36.00 | 14.0 | 0.15 | 0.50 | 6.00 | |
| PICCO R 055.6-22N | 6.05 | 2.30 | 5.30 | 43.00 | 21.0 | 0.05 | 0.50 | 6.00 | |
| PICCO R/L 050.6-22N | 6.05 | 2.30 | 5.30 | 43.00 | 21.0 | 0.15 | 0.50 | 6.00 | |
| PICCO R 055.6-25N | 6.05 | 2.30 | 5.30 | 46.00 | 24.0 | 0.05 | 0.50 | 6.00 | |
| PICCO R/L 050.6-25N | 6.05 | 2.30 | 5.30 | 46.00 | 24.0 | 0.15 | 0.50 | 6.00 | |
| PICCO R 055.6-30N | 6.05 | 2.30 | 5.30 | 51.00 | 29.0 | 0.05 | 0.50 | 6.00 | |
| PICCO R/L 050.6-30N | 6.05 | 2.30 | 5.30 | 51.00 | 29.0 | 0.15 | 0.50 | 6.00 | |
| PICCO R 050.6-35N | 6.05 | 2.30 | 5.30 | 56.00 | 34.0 | 0.15 | 0.50 | 6.00 | |
| PICCO R/L 050.6-42N | 6.05 | 2.30 | 5.30 | 63.00 | 41.0 | 0.15 | 0.50 | 6.00 | |
| PICCO R/L 050.7-20N | 7.05 | 2.80 | 6.30 | 41.00 | 19.0 | 0.15 | 0.60 | 6.80 | |
| PICCO R 050.7-25N | 7.05 | 2.80 | 6.30 | 46.00 | 24.0 | 0.15 | 0.60 | 6.80 | |
| PICCO R/L 050.7-30N | 7.05 | 2.80 | 6.30 | 51.00 | 29.0 | 0.15 | 0.60 | 6.80 | |
| PICCO R 050.7-35N | 7.05 | 2.80 | 6.30 | 56.00 | 34.0 | 0.15 | 0.60 | 6.80 | |
| PICCO R 050.7-40N | 7.05 | 2.80 | 6.30 | 61.00 | 39.0 | 0.15 | 0.60 | 6.80 | |
| PICCO R 050.7-45N | 7.05 | 2.80 | 6.30 | 66.00 | 44.0 | 0.15 | 0.60 | 6.80 | |
| PICCO R 050.7-50N | 7.05 | 2.80 | 6.30 | 71.00 | 49.0 | 0.15 | 0.60 | 6.80 |
- Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
