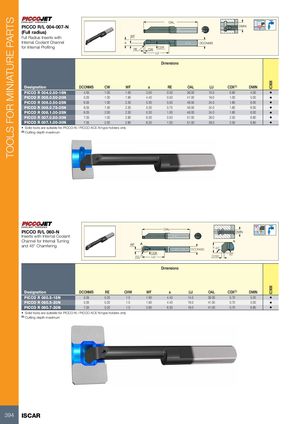

TOOLS FOR MINIATURE PARTS IC908IC908 OAL PICCO R/L 004-007-N DMIN (Full radius) Full Radius Inserts with WF Internal Coolant Channel a DCONMS for Internal Profiling RE CDXCW LU Dimensions Designation DCONMS CW WF a RE OAL LU CDX(1) DMIN PICCO R 004.0.50-16N 4.05 1.00 1.50 3.50 0.50 36.00 15.0 0.80 4.00 • PICCO R 005.0.50-20N 5.05 1.00 1.90 4.40 0.50 41.00 19.0 1.00 5.00 • PICCO R 006.0.50-25N 6.05 1.00 2.30 5.30 0.50 46.00 24.0 1.80 6.00 • PICCO R 006.0.75-25N 6.05 1.50 2.30 5.30 0.75 46.00 24.0 1.80 6.00 • PICCO R 006.1.00-25N 6.05 2.00 2.30 5.30 1.00 46.00 24.0 1.80 6.00 • PICCO R 007.0.50-30N 7.05 1.00 2.80 6.30 0.50 51.00 29.0 2.50 6.80 • PICCO R 007.1.00-30N 7.05 2.00 2.80 6.30 1.00 51.00 29.0 2.50 6.80 • • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only (1) Cutting depth maximum PICCO R/L 060-N OAL DMIN Inserts with Internal Coolant Channel for Internal Turning A and 45° Chamfering WF A DCONMS a 45˚ CDXRELU CHW 45˚ Dimensions Designation DCONMS RE CHW WF a LU OAL CDX(1) DMIN PICCO R 060.5-15N 5.05 0.20 1.0 1.90 4.40 14.0 36.00 0.70 5.00 • PICCO R 060.5-20N 5.05 0.20 1.0 1.90 4.40 19.0 41.00 0.70 5.00 • PICCO R 060.7-20N 7.05 0.20 1.0 2.80 6.30 19.0 41.00 0.70 6.80 • • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only (1) Cutting depth maximum 394 ISCAR
