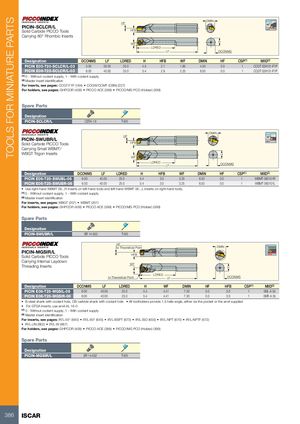

TOOLS FOR MINIATURE PARTS
DMIN
HF 95º
PICIN-SCLCR/L
Solid Carbide PICCO Tools HFB
Carrying 80° Rhombic Inserts
H
WF
LDRED
LF DCONMS
Designation DCONMS LF LDRED H HFB WF DMIN HF CSP(1) MIID(2)
PICIN E05-T20-SCLCR/L-03 5.00 35.00 20.0 4.5 2.1 1.85 4.50 0.0 1 CCGT 03X101-F1P
PICIN E06-T25-SCLCR/L-03 6.00 40.00 25.0 5.4 2.9 2.25 6.00 0.0 1 CCGT 03X101-F1P
(1) 0 - Without coolant supply, 1 - With coolant supply
(2) Master insert identification
For inserts, see pages: CCGT-F1P (184) • CCGW/CCMT (CBN) (227)
For holders, see pages: GHPCOR (409) • PICCO ACE (398) • PICCO/MG PCO (Holder) (399)
Spare Parts
Designation
PICIN-SCLCR/L CSTA-1.6 T-6/5
DMIN
HF 93º
PICIN-SWUBR/L
Solid Carbide PICCO Tools HFB
Carrying Small WBMT/
WBGT Trigon Inserts H
WF
LDRED
LF DCONMS
Designation DCONMS LF LDRED H HFB WF DMIN HF CSP(1) MIID(2)
PICIN E06-T25-SWUBL-06 6.00 40.00 25.0 5.4 3.0 3.25 6.50 0.0 1 WBMT 060101R
PICIN E06-T25-SWUBR-06 6.00 40.00 25.0 5.4 3.0 3.25 6.50 0.0 1 WBMT 060101L
• Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools.
(1) 0 - Without coolant supply, 1 - With coolant supply
(2) Master insert identification
For inserts, see pages: WBGT (207) • WBMT (207)
For holders, see pages: GHPCOR (409) • PICCO ACE (398) • PICCO/MG PCO (Holder) (399)
Spare Parts
Designation
PICIN-SWUBR/L SR 14-552 T-6/5
HF
to Theoretical Point DMIN
PICIN-MGSIR/L HFB
Solid Carbide PICCO Tools
Carrying Internal Laydown
WF
Threading Inserts H
LDRED
to Theoretical Point LF DCONMS
Designation DCONMS LF LDRED H WF DMIN HF HFB CSP(1) MIID(2)
PICIN E06-T25-MGSIL-06 6.00 40.00 25.0 5.4 4.41 7.30 0.0 3.0 1 06IL A 55
PICIN E06-T25-MGSIR-06 6.00 40.00 25.0 5.4 4.41 7.30 0.0 3.0 1 06IR A 55
• B-steel shank with coolant hole, CB-carbide shank with coolant hole • All toolholders provide 1.5 helix angle, either via the pocket or the anvil supplied
• For GTGA inserts, use anvil AL 16-0
(1) 0 - Without coolant supply, 1 - With coolant supply
(2) Master insert identification
For inserts, see pages: IR/L-55° (640) • IR/L-60° (645) • IR/L-BSPT (673) • IR/L-ISO (655) • IR/L-NPT (670) • IR/L-NPTF (672)
• IR/L-UN (662) • IR/L-W (667)
For holders, see pages: GHPCOR (409) • PICCO ACE (398) • PICCO/MG PCO (Holder) (399)
Spare Parts
Designation
PICIN-MGSIR/L SR 14-552 T-6/5
386 ISCAR
DMIN
HF 95º
PICIN-SCLCR/L
Solid Carbide PICCO Tools HFB
Carrying 80° Rhombic Inserts
H
WF
LDRED
LF DCONMS
Designation DCONMS LF LDRED H HFB WF DMIN HF CSP(1) MIID(2)
PICIN E05-T20-SCLCR/L-03 5.00 35.00 20.0 4.5 2.1 1.85 4.50 0.0 1 CCGT 03X101-F1P
PICIN E06-T25-SCLCR/L-03 6.00 40.00 25.0 5.4 2.9 2.25 6.00 0.0 1 CCGT 03X101-F1P
(1) 0 - Without coolant supply, 1 - With coolant supply
(2) Master insert identification
For inserts, see pages: CCGT-F1P (184) • CCGW/CCMT (CBN) (227)
For holders, see pages: GHPCOR (409) • PICCO ACE (398) • PICCO/MG PCO (Holder) (399)
Spare Parts
Designation
PICIN-SCLCR/L CSTA-1.6 T-6/5
DMIN
HF 93º
PICIN-SWUBR/L
Solid Carbide PICCO Tools HFB
Carrying Small WBMT/
WBGT Trigon Inserts H
WF
LDRED
LF DCONMS
Designation DCONMS LF LDRED H HFB WF DMIN HF CSP(1) MIID(2)
PICIN E06-T25-SWUBL-06 6.00 40.00 25.0 5.4 3.0 3.25 6.50 0.0 1 WBMT 060101R
PICIN E06-T25-SWUBR-06 6.00 40.00 25.0 5.4 3.0 3.25 6.50 0.0 1 WBMT 060101L
• Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools.
(1) 0 - Without coolant supply, 1 - With coolant supply
(2) Master insert identification
For inserts, see pages: WBGT (207) • WBMT (207)
For holders, see pages: GHPCOR (409) • PICCO ACE (398) • PICCO/MG PCO (Holder) (399)
Spare Parts
Designation
PICIN-SWUBR/L SR 14-552 T-6/5
HF
to Theoretical Point DMIN
PICIN-MGSIR/L HFB
Solid Carbide PICCO Tools
Carrying Internal Laydown
WF
Threading Inserts H
LDRED
to Theoretical Point LF DCONMS
Designation DCONMS LF LDRED H WF DMIN HF HFB CSP(1) MIID(2)
PICIN E06-T25-MGSIL-06 6.00 40.00 25.0 5.4 4.41 7.30 0.0 3.0 1 06IL A 55
PICIN E06-T25-MGSIR-06 6.00 40.00 25.0 5.4 4.41 7.30 0.0 3.0 1 06IR A 55
• B-steel shank with coolant hole, CB-carbide shank with coolant hole • All toolholders provide 1.5 helix angle, either via the pocket or the anvil supplied
• For GTGA inserts, use anvil AL 16-0
(1) 0 - Without coolant supply, 1 - With coolant supply
(2) Master insert identification
For inserts, see pages: IR/L-55° (640) • IR/L-60° (645) • IR/L-BSPT (673) • IR/L-ISO (655) • IR/L-NPT (670) • IR/L-NPTF (672)
• IR/L-UN (662) • IR/L-W (667)
For holders, see pages: GHPCOR (409) • PICCO ACE (398) • PICCO/MG PCO (Holder) (399)
Spare Parts
Designation
PICIN-MGSIR/L SR 14-552 T-6/5
386 ISCAR
