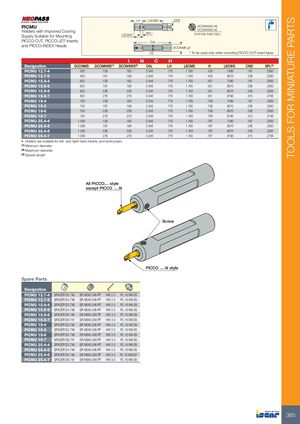

TOOLS FOR MINIATURE PARTS LH LSCMS CND PICMU DCONNWS h6 Holders with Improved CoolingSupply Suitable for Mounting DCONXWS h6LSCWSSPL*(mini bar insert dia.) PICCO-CUT, PICCO-JET Inserts OAL and PICCO-INDEX Heads DCONMS g7 H * To be used only when mounting PICCO-CUT insert types I N C H Designation DCONMS DCONNWS(1) DCONXWS(2) OAL LH LSCMS H LSCWS CND SPL(3) PICMU 12.7-4 .500 .158 .160 3.346 .776 1.795 .433 .7480 .197 .2363 PICMU 12.7-5 .500 .197 .199 3.346 .776 1.795 .433 .8070 .236 .2363 PICMU 15.9-4 .625 .158 .160 3.346 .776 1.795 .551 .7480 .197 .2363 PICMU 15.9-5 .625 .197 .199 3.346 .776 1.795 .551 .8070 .236 .2363 PICMU 15.9-6 .625 .236 .238 3.346 .776 1.795 .551 .8070 .236 .2363 PICMU 15.9-7 .625 .276 .278 3.346 .776 1.795 .551 .8190 .315 .2756 PICMU 19-4 .750 .158 .160 3.346 .776 1.795 .709 .7480 .197 .2363 PICMU 19-5 .750 .197 .199 3.346 .776 1.795 .709 .8070 .236 .2363 PICMU 19-6 .750 .236 .238 3.346 .776 1.795 .709 .8070 .236 .2363 PICMU 19-7 .750 .276 .278 3.346 .776 1.795 .709 .8190 .315 .2756 PICMU 25.4-4 1.000 .158 .160 3.346 .776 1.795 .787 .7480 .197 .2363 PICMU 25.4-5 1.000 .197 .199 3.346 .776 1.795 .787 .8070 .236 .2363 PICMU 25.4-6 1.000 .236 .238 3.346 .776 1.795 .787 .8070 .236 .2363 PICMU 25.4-7 1.000 .276 .278 3.346 .776 1.795 .787 .8190 .315 .2756 • Holders are suitable for left- and right-hand inserts, and boring bars (1) Minimum diameter (2) Maximum diameter (3) Spacer length All PICCO.... style except PICCO .....N Screw PICCO .....N style Spare Parts Designation PICMU 12.7-4 SPACER D3.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5 PICMU 12.7-5 SPACER D4.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5 PICMU 15.9-4 SPACER D3.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5 PICMU 15.9-5 SPACER D4.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5 PICMU 15.9-6 SPACER D5.7X6 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5 PICMU 15.9-7 SPACER D6.7X7 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5 PICMU 19-4 SPACER D3.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5 PICMU 19-5 SPACER D4.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5 PICMU 19-6 SPACER D5.7X6 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5 PICMU 19-7 SPACER D6.7X7 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5 PICMU 25.4-4 SPACER D3.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5 PICMU 25.4-5 SPACER D4.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5 PICMU 25.4-6 SPACER D5.7X6 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5* PICMU 25.4-7 SPACER D6.7X7 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5 385
