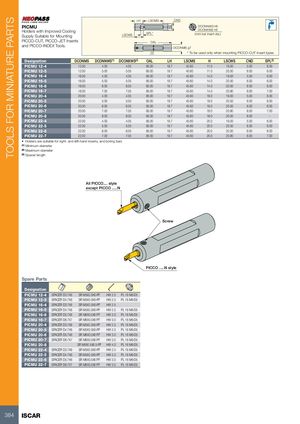

LH LSCMS CND
PICMU DCONNWS h6 Holders with Improved Cooling DCONXWS h6
Supply Suitable for Mounting LSCWS SPL* (mini bar insert dia.)
PICCO-CUT, PICCO-JET Inserts
OAL and PICCO-INDEX Tools. DCONMS g7 H * To be used only when mounting PICCO-CUT insert types
| Designation | DCONMS | DCONNWS (1) | DCONXWS(2) | OAL | LH | LSCMS | H | LSCWS | CND | SPL (3) |
| PICMU 12-4 | 12.00 | 4.00 | 4.05 | 85.00 | 19.7 | 45.60 | 11.0 | 19.00 | 5.00 | 6.00 |
| PICMU 12-5 | 12.00 | 5.00 | 5.05 | 85.00 | 19.7 | 45.60 | 11.0 | 20.50 | 6.00 | 6.00 |
| PICMU 16-4 | 16.00 | 4.00 | 4.05 | 85.00 | 19.7 | 45.60 | 14.0 | 19.00 | 5.00 | 6.00 |
| PICMU 16-5 | 16.00 | 5.00 | 5.05 | 85.00 | 19.7 | 45.60 | 14.0 | 20.50 | 6.00 | 6.00 |
| PICMU 16-6 | 16.00 | 6.00 | 6.05 | 85.00 | 19.7 | 45.60 | 14.0 | 20.50 | 6.00 | 6.00 |
| PICMU 16-7 | 16.00 | 7.00 | 7.05 | 85.00 | 19.7 | 45.60 | 14.0 | 20.80 | 8.00 | 7.00 |
| PICMU 20-4 | 20.00 | 4.00 | 4.05 | 85.00 | 19.7 | 45.60 | 18.0 | 19.00 | 5.00 | 6.00 |
| PICMU 20-5 | 20.00 | 5.00 | 5.05 | 85.00 | 19.7 | 45.60 | 18.0 | 20.50 | 6.00 | 6.00 |
| PICMU 20-6 | 20.00 | 6.00 | 6.05 | 85.00 | 19.7 | 45.60 | 18.0 | 20.50 | 6.00 | 6.00 |
| PICMU 20-7 | 20.00 | 7.00 | 7.05 | 85.00 | 19.7 | 45.60 | 18.0 | 20.80 | 8.00 | 7.00 |
| PICMU 20-8 | 20.00 | 8.00 | 8.00 | 85.00 | 19.7 | 45.60 | 18.0 | 20.00 | 8.00 | - |
| PICMU 22-4 | 22.00 | 4.00 | 4.05 | 85.00 | 19.7 | 45.60 | 20.0 | 19.00 | 5.00 | 6.00 |
| PICMU 22-5 | 22.00 | 5.00 | 5.05 | 85.00 | 19.7 | 45.60 | 20.0 | 20.50 | 6.00 | 6.00 |
| PICMU 22-6 | 22.00 | 6.00 | 6.05 | 85.00 | 19.7 | 45.60 | 20.0 | 20.50 | 6.00 | 6.00 |
| PICMU 22-7 | 22.00 | 7.00 | 7.05 | 85.00 | 19.7 | 45.60 | 20.0 | 20.80 | 8.00 | 7.00 |
- Holders are suitable for right- and left-hand inserts, and boring bars
(1) Minimum diameter (2) Maximum diameter (3) Spacer length
All PICCO.... style except PICCO .....N
Screw
PICCO .....N style
Spare Parts
Designation
| PICMU 12-4 | SPACER D3.7X6 | SR M5X0.5X6-PF | HW 2.5 | PL 16 M6-D5 |
| PICMU 12-5 | SPACER D4.7X6 | SR M5X0.5X6-PF | HW 2.5 | PL 16 M6-D5 |
| PICMU 16-4 | SPACER D3.7X6 | SR M5X0.5X6-PF | HW 2.5 | |
| PICMU 16-5 | SPACER D4.7X6 | SR M5X0.5X6-PF | HW 2.5 | PL 16 M6-D5 |
| PICMU 16-6 | SPACER D5.7X6 | SR M6X0.5X6 PF | HW 3.0 | PL 16 M6-D5 |
| PICMU 16-7 | SPACER D6.7X7 | SR M6X0.5X6 PF | HW 3.0 | PL 16 M6-D5 |
| PICMU 20-4 | SPACER D3.7X6 | SR M5X0.5X6-PF | HW 2.5 | PL 16 M6-D5 |
| PICMU 20-5 | SPACER D4.7X6 | SR M5X0.5X6-PF | HW 2.5 | PL 16 M6-D5 |
| PICMU 20-6 | SPACER D5.7X6 | SR M6X0.5X6 PF | HW 3.0 | PL 16 M6-D5 |
| PICMU 20-7 | SPACER D6.7X7 | SR M6X0.5X6 PF | HW 3.0 | PL 16 M6-D5 |
| PICMU 20-8 | SR M8X0.5X6.5-PF | HW 4.0 | PL 16 M6-D5 | |
| PICMU 22-4 | SPACER D3.7X6 | SR M5X0.5X6-PF | HW 2.5 | PL 16 M6-D5 |
| PICMU 22-5 | SPACER D4.7X6 | SR M5X0.5X6-PF | HW 2.5 | PL 16 M6-D5 |
| PICMU 22-6 | SPACER D5.7X6 | SR M6X0.5X6 PF | HW 3.0 | PL 16 M6-D5 |
| PICMU 22-7 | SPACER D6.7X7 | SR M6X0.5X6 PF | HW 3.0 | PL 16 M6-D5 |
