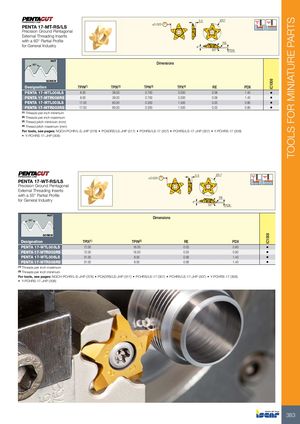

| ENTA 17-MT-RS/LS recision Ground Pentagonal xternal Threading Inserts ith a 60° Partial Profile r General Industry | ±0.025 | Ø17 3.5 RE PDX 60° 4° | |||
| Designation NUT SCREW 60° | TPIN(1) TPIX(2) | Dimensions TPN(3) TPX(4) | RE | PDX | IC1008 |
| PENTA 17-MTL008LS | 8.00 36.00 | 0.700 3.000 | 0.08 | 1.40 | • |
| PENTA 17-MTR008RS | 8.00 36.00 | 0.700 3.000 | 0.08 | 1.40 | • |
| PENTA 17-MTL003LS | 17.00 80.00 | 0.300 1.500 | 0.03 | 0.80 | • |
| PENTA 17-MTR003RS | 17.00 80.00 | 0.300 1.500 | 0.03 | 0.80 | • |
(1) Threads per inch minimum (2) Threads per inch maximum (3) Thread pitch minimum (mm) (4) Thread pitch maximum (mm)
For tools, see pages: NQCH-PCHR/L-S-JHP (378) PCADRS/LS-JHP (317) PCHRS/LS-17 (307) PCHRS/LS-17-JHP (307) Y-PCHRS-17 (308)
- Y-PCHRS-17-JHP (308)
PENTA 17-WT-RS/LS
Precision Ground Pentagonal
External Threading Inserts
with a 55° Partial Profile
for General Industry
NUT 55°
±0.025
Dimensions
3.5 Ø17
RE 4° 55° PDX
SCREW
| Designation | TPIX(1) | TPIN(2) | RE | PDX | |
| PENTA 17-WTL003LS | 72.00 | 16.00 | 0.03 | 0.80 | • |
| PENTA 17-WTR003RS | 72.00 | 16.00 | 0.03 | 0.80 | • |
| PENTA 17-WTL008LS | 31.00 | 8.00 | 0.08 | 1.40 | • |
| PENTA 17-WTR008RS | 31.00 | 8.00 | 0.08 | 1.40 | • |
(1) Threads per inch maximum (2) Threads per inch minimum For tools, see pages: NQCH-PCHR/L-S-JHP (378) PCADRS/LS-JHP (317) PCHRS/LS-17 (307) PCHRS/LS-17-JHP (307) Y-PCHRS-17 (308)
- Y-PCHRS-17-JHP (308)
