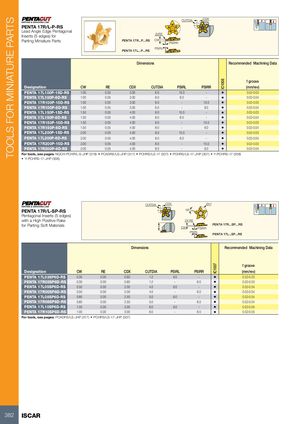

TOOLS FOR MINIATURE PARTS IC1007 IC1008 CUTDIA CDX PENTA 17R/L-P-RS Lead Angle Edge Pentagonal Inserts (5 edges) for 2xRE Parting Miniature Parts PENTA 17R...P...RS CW PSIRR PENTA 17L...P...RS PSIRL Dimensions Recommended Machining Data f groove Designation CW RE CDX CUTDIA PSIRL PSIRR (mm/rev) PENTA 17L100P-15D-RS 1.00 0.05 3.00 6.0 15.0 - • 0.02-0.03 PENTA 17L100P-6D-RS 1.00 0.05 3.00 6.0 6.0 - • 0.02-0.04 PENTA 17R100P-15D-RS 1.00 0.05 3.00 6.0 - 15.0 • 0.02-0.03 PENTA 17R100P-6D-RS 1.00 0.05 3.00 6.0 - 6.0 • 0.02-0.04 PENTA 17L150P-15D-RS 1.50 0.05 4.00 8.0 15.0 - • 0.02-0.03 PENTA 17L150P-6D-RS 1.50 0.05 4.00 8.0 6.0 - • 0.02-0.04 PENTA 17R150P-15D-RS 1.50 0.05 4.00 8.0 - 15.0 • 0.02-0.03 PENTA 17R150P-6D-RS 1.50 0.05 4.00 8.0 - 6.0 • 0.02-0.04 PENTA 17L200P-15D-RS 2.00 0.05 4.00 8.0 15.0 - • 0.02-0.03 PENTA 17L200P-6D-RS 2.00 0.05 4.00 8.0 6.0 - • 0.02-0.04 PENTA 17R200P-15D-RS 2.00 0.05 4.00 8.0 - 15.0 • 0.02-0.03 PENTA 17R200P-6D-RS 2.00 0.05 4.00 8.0 - 6.0 • 0.02-0.04 For tools, see pages: NQCH-PCHR/L-S-JHP (378) • PCADRS/LS-JHP (317) • PCHRS/LS-17 (307) • PCHRS/LS-17-JHP (307) • Y-PCHRS-17 (308) • Y-PCHRS-17-JHP (308) CUTDIA CDX Ø17 PENTA 17R/L-SP-RS 18˚ Pentagonal Inserts (5 edges) with a High Positive Rake 2X RE for Parting Soft Materials 4˚ PENTA 17R...SP...RSCWPSIRR PSIRL PENTA 17L...SP...RS Dimensions Recommended Machining Data f groove Designation CW RE CDX CUTDIA PSIRL PSIRR (mm/rev) PENTA 17L03SP6D-RS 0.30 0.00 0.60 1.2 6.0 - • 0.02-0.03 PENTA 17R03SP6D-RS 0.30 0.00 0.60 1.2 - 6.0 • 0.02-0.03 PENTA 17L05SP6D-RS 0.50 0.00 2.00 4.0 6.0 - • 0.02-0.04 PENTA 17R05SP6D-RS 0.50 0.00 2.00 4.0 - 6.0 • 0.02-0.04 PENTA 17L08SP6D-RS 0.80 0.00 2.50 5.0 6.0 - • 0.02-0.04 PENTA 17R08SP6D-RS 0.80 0.00 2.50 5.0 - 6.0 • 0.02-0.04 PENTA 17L10SP6D-RS 1.00 0.00 3.00 6.0 6.0 - • 0.02-0.05 PENTA 17R10SP6D-RS 1.00 0.00 3.00 6.0 - 6.0 • 0.02-0.05 For tools, see pages: PCADRS/LS-JHP (317) • PCHRS/LS-17-JHP (307) 382 ISCAR
