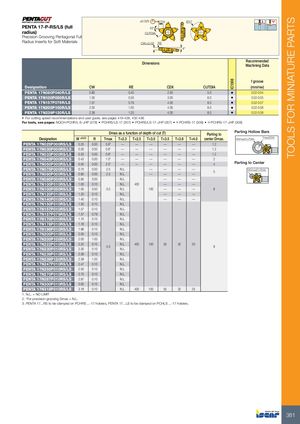

Каталог Iscar обработка канавок 2022 - страница 127
Навигация
Каталог Iscar монолитные концевые фрезы и система multi-master
Фрезерные инструменты Iscar 2026
Каталог Iscar сверла ружейные и для глубокого сверления 2022
Каталог Iscar токарные державки ISO 2022
Каталог Iscar инструмент для обработки алюминиевых колёс
| ENTA 17-P-RS/LS (full adius) recision Grooving Pentagonal Full adius Inserts for Soft Materials | Ø CUTDIA CDX 10° RE 4° ±0.025 CW±0.02 | 17 | ||||
| Dimensions | Recommended Machining Data | |||||
| Designation | CW | RE | CDX | CUTDIA | IC1008 | f groove (mm/rev) |
| PENTA 17N080P040R/LS | 0.80 | 0.40 | 2.50 | 5.0 | • | 0.02-0.04 |
| PENTA 17N100P050R/LS | 1.00 | 0.50 | 3.00 | 6.0 | • | 0.02-0.05 |
| PENTA 17N157P079R/LS | 1.57 | 0.79 | 4.00 | 8.0 | • | 0.02-0.07 |
| PENTA 17N200P100R/LS | 2.00 | 1.00 | 4.00 | 8.0 | • | 0.02-0.08 |
| PENTA 17N239P120R/LS | 2.39 | 1.20 | 4.00 | 8.0 | • | 0.02-0.08 |
- For cutting speed recommendations and user guide, see pages 419-428, 432-436
For tools, see pages: NQCH-PCHR/L-S-JHP (378) PCHRS/LS-17 (307) PCHRS/LS-17-JHP (307) Y-PCHRS-17 (308) Y-PCHRS-17-JHP (308)
| Dma | xasafun | ction of d | epth of c | ut(T) | Parting to | Parting Hollow B | |||||
| Designation | W±0.02 | R | Tmax | T | T | T | T | T | T | center Dmax. | ØDmax(CUTDIA) T |
| PENTA 17N025P000RS/LS | 0.25 | 0.00 | 0.6 | --- | --- | --- | --- | --- | --- | 1.2 | |
| PENTA 17N030P000RS/LS | 0.30 | 0.00 | 0.6 | --- | --- | --- | --- | --- | --- | 1.2 | |
| PENTA 17N033P000RS/LS | 0.33 | 0.00 | 0.6 | --- | --- | --- | --- | --- | --- | 1.2 | |
| PENTA 17N043P000RS/LS | 0.43 | 0.00 | 1.0 | --- | --- | --- | --- | --- | --- | 2 | |
| PENTA 17N050P000RS/LS | 0.50 | 0.00 | 2.0 | --- | --- | --- | --- | --- | --- | 4 | Parting to Center |
| PENTA 17N075P000RS/LS | 0.75 | 0.00 | 2.5 | N.L. | --- | --- | --- | --- | 5 | ØDmax(CUTDI | |
| PENTA 17N080P000RS/LS | 0.80 | 0.00 | 2.5 | N.L. | --- | --- | --- | --- | |||
| PENTA 17N095P000RS/LS | 0.95 | 0.00 | N.L. | --- | --- | --- | |||||
| PENTA 17N100P010RS/LS | 1.00 | 0.10 | N.L. | 400 | --- | --- | --- | ||||
| PENTA 17N100P050RS/LS | 1.00 | 0.50 | 3.0 | N.L. | 100 | --- | --- | --- | 6 | ||
| PENTA 17N120P010RS/LS | 1.20 | 0.10 | N.L. | --- | --- | --- | |||||
| PENTA 17N140P010RS/LS | 1.40 | 0.10 | N.L. | --- | --- | --- | |||||
| PENTA 17N150P010RS/LS | 1.50 | 0.10 | N.L. | ||||||||
| PENTA 17N157P010RS/LS | 1.57 | 0.10 | N.L. | ||||||||
| PENTA 17N157P079RS/LS | 1.57 | 0.79 | N.L. | ||||||||
| PENTA 17N170P010RS/LS | 1.70 | 0.10 | N.L. | ||||||||
| PENTA 17N178P010RS/LS | 1.78 | 0.10 | N.L. | ||||||||
| PENTA 17N196P010RS/LS | 1.96 | 0.10 | N.L. | ||||||||
| PENTA 17N200P010RS/LS | 2.00 | 0.10 | N.L. | ||||||||
| PENTA 17N200P100RS/LS | 2.00 | 1.00 | N.L. | ||||||||
| PENTA 17N222P010RS/LS | 2.22 | 0.10 | N.L. | 400 | 100 | 55 | 32 | 20 | |||
| PENTA 17N230P010RS/LS | 2.30 | 0.10 | 4.0 | N.L. | 8 | ||||||
| PENTA 17N239P010RS/LS | 2.39 | 0.10 | N.L. | ||||||||
| PENTA 17N239P120RS/LS | 2.39 | 1.20 | N.L. | ||||||||
| PENTA 17N247P010RS/LS | 2.47 | 0.10 | N.L. | ||||||||
| PENTA 17N250P010RS/LS | 2.50 | 0.10 | N.L. | ||||||||
| PENTA 17N270P010RS/LS | 2.70 | 0.10 | N.L. | ||||||||
| PENTA 17N287P010RS/LS | 2.87 | 0.10 | N.L. | ||||||||
| PENTA 17N300P010RS/LS | 3.00 | 0.10 | N.L. | ||||||||
| PENTA 17N318P010RS/LS | 3.18 | 0.10 | N.L. | 400 | 100 | 55 | 32 | 25 |
1. N.L. = NO LIMIT 2. *For precision grooving Dmax = N.L. 3. PENTA 17...RS to be clamped on PCHRS ...-17 holders, PENTA 17...LS to be clamped on PCHLS ...-17 holders.
