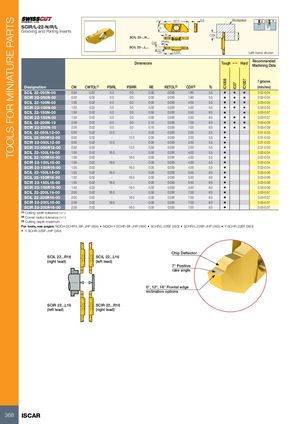

TOOLS FOR MINIATURE PARTS IC1008 IC07 IC1007 7° 22.0 3.0 Workpiece SCIR/L-22-N/R/L 7.0 Grooving and Parting Inserts TcSCIL 22-...N... CDX Tc CW PSIRL SCIL 22-...L... RE CDX Left-hand shown Dimensions Tough 1  Hard RecommendedMachining Data f groove Designation CW CWTOL(1) PSIRL PSIRR RE RETOL(2) CDX(3) Tc (mm/rev) SCIL 22-050N-00 0.50 0.02 0.0 0.0 0.00 0.030 1.80 5.5 • • • 0.02-0.04 SCIR 22-050N-00 0.50 0.02 0.0 0.0 0.00 0.030 1.80 5.5 • • • 0.02-0.04 SCIL 22-100N-00 1.00 0.02 0.0 0.0 0.00 0.030 4.00 5.5 • • • 0.03-0.05 SCIR 22-100N-00 1.00 0.02 0.0 0.0 0.00 0.030 4.00 5.5 • • • 0.03-0.05 SCIL 22-150N-00 1.50 0.02 0.0 0.0 0.00 0.030 5.50 8.0 • • 0.03-0.07 SCIR 22-150N-00 1.50 0.02 0.0 0.0 0.00 0.030 5.50 8.0 • • • 0.03-0.07 SCIL 22-200N-10 2.00 0.02 0.0 0.0 0.10 0.030 7.00 8.0 • • • 0.03-0.09 SCIR 22-200N-10 2.00 0.02 0.0 0.0 0.10 0.030 7.00 8.0 • • • 0.03-0.09 SCIL 22-050L12-00 0.50 0.02 12.0 - 0.00 0.030 2.00 5.5 • 0.01-0.03 SCIL 22-050R12-00 0.50 0.02 - 12.0 0.00 0.030 2.00 5.5 • 0.01-0.03 SCIR 22-050L12-00 0.50 0.02 12.0 - 0.00 0.030 2.00 5.5 • 0.01-0.03 SCIR 22-050R12-00 0.50 0.02 - 12.0 0.00 0.030 2.00 5.5 • 0.01-0.03 SCIL 22-100L16-00 1.00 0.02 16.0 - 0.00 0.030 4.00 5.5 • 0.02-0.04 SCIL 22-100R16-00 1.00 0.02 - 16.0 0.00 0.030 4.00 5.5 • 0.02-0.04 SCIR 22-100L16-00 1.00 0.02 16.0 - 0.00 0.030 4.00 5.5 • 0.02-0.04 SCIR 22-100R16-00 1.00 0.02 - 16.0 0.00 0.030 4.00 5.5 • 0.02-0.04 SCIL 22-150L16-00 1.50 0.02 16.0 - 0.00 0.030 5.50 8.0 • 0.03-0.06 SCIL 22-150R16-00 1.50 0.02 - 16.0 0.00 0.030 5.50 8.0 • 0.03-0.06 SCIR 22-150L16-00 1.50 0.02 16.0 - 0.00 0.030 5.50 8.0 • 0.03-0.06 SCIR 22-150R16-00 1.50 0.02 - 16.0 0.00 0.030 5.50 8.0 • 0.03-0.06 SCIL 22-200L16-00 2.00 0.02 16.0 - 0.00 0.030 7.00 8.0 • 0.03-0.07 SCIL 22-200R16-00 2.00 0.02 - 16.0 0.00 0.030 7.00 8.0 • 0.03-0.07 SCIR 22-200L16-00 2.00 0.02 16.0 - 0.00 0.030 7.00 8.0 • 0.03-0.07 SCIR 22-200R16-00 2.00 0.02 - 16.0 0.00 0.030 7.00 8.0 • 0.03-0.07 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: NQCH-SCHR/L-BF-JHP (364) • NQCH-Y-SCHR-BF-JHP (364) • SCHR/L-22BF (363) • SCHR/L-22BF-JHP (363) • Y-SCHR-22BF (363) • Y-SCHR-22BF-JHP (364) Chip Deflector SCIL 22...R16 SCIL 22...L16 (right lead) (left lead) 7° Positive rake angle 0°, 12°, 16° Frontal edge inclination options SCIR 22...L16 SCIR 22...R16 (left lead) (right lead) 368 ISCAR
