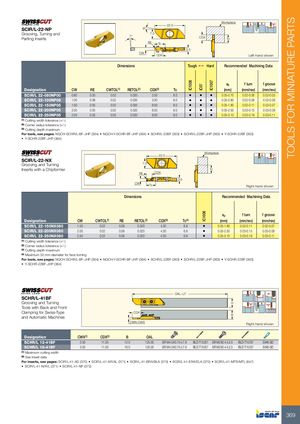

TOOLS FOR MINIATURE PARTS
Workpiece
22.0
SCIR/L-22-NP 9°
Grooving, Turning and 7°
7.0
CDX
Parting Inserts Tc
RE Tc
3.0
CW
CDX Left-hand shown

Dimensions Tough 1 Hard Recommended Machining Data


IC1008


IC1007
ap f turn f groove


IC07
Designation CW RE CWTOL(1) RETOL(2) CDX(3) Tc (mm) (mm/rev) (mm/rev)
SCIR/L 22-080NP00 0.80 0.00 0.02 0.020 2.50 8.0 • • • 0.05-0.70 0.02-0.06 0.02-0.05
SCIR/L 22-100NP08 1.00 0.08 0.02 0.020 3.00 8.0 • • • 0.05-0.80 0.02-0.08 0.02-0.06
SCIR/L 22-150NP05 1.50 0.05 0.02 0.020 6.00 8.0 • • • 0.05-1.80 0.02-0.11 0.02-0.07
SCIR/L 22-200NP05 2.00 0.05 0.02 0.020 6.00 8.0 • • • 0.05-2.50 0.03-0.15 0.03-0.09
SCIR/L 22-250NP05 2.50 0.05 0.02 0.020 6.00 8.0 • • • 0.05-3.10 0.03-0.19 0.03-0.11
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: NQCH-SCHR/L-BF-JHP (364) • NQCH-Y-SCHR-BF-JHP (364) • SCHR/L-22BF (363) • SCHR/L-22BF-JHP (363) • Y-SCHR-22BF (363)
• Y-SCHR-22BF-JHP (364)

Workpiece
22.0
SCIR/L-22-NX
7.0
Grooving and Turning
Inserts with a Chipformer Tc
RE CDX
3.0
CW
Tc Right-hand shown

Dimensions Recommended Machining Data
IC1008
ap f turn f groove
Designation CW CWTOL(1) RE RETOL(2) CDX(3) Tc(4) (mm) (mm/rev) (mm/rev)
SCIR/L 22-150NX080 1.50 0.02 0.08 0.020 4.30 6.8 • 0.05-1.80 0.02-0.11 0.02-0.07
SCIR/L 22-200NX080 2.00 0.02 0.08 0.020 4.30 6.8 • 0.05-2.50 0.03-0.15 0.03-0.09
SCIR/L 22-250NX080 2.50 0.02 0.08 0.020 4.30 6.8 • 0.05-3.10 0.03-0.19 0.03-0.11
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
(4) Maximum 32 mm diameter for face turning
For tools, see pages: NQCH-SCHR/L-BF-JHP (364) • NQCH-Y-SCHR-BF-JHP (364) • SCHR/L-22BF (363) • SCHR/L-22BF-JHP (363) • Y-SCHR-22BF (363)
• Y-SCHR-22BF-JHP (364)


OAL=LF
SCHR/L-41BF
Grooving and Turning H
Tools with Back and Front
Clamping for Swiss-Type CDX
B
and Automatic Machines
CWN-CWX
Right-hand shown

Designation CWX(1) CDX(2) B OAL
SCHR/L 12-41BF 3.00 11.00 12.0 125.00 SR M4.5X0.75-L7.9 BLD T15/S7 SR M2X0.4-L3.5 BLD T10/S7 SW6-SD
SCHR/L 16-41BF 3.00 11.00 16.0 125.00 SR M4.5X0.75-L7.9 BLD T15/S7 SR M2X0.4-L3.5 BLD T10/S7 SW6-SD
(1) Maximum cutting width
(2) See insert data
For inserts, see pages: SCIR/L-41-AD (370) • SCIR/L-41-AR/AL (371) • SCIR/L-41-BRA/BLA (370) • SCIR/L-41-ERA/ELA (370) • SCIR/L-41-MTR/MTL (647)
• SCIR/L-41-N/R/L (371) • SCIR/L-41-NP (372)


369
