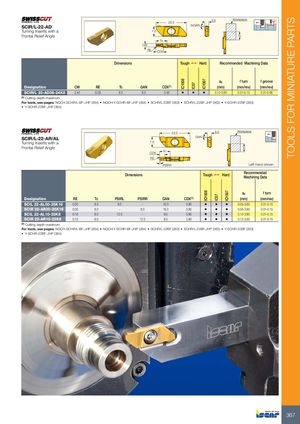

Каталог Iscar обработка канавок 2022 - страница 113

IC1008 IC07 IC1007IC1008 IC07 IC1007 TOOLS FOR MINIATURE PARTS 22.0 3.0 Workpiece SCIR/L-22-AD 2xGAN Turning Inserts with a 7.0 Frontal Relief Angle Tc Tc CW RE CDX Dimensions Tough 1  Hard Recommended Machining Data ap f turn f groove Designation CW RE Tc GAN CDX(1) (mm) (mm/rev) (mm/rev) SCIR/L 22-AD08-24K8 2.40 0.08 8.0 8.0 5.50 • • • 0.12-3.80 0.01-0.15 0.01-0.06 (1) Cutting depth maximum For tools, see pages: NQCH-SCHR/L-BF-JHP (364) • NQCH-Y-SCHR-BF-JHP (364) • SCHR/L-22BF (363) • SCHR/L-22BF-JHP (363) • Y-SCHR-22BF (363) • Y-SCHR-22BF-JHP (364) 22.0 3.0 Workpiece SCIR/L-22-AR/AL GAN Turning Inserts with a 7.0 Frontal Relief Angle Tc CDX Tc RE PSIRR Left-hand shown Dimensions Tough 1  Hard RecommendedMachining Data ap f turn Designation RE Tc PSIRL PSIRR GAN CDX(1) (mm) (mm/rev) SCIL 22-AL00-25K16 0.00 8.0 8.0 - 16.0 3.80 • • • 0.05-3.80 0.01-0.15 SCIR 22-AR00-25K16 0.00 8.0 - 8.0 16.0 3.80 • • • 0.05-3.80 0.01-0.15 SCIL 22-AL10-25K8 0.10 8.0 12.0 - 8.0 3.80 • • • 0.12-3.80 0.01-0.15 SCIR 22-AR10-25K8 0.10 8.0 - 12.0 8.0 3.80 • • • 0.12-3.80 0.01-0.15 (1) Cutting depth maximum For tools, see pages: NQCH-SCHR/L-BF-JHP (364) • NQCH-Y-SCHR-BF-JHP (364) • SCHR/L-22BF (363) • SCHR/L-22BF-JHP (363) • Y-SCHR-22BF (363) • Y-SCHR-22BF-JHP (364) 367
