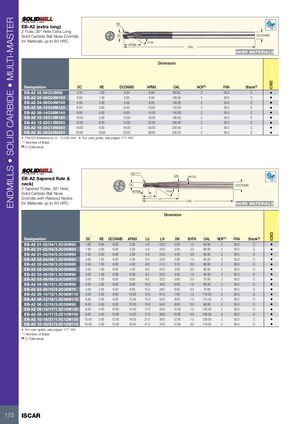

Каталог Iscar монолитные фрезы 2022 - страница 80

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
RE
EB-A2 (extra long)
2 Flute, 30° Helix Extra Long
Solid Carbide Ball Nose Endmills DC DCONMS
for Materials up to 65 HRC FHA
APMX
OAL
HARD MATERIALS
Dimensions


IC903
Designation DC RE DCONMS APMX OAL NOF(1) FHA Shank(2)
EB-A2 02-06C03M80 2.00 1.00 3.00 6.00 80.00 2 30.0 C •
EB-A2 03-08C03M100 3.00 1.50 3.00 8.00 100.00 2 30.0 C •
EB-A2 04-08C04M100 4.00 2.00 4.00 8.00 100.00 2 30.0 C •
EB-A2 06-10C06M120 6.00 3.00 6.00 10.00 120.00 2 30.0 C •
EB-A2 08-14C08M140 8.00 4.00 8.00 14.00 140.00 2 30.0 C •
EB-A2 10-18C10M180 10.00 5.00 10.00 18.00 180.00 2 30.0 C •
EB-A2 12-22C12M200 12.00 6.00 12.00 22.00 200.00 2 30.0 C •
EB-A2 16-30C16M250 16.00 8.00 16.00 30.00 250.00 2 30.0 C •
EB-A2 20-38C20M250 20.00 10.00 20.00 38.00 250.00 2 30.0 C •
• The DC tolerance is: 0 - -0.030 mm • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical


RE±0.01
DN BHTA
EB-A2 (tapered flute &
neck) DC DCONMS
2 Tapered Flutes, 30° Helix
APMX FHA
Solid Carbide Ball Nose
LU
Endmills with Relieved Necks LH
OAL
for Materials up to 65 HRC HARD MATERIALS
Dimensions


IC903
Designation DC RE DCONMS APMX LU LH DN BHTA OAL NOF(1) FHA Shank(2)
EB-A2 01-02/04/1.5C06M60 1.00 0.50 6.00 2.00 4.0 23.0 2.00 1.5 60.00 2 30.0 C •
EB-A2 01-02/04/3.0C06M80 1.00 0.50 6.00 2.00 4.0 42.0 5.00 3.0 80.00 2 30.0 C •
EB-A2 01-02/04/5.0C06M60 1.00 0.50 6.00 2.00 4.0 23.0 4.30 5.0 60.00 2 30.0 C •
EB-A2 02-04/06/1.5C06M60 2.00 1.00 6.00 4.00 6.0 23.0 2.90 1.5 60.00 2 30.0 C •
EB-A2 02-04/06/3.0C06M80 2.00 1.00 6.00 4.00 6.0 41.0 5.70 3.0 80.00 2 30.0 C •
EB-A2 02-04/06/5.0C06M60 2.00 1.00 6.00 4.00 6.0 23.0 5.00 5.0 60.00 2 30.0 C •
EB-A2 03-06/08/1.5C06M90 3.00 1.50 6.00 6.00 8.0 52.0 5.30 1.5 90.00 2 30.0 C •
EB-A2 03-06/08/3.0C06M70 3.00 1.50 6.00 6.00 8.0 32.0 5.60 3.0 70.00 2 30.0 C •
EB-A2 04-08/10/1.5C06M90 4.00 2.00 6.00 8.00 10.0 49.0 6.00 1.5 90.00 2 30.0 C •
EB-A2 04-08/10/3.0C06M70 4.00 2.00 6.00 8.00 10.0 28.0 6.00 3.0 70.00 2 30.0 C •
EB-A2 05-10/12/1.5C08M110 5.00 2.50 8.00 10.00 12.0 61.0 7.60 1.5 110.00 2 30.0 C •
EB-A2 06-12/15/1.5C08M110 6.00 3.00 8.00 12.00 15.0 53.0 8.00 1.5 110.00 2 30.0 C •
EB-A2 06-12/15/3.0C08M90 6.00 3.00 8.00 12.00 15.0 34.0 8.00 3.0 90.00 2 30.0 C •
EB-A2 08-14/17/1.5C10M120 8.00 4.00 10.00 14.00 17.0 55.0 10.00 1.5 120.00 2 30.0 C •
EB-A2 08-14/17/3.0C10M100 8.00 4.00 10.00 14.00 17.0 36.0 10.00 3.0 100.00 2 30.0 C •
EB-A2 10-18/21/1.5C12M130 10.00 5.00 12.00 18.00 21.0 59.0 12.00 1.5 130.00 2 30.0 C •
EB-A2 10-18/21/3.0C12M110 10.00 5.00 12.00 18.00 21.0 40.0 12.00 3.0 110.00 2 30.0 C •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical


172 ISCAR
