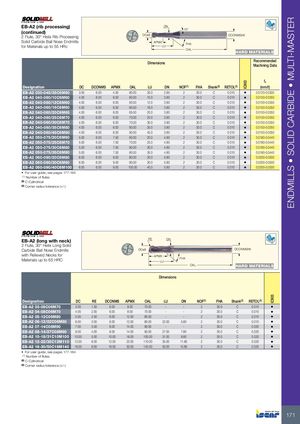

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EB-A2 (rib processing) DN
15°
(continued)
DCe8 DCONMSh6
2 Flute, 30° Helix Rib Processing
Solid Carbide Ball Nose Endmills APMX
FHA
for Materials up to 55 HRc LU
OAL
HARD MATERIALS
Recommended
Dimensions
Machining Data

fz


IC903
Designation DC DCONMS APMX OAL LU DN NOF(1) FHA Shank(2) RETOL(3) (mm/t)
EB-A2 030-045/35C6M80 3.00 6.00 4.50 80.00 35.0 2.85 2 30.0 C 0.010 • 0.0120-0.0300
EB-A2 040-060/10C6M60 4.00 6.00 6.00 60.00 10.0 3.80 2 30.0 C 0.010 • 0.0150-0.0350
EB-A2 040-060/12C6M60 4.00 6.00 6.00 60.00 12.0 3.80 2 30.0 C 0.010 • 0.0150-0.0350
EB-A2 040-060/16C6M60 4.00 6.00 6.00 60.00 16.0 3.80 2 30.0 C 0.010 • 0.0150-0.0350
EB-A2 040-060/20C6M65 4.00 6.00 6.00 65.00 20.0 3.80 2 30.0 C 0.010 • 0.0150-0.0350
EB-A2 040-060/25C6M70 4.00 6.00 6.00 70.00 25.0 3.80 2 30.0 C 0.010 • 0.0150-0.0350
EB-A2 040-060/30C6M70 4.00 6.00 6.00 70.00 30.0 3.80 2 30.0 C 0.010 • 0.0150-0.0350
EB-A2 040-060/35C6M80 4.00 6.00 6.00 80.00 35.0 3.80 2 30.0 C 0.010 • 0.0150-0.0350
EB-A2 040-060/45C6M90 4.00 6.00 6.00 90.00 45.0 3.80 2 30.0 C 0.010 • 0.0150-0.0350
EB-A2 050-075/20C6M60 5.00 6.00 7.50 60.00 20.0 4.80 2 30.0 C 0.010 • 0.0180-0.0440
EB-A2 050-075/25C6M70 5.00 6.00 7.50 70.00 25.0 4.80 2 30.0 C 0.010 • 0.0180-0.0440
EB-A2 050-075/30C6M80 5.00 6.00 7.50 80.00 30.0 4.80 2 30.0 C 0.010 • 0.0180-0.0440
EB-A2 050-075/35C6M80 5.00 6.00 7.50 80.00 35.0 4.80 2 30.0 C 0.010 • 0.0180-0.0440
EB-A2 060-090/20C6M80 6.00 6.00 9.00 80.00 20.0 5.80 2 30.0 C 0.010 • 0.0200-0.0500
EB-A2 060-090/30C6M90 6.00 6.00 9.00 90.00 30.0 5.80 2 30.0 C 0.010 • 0.0200-0.0500
EB-A2 060-090/40C6M100 6.00 6.00 9.00 100.00 40.0 5.80 2 30.0 C 0.010 • 0.0200-0.0500
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)


RE DN
EB-A2 (long with neck)
2 Flute, 30° Helix Long Solid
Carbide Ball Nose Endmills DCe8 DCONMSh6
with Relieved Necks for APMX
FHA
Materials up to 65 HRC LU
OAL HARD MATERIALS
Dimensions
IC903


Designation DC RE DCONMS APMX OAL LU DN NOF(1) FHA Shank(2) RETOL(3)
EB-A2 03-08C06M70 3.00 1.50 6.00 8.00 70.00 - - 2 30.0 C 0.010 •
EB-A2 04-08C06M70 4.00 2.00 6.00 8.00 70.00 - - 2 30.0 C 0.010 •
EB-A2 05-12C06M80 5.00 2.50 6.00 12.00 80.00 - - 2 30.0 C 0.010 •
EB-A2 06-12/22C06M80 6.00 3.00 6.00 12.00 80.00 22.00 5.80 2 30.0 C 0.010 •
EB-A2 07-14C08M90 7.00 3.50 8.00 14.00 90.00 - - 2 30.0 C 0.020 •
EB-A2 08-14/27C08M90 8.00 4.00 8.00 14.00 90.00 27.00 7.80 2 30.0 C 0.020 •
EB-A2 10-18/31C10M100 10.00 5.00 10.00 18.00 100.00 31.00 9.80 2 30.0 C 0.020 •
EB-A2 12-22/35C12M110 12.00 6.00 12.00 22.00 110.00 35.00 11.80 2 30.0 C 0.020 •
EB-A2 16-30/50C16M140 16.00 8.00 16.00 30.00 140.00 50.00 15.80 2 30.0 C 0.020 •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)


171
