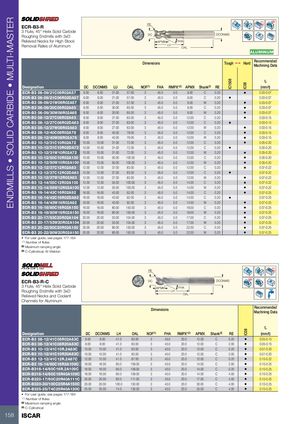

ENDMILLS • SOLID CARBIDE • MULTI-MASTER Rd° RE ECR-B3-R 3 Flute, 45° Helix Solid Carbide DC DCONMS Roughing Endmills with 3xD Relieved Necks for High Stock APMX FHA Removal Rates of Aluminum LU OAL ALUMINUM Recommended Dimensions Tough 1 Hard Machining Data fz IC1508 IC08 Designation DC DCONMS LU OAL NOF(1) FHA RMPX°(2) APMX Shank(3) RE (mm/t) ECR-B3 06-09/21C06R02A57 6.00 6.00 21.00 57.00 3 45.0 5.0 9.00 C 0.20 • 0.03-0.07 ECR-B3 06-09/21C06R02DA57 6.00 6.00 21.00 57.00 3 45.0 5.0 9.00 C 0.20 • 0.03-0.07 ECR-B3 06-09/21W06R02A57 6.00 6.00 21.00 57.00 3 45.0 5.0 9.00 W 0.20 • 0.03-0.07 ECR-B3 06-09/30C06R02A65 6.00 6.00 30.00 65.00 3 45.0 5.0 9.00 C 0.20 • 0.03-0.07 ECR-B3 06-09/30W06R02A65 6.00 6.00 30.00 65.00 3 45.0 5.0 9.00 W 0.20 • 0.03-0.07 ECR-B3 08-12/27C08R02A63 8.00 8.00 27.00 63.00 3 45.0 5.0 12.00 C 0.20 • 0.03-0.15 ECR-B3 08-12/27C08R02DA63 8.00 8.00 27.00 63.00 3 45.0 5.0 12.00 C 0.20 • 0.03-0.15 ECR-B3 08-12/27W08R02A63 8.00 8.00 27.00 63.00 3 45.0 5.0 12.00 W 0.20 • 0.03-0.15 ECR-B3 08-12/40C08R02A78 8.00 8.00 40.00 78.00 3 45.0 5.0 12.00 C 0.20 • 0.03-0.15 ECR-B3 08-12/40W08R02A78 8.00 8.00 40.00 78.00 3 45.0 5.0 12.00 W 0.20 • 0.03-0.15 ECR-B3 10-12/31C10R02A72 10.00 10.00 31.00 72.00 3 45.0 5.0 12.00 C 0.20 • 0.05-0.20 ECR-B3 10-12/31C10R02DA72 10.00 10.00 31.00 72.00 3 45.0 5.0 12.00 C 0.20 • 0.05-0.20 ECR-B3 10-12/31W10R02A72 10.00 10.00 31.00 72.00 3 45.0 5.0 12.00 W 0.20 • 0.05-0.20 ECR-B3 10-12/50C10R02A100 10.00 10.00 50.00 100.00 3 45.0 5.0 12.00 C 0.20 • 0.05-0.20 ECR-B3 10-12/50W10R02A100 10.00 10.00 50.00 100.00 3 45.0 5.0 12.00 W 0.20 • 0.05-0.20 ECR-B3 12-12/37C12R02A83 12.00 12.00 37.00 83.00 3 45.0 5.0 12.00 C 0.20 • 0.07-0.22 ECR-B3 12-12/37C12R02DA83 12.00 12.00 37.00 83.00 3 45.0 5.0 12.00 C 0.20 • 0.07-0.22 ECR-B3 12-12/37W12R02A83 12.00 12.00 37.00 83.00 3 45.0 5.0 12.00 W 0.20 • 0.07-0.22 ECR-B3 12-14/55C12R02A100 12.00 12.00 55.00 100.00 3 45.0 5.0 14.00 C 0.20 • 0.07-0.22 ECR-B3 12-14/55W12R02A100 12.00 12.00 55.00 100.00 3 45.0 5.0 14.00 W 0.20 • 0.07-0.22 ECR-B3 16-14/43C16R02A92 16.00 16.00 43.00 92.00 3 45.0 5.0 14.00 C 0.20 • 0.07-0.25 ECR-B3 16-14/43C16R02DA92 16.00 16.00 43.00 92.00 3 45.0 5.0 14.00 C 0.20 • 0.07-0.25 ECR-B3 16-14/43W16R02A92 16.00 16.00 43.00 92.00 3 45.0 5.0 14.00 W 0.20 • 0.07-0.25 ECR-B3 16-18/80C16R02A150 16.00 16.00 80.00 150.00 3 45.0 5.0 18.00 C 0.20 • 0.07-0.25 ECR-B3 16-18/80W16R02A150 16.00 16.00 80.00 150.00 3 45.0 5.0 18.00 W 0.20 • 0.07-0.25 ECR-B3 20-17/53C20R02A104 20.00 20.00 53.00 104.00 3 45.0 5.0 17.00 C 0.20 • 0.07-0.25 ECR-B3 20-17/53W20R02A104 20.00 20.00 53.00 104.00 3 45.0 5.0 17.00 W 0.20 • 0.07-0.25 ECR-B3 20-22/80C20R02A150 20.00 20.00 80.00 150.00 3 45.0 5.0 22.00 C 0.20 • 0.07-0.25 ECR-B3 20-22/80W20R02A150 20.00 20.00 80.00 150.00 3 45.0 5.0 22.00 W 0.20 • 0.07-0.25 • For user guide, see pages 177-184 (1) Number of flutes (2) Maximum ramping angle (3) C-Cylindrical, W-Weldon Rd° RE ECR-B3-R-C DC DCONMS 3 Flute, 45° Helix Solid Carbide APMX FHA Roughing Endmills with 3xD LH OAL Relieved Necks and Coolant Channels for Aluminum Recommended Dimensions Machining Data fz IC08 Designation DC DCONMS LH OAL NOF(1) FHA RMPX°(2) APMX Shank(3) RE (mm/t) ECR-B3 08-12/41C08R02A83C 8.00 8.00 41.0 83.00 3 45.0 20.0 12.00 C 0.20 • 0.05-0.15 ECR-B3 08-12/41C08R20A83C 8.00 8.00 41.0 83.00 3 45.0 20.0 12.00 C 2.00 • 0.05-0.15 ECR-B3 10-12/41C10R.2A83C 10.00 10.00 41.0 83.00 3 45.0 20.0 12.00 C 0.20 • 0.07-0.20 ECR-B3 10-12/41C10R20A83C 10.00 10.00 41.0 83.00 3 45.0 20.0 12.00 C 2.00 • 0.07-0.20 ECR-B3 12-12/41C12R.2A87C 12.00 12.00 41.0 87.00 3 45.0 20.0 12.00 C 0.20 • 0.10-0.22 ECR-B3 16-14/60C16R2A109C 16.00 16.00 60.0 109.00 3 45.0 20.0 14.00 C 2.00 • 0.10-0.25 ECR-B316-14/60C16R.2A109C 16.00 16.00 60.0 109.00 3 45.0 20.0 14.00 C 0.20 • 0.10-0.25 ECR-B316-14/60C16R40A109C 16.00 16.00 60.0 109.00 3 45.0 20.0 14.00 C 4.00 • 0.10-0.25 ECR-B320-17/60C20R40A111C 20.00 20.00 60.0 111.00 3 45.0 20.0 17.00 C 4.00 • 0.10-0.25 ECR-B320-30/100C25R4A150C 20.00 20.00 100.0 150.00 3 45.0 20.0 30.00 C 4.00 • 0.10-0.25 ECR-B325-25/74C25R40A130C 25.00 25.00 74.0 130.00 3 45.0 20.0 25.00 C 4.00 • 0.10-0.25 • For user guide, see pages 177-184 (1) Number of flutes (2) Maximum ramping angle (3) C-Cylindrical 158 ISCAR
