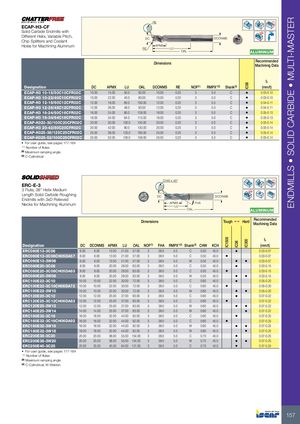

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
RE Rd°
ECAP-H3-CF
Solid Carbide Endmills with
Different Helix, Variable Pitch, DCONMS
DC
Chip Splitters and Coolant
Holes for Machining Aluminum APMX
RE LU
OAL ALUMINUM
Recommended
Dimensions
Machining Data
fz
IC08
Designation DC APMX LU OAL DCONMS RE NOF(1) RMPX°(2) Shank(3) (mm/t)
ECAP-H3 10-15/50C10CFR02C 10.00 15.00 50.0 92.00 10.00 0.20 3 5.0 C • 0.03-0.10
ECAP-H3 10-22/40C10CFR02C 10.00 22.00 40.0 80.00 10.00 0.20 3 5.0 C • 0.03-0.10
ECAP-H3 12-18/60C12CFR02C 12.00 18.00 60.0 100.00 12.00 0.20 3 5.0 C • 0.04-0.11
ECAP-H3 12-26/48C12CFR02C 12.00 26.00 48.0 93.00 12.00 0.20 3 5.0 C • 0.04-0.11
ECAP-H3 16-24/80C16CFR02C 16.00 24.00 80.0 128.00 16.00 0.20 3 5.0 C • 0.05-0.13
ECAP-H3 16-34/64C16CFR02C 16.00 34.00 64.0 115.00 16.00 0.20 3 5.0 C • 0.05-0.13
ECAP-H320-30/100C20CFR02C 20.00 30.00 100.0 150.00 20.00 0.20 3 5.0 C • 0.05-0.14
ECAP-H3 20-42/80C20CFR02C 20.00 42.00 80.0 130.00 20.00 0.20 3 5.0 C • 0.05-0.14
ECAP-H325-38/125C25CFR02C 25.00 38.00 125.0 185.00 25.00 0.20 3 5.0 C • 0.05-0.14
ECAP-H325-52/100C25CFR02C 25.00 52.00 100.0 158.00 25.00 0.20 3 5.0 C • 0.05-0.14
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
CHW x 45° Rd°
ERC-E-3
3 Flute, 38° Helix Medium
Length Solid Carbide Roughing DC DCONMS
Endmills with 3xD Relieved
APMX FHA
Necks for Machining Aluminum LU
OAL ALUMINUM
Recommended
Dimensions Tough 1 Hard
Machining Data
fz
IC1508
IC300
IC08
Designation DC DCONMS APMX LU OAL NOF(1) FHA RMPX°(2) Shank(3) CHW KCH (mm/t)
ERC060E13-3C06 6.00 6.00 13.00 21.00 57.00 3 38.0 5.0 C 0.50 45.0 • 0.03-0.07
ERC060E13-3C06CH05DA57 6.00 6.00 13.00 21.00 57.00 3 38.0 5.0 C 0.50 45.0 • 0.03-0.07
ERC060E13-3W06 6.00 6.00 13.00 21.00 57.00 3 38.0 5.0 W 0.50 45.0 • • 0.03-0.07
ERC080E20-3C08 8.00 8.00 20.00 28.00 63.00 3 38.0 5.0 C 0.50 45.0 • 0.03-0.15
ERC080E20-3C08CH05DA63 8.00 8.00 20.00 28.00 63.00 3 38.0 5.0 C 0.50 45.0 • 0.03-0.15
ERC080E20-3W08 8.00 8.00 20.00 28.00 63.00 3 38.0 5.0 W 0.50 45.0 • • 0.03-0.15
ERC100E22-3C10 10.00 10.00 22.00 30.00 72.00 3 38.0 5.0 C 0.60 45.0 • 0.05-0.20
ERC100E22-3C10CH06DA72 10.00 10.00 22.00 30.00 72.00 3 38.0 5.0 C 0.60 45.0 • 0.05-0.20
ERC100E22-3W10 10.00 10.00 22.00 30.00 72.00 3 38.0 5.0 W 0.60 45.0 • • 0.05-0.20
ERC120E25-3C12 12.00 12.00 25.00 37.00 83.00 3 38.0 5.0 C 0.60 45.0 • 0.07-0.22
ERC120E25-3C12CH06DA83 12.00 12.00 25.00 37.00 83.00 3 38.0 5.0 C 0.60 45.0 • 0.07-0.22
ERC120E25-3W12 12.00 12.00 25.00 37.00 83.00 3 38.0 5.0 W 0.60 45.0 • • 0.07-0.22
ERC140E25-3W14 14.00 14.00 25.00 37.00 83.00 3 38.0 5.0 W 0.60 45.0 • 0.07-0.22
ERC160E32-3C16 16.00 16.00 32.00 44.00 92.00 3 38.0 5.0 C 0.60 45.0 • 0.07-0.25
ERC160E32-3C16CH06DA92 16.00 16.00 32.00 44.00 92.00 3 38.0 5.0 C 0.60 45.0 • 0.07-0.25
ERC160E32-3W16 16.00 16.00 32.00 44.00 92.00 3 38.0 5.0 W 0.60 45.0 • • 0.07-0.25
ERC180E32-3W18 18.00 18.00 32.00 44.00 92.00 3 38.0 5.0 W 0.60 45.0 • 0.07-0.25
ERC200E38-3C20 20.00 20.00 38.00 55.00 104.00 3 38.0 5.0 C 0.70 45.0 • 0.07-0.25
ERC200E38-3W20 20.00 20.00 38.00 55.00 104.00 3 38.0 5.0 W 0.70 45.0 • • 0.07-0.25
ERC250E45-3C25 25.00 25.00 45.00 64.00 121.00 3 38.0 5.0 C 0.70 45.0 • 0.07-0.25
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
157
