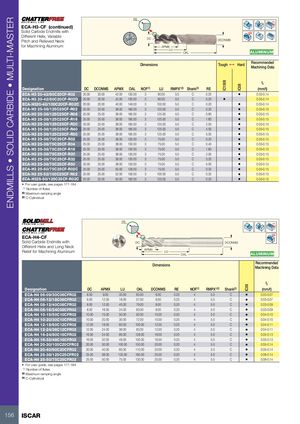

ENDMILLS • SOLID CARBIDE • MULTI-MASTER RE Rd° ECA-H3-CF (continued) Solid Carbide Endmills with Different Helix, Variable DC Pitch and Relieved Neck DCONMS for Machining Aluminum APMX LU OAL ALUMINUM Recommended Dimensions Tough 1 Hard Machining Data fz IC1508 IC08 Designation DC DCONMS APMX OAL NOF(1) LU RMPX°(2) Shank(3) RE (mm/t) ECA-H3 20-42/80C20CF-R02 20.00 20.00 42.00 130.00 3 80.00 5.0 C 0.20 • 0.05-0.14 ECA-H3 20-42/80C20CF-R02D 20.00 20.00 42.00 130.00 3 80.00 5.0 C 0.20 • 0.05-0.14 ECA-H320-40/100C20CF-R02C 20.00 20.00 40.00 149.00 3 100.00 5.0 C 0.20 • 0.05-0.14 ECA-H3 25-38/125C25CF-R02 25.00 25.00 38.00 185.00 3 125.00 5.0 C 0.20 • 0.05-0.15 ECA-H3 25-38/125C25CF-R08 25.00 25.00 38.00 185.00 3 125.00 5.0 C 0.80 • 0.05-0.15 ECA-H3 25-38/125C25CF-R16 25.00 25.00 38.00 185.00 3 125.00 5.0 C 1.60 • 0.05-0.15 ECA-H3 25-38/125C25CF-R20 25.00 25.00 38.00 185.00 3 125.00 5.0 C 2.00 • 0.05-0.15 ECA-H3 25-38/125C25CF-R40 25.00 25.00 38.00 185.00 3 125.00 5.0 C 4.00 • 0.05-0.15 ECA-H3 25-38/125C25CF-R50 25.00 25.00 38.00 185.00 3 125.00 5.0 C 5.00 • 0.05-0.15 ECA-H3 25-38/75C25CF-R02 25.00 25.00 38.00 130.00 3 75.00 5.0 C 0.20 • 0.05-0.15 ECA-H3 25-38/75C25CF-R04 25.00 25.00 38.00 130.00 3 75.00 5.0 C 0.40 • 0.05-0.15 ECA-H3 25-38/75C25CF-R16 25.00 25.00 38.00 130.00 3 75.00 5.0 C 1.60 • 0.05-0.15 ECA-H3 25-38/75C25CF-R20 25.00 25.00 38.00 130.00 3 75.00 5.0 C 2.00 • 0.05-0.15 ECA-H3 25-38/75C25CF-R32 25.00 25.00 38.00 130.00 3 75.00 5.0 C 3.20 • 0.05-0.15 ECA-H3 25-38/75C25CF-R50 25.00 25.00 38.00 130.00 3 75.00 5.0 C 5.00 • 0.05-0.15 ECA-H3 25-50/75C25CF-R02C 25.00 25.00 50.00 128.00 3 75.00 5.0 C 0.20 • 0.05-0.15 ECA-H3 25-52/100C25CF-R02 25.00 25.00 52.00 156.00 3 100.00 5.0 C 0.20 • 0.05-0.15 ECA-H325-50/125C25CF-R02C 25.00 25.00 50.00 183.00 3 125.00 5.0 C 0.20 • 0.05-0.15 • For user guide, see pages 177-184 (1) Number of flutes (2) Maximum ramping angle (3) C-Cylindrical RE Rd° ECA-H4-CF Solid Carbide Endmills with DC DCONMS Different Helix and Long Neck APMX Relief for Machining Aluminum LU OAL ALUMINUM Recommended Dimensions Machining Data fz IC08 Designation DC APMX LU OAL DCONMS RE NOF(1) RMPX°(2) Shank(3) (mm/t) ECA-H4 06-09/30C06CFR02 6.00 9.00 30.00 65.00 6.00 0.20 4 5.0 C • 0.03-0.07 ECA-H4 06-12/18C06CFR02 6.00 12.00 18.00 57.00 6.00 0.20 4 5.0 C • 0.03-0.07 ECA-H4 08-12/40C08CFR02 8.00 12.00 40.00 79.00 8.00 0.20 4 5.0 C • 0.03-0.09 ECA-H4 08-16/24C08CFR02 8.00 16.00 24.00 63.00 8.00 0.20 4 5.0 C • 0.03-0.09 ECA-H4 10-15/50C10CFR02 10.00 15.00 50.00 92.00 10.00 0.20 4 5.0 C • 0.04-0.10 ECA-H4 10-20/30C10CFR02 10.00 20.00 30.00 72.00 10.00 0.20 4 5.0 C • 0.04-0.10 ECA-H4 12-18/60C12CFR02 12.00 18.00 60.00 100.00 12.00 0.20 4 5.0 C • 0.04-0.11 ECA-H4 12-24/36C12CFR02 12.00 24.00 36.00 83.00 12.00 0.20 4 5.0 C • 0.04-0.11 ECA-H4 16-24/80C16CFR02 16.00 24.00 80.00 128.00 16.00 0.20 4 5.0 C • 0.05-0.13 ECA-H4 16-32/48C16CFR02 16.00 32.00 48.00 100.00 16.00 0.20 4 5.0 C • 0.05-0.13 ECA-H4 20-30/100C20CFR02 20.00 30.00 100.00 150.00 20.00 0.20 4 5.0 C • 0.05-0.14 ECA-H4 20-40/60C20CFR02 20.00 40.00 60.00 110.00 20.00 0.20 4 5.0 C • 0.05-0.14 ECA-H4 25-38/125C25CFR02 25.00 38.00 125.00 185.00 25.00 0.20 4 5.0 C • 0.08-0.14 ECA-H4 25-50/75C25CFR02 25.00 50.00 75.00 130.00 25.00 0.20 4 5.0 C • 0.08-0.14 • For user guide, see pages 177-184 (1) Number of flutes (2) Maximum ramping angle (3) C-Cylindrical 156 ISCAR
