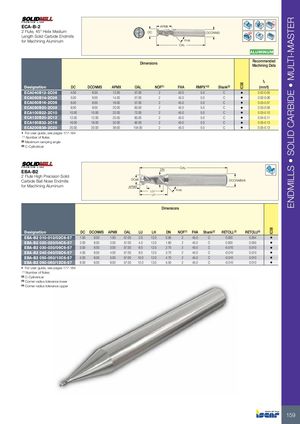

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
Rd°

ECA-B-2 APMX
2 Flute, 45° Helix Medium DC DCONMS
Length Solid Carbide Endmills
for Machining Aluminum FHA
OAL
ALUMINUM
Recommended
Dimensions
Machining Data

fz


IC08
Designation DC DCONMS APMX OAL NOF(1) FHA RMPX°(2) Shank(3) (mm/t)
ECA040B12-2C06 4.00 6.00 12.00 57.00 2 45.0 5.0 C • 0.02-0.05
ECA050B14-2C06 5.00 6.00 14.00 57.00 2 45.0 5.0 C • 0.02-0.06
ECA060B16-2C06 6.00 6.00 16.00 57.00 2 45.0 5.0 C • 0.03-0.07
ECA080B20-2C08 8.00 8.00 20.00 63.00 2 45.0 5.0 C • 0.03-0.09
ECA100B22-2C10 10.00 10.00 22.00 72.00 2 45.0 5.0 C • 0.03-0.10
ECA120B25-2C12 12.00 12.00 25.00 83.00 2 45.0 5.0 C • 0.04-0.11
ECA160B32-2C16 16.00 16.00 32.00 92.00 2 45.0 5.0 C • 0.05-0.13
ECA200B38-2C20 20.00 20.00 38.00 104.00 2 45.0 5.0 C • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical


OAL
DN
EBA-B2
2 Flute High Precision Solid
DCe8 DCONMSh6
Carbide Ball Nose Endmills
for Machining Aluminum APMX
LU FHA
LH

Dimensions


IC08
Designation DC DCONMS APMX OAL LU LH DN NOF(1) FHA Shank(2) RETOLL(3) RETOLU(4)
EBA-B2 010-010/02C6-57 1.00 6.00 1.00 57.00 2.0 12.0 0.95 2 45.0 C 0.000 0.004 •
EBA-B2 020-020/04C6-57 2.00 6.00 2.00 57.00 4.0 12.0 1.80 2 45.0 C 0.000 0.005 •
EBA-B2 030-030/06C6-57 3.00 6.00 3.00 57.00 6.0 12.0 2.70 2 45.0 C -0.010 0.010 •
EBA-B2 040-040/08C6-57 4.00 6.00 4.00 57.00 8.0 12.0 3.70 2 45.0 C -0.010 0.010 •
EBA-B2 050-050/10C6-57 5.00 6.00 5.00 57.00 10.0 12.0 4.70 2 45.0 C -0.010 0.010 •
EBA-B2 060-060/12C6-57 6.00 6.00 6.00 57.00 12.0 13.0 5.50 2 45.0 C -0.010 0.010 •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance lower
(4) Corner radius tolerance upper
