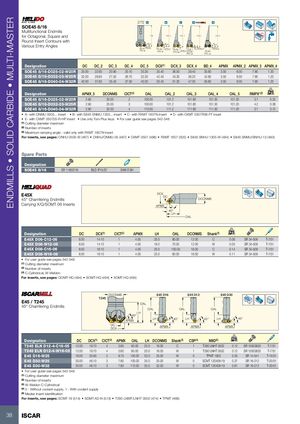

| SOE45 8/16 | DCONMS A | B | C | D | E | ||||||||||
| Multifunctional Endmills for Octagonal, Square and Round Insert Contours with Various Entry Angles | OAL DCX DC APMX 45º | DC2 DCX AP | OAL2 45º MX2 | O DC3 DCX3 A | AL3 PMX | OAL4 15º DC4 DCX4 BD4 APMX 3 | OA 45º DCX DC5 APMX 4 | L5 5 | Rd° | ||||||
| Designation | DC | DC2 | DC3 | DC4 | DC5 | DCX(1) | DCX3 | DCX4 | BD4 | APMX | APMX | 2 APMX3 | APMX4 | ||
| SOE45 8/16-D025-02-W20R | 25.00 | 22.65 | 20.90 | 20.10 | 25.30 | 35.40 | 36.50 | 29.40 | 35.60 | 3.50 | 6.00 | 7.90 | 1.20 | ||
| SOE45 8/16-D032-03-W25R | 32.00 | 29.65 | 27.50 | 26.70 | 32.30 | 42.40 | 43.30 | 36.20 | 42.60 | 3.50 | 6.00 | 7.90 | 1.20 | ||
| SOE45 8/16-D040-04-W32R | 40.00 | 37.65 | 35.40 | 37.50 | 40.30 | 50.40 | 51.30 | 47.00 | 50.60 | 3.50 | 6.00 | 7.90 | 1.20 | ||
| Designation | APMX | 5 | DCONMS | CICT(2) | OAL | O | AL | 2 | OAL3 | OAL4 | OAL5 | RMPX°(3) | kg | ||
| SOE45 8/16-D025-02-W20R | 2.90 | 20.00 | 2 | 100.00 | 101 | .2 | 101.60 | 101.30 | 101.20 | 3.1 | 0.25 | ||||
| SOE45 8/16-D032-03-W25R | 2.90 | 25.00 | 3 | 100.00 | 101 | .2 | 101.60 | 101.30 | 101.20 | 4.2 | 0.38 | ||||
| SOE45 8/16-D040-04-W32R | 2.90 | 32.00 | 4 | 110.00 | 111 | .2 | 111.60 | 111.30 | 111.20 | 3.7 | 0.72 |
- A- with ONMU 0505... insert
- B- with S845 SNMU 1305... insert
- C- with RXMT 1607N insert
- D- with OXMT 0507R08-FF insert
- E- with OXMT 050705-R-HP insert
- Use only Torx Plus keys
- For user guide see pages 542-548
(1) Cutting diameter maximum (2) Number of inserts (3) Maximum ramping angle - valid only with RXMT 1607N insert
For inserts, see pages: ONHU 0505-W (487) ONHU/ONMU-05 (487) OXMT 0507 (488) RXMT 1607 (505) S845 SNHU 1305-W (484) S845 SNMU/SNHU-13 (483)
Spare Parts
Designation
SOE45 8/16 SR 11800745 BLD IP15/S7 SW6-T-SH
E45X DCX DC 45° Chamfering Endmills DCONMS
Carrying X/Q/SOMT 06 Inserts
APMX 45° LH OAL
| Designation | DC | DCX(1) | CICT(2) | APMX | LH | OAL | DCONMS | Shank(3) | kg | ||
| E45X D06-C12-06 | 6.00 | 14.10 | 1 | 4.00 | 25.0 | 80.00 | 12.00 | C | 0.06 | SR 34-508 | T-7/51 |
| E45X D06-W12-06 | 6.00 | 14.10 | 1 | 4.00 | 19.0 | 70.00 | 12.00 | W | 0.05 | SR 34-508 | T-7/51 |
| E45X D08-C16-06 | 8.00 | 16.10 | 1 | 4.00 | 25.0 | 100.00 | 16.00 | C | 0.14 | SR 34-508 | T-7/51 |
| E45X D08-W16-06 | 8.00 | 16.10 | 1 | 4.00 | 23.0 | 80.00 | 16.00 | W | 0.11 | SR 34-508 | T-7/51 |
- For user guide see pages 542-548
(1) Cutting diameter maximum (2) Number of inserts (3) C-Cylindrical, W-Weldon
For inserts, see pages: QOMT-HQ (494) SOMT-HQ (494) XOMT-HQ (494)
| DCONMS | E45 D16 | E45 D12 | E45 D30 | |||
| T245 | ||||||
| E45 / T245 | ||||||
| 45° Chamfering Endmills | OAL |
| OAL | OAL | OAL | ||
| LH | ||||
| 45° |
| LH | 45° | LH | 45° | LH | 45° | |
| APMX |
DC APMX APMX APMX
DCX
| Designation | DC | DCX(1) | CICT(2) | APMX | OAL | LH | DCONMS | Shank(3) | CSP(4) | MIID(5) | kg | ||
| T245 ELN D12-4-C16-05 | 12.00 | 19.70 | 4 | 3.60 | 90.00 | 20.0 | 16.00 | C | 1 | T290 LNHT 0502 | 0.12 | SR 10503833 | T-7/51 |
| T245 ELN D12-4-W16-05 | 12.00 | 19.70 | 4 | 3.60 | 90.00 | 20.0 | 16.00 | W | 1 | T290 LNHT 0502 | 0.12 | SR 10503833 | T-7/51 |
| E45 D16-W25 | 16.00 | 35.90 | 2 | 9.70 | 100.00 | 33.0 | 25.00 | W | 0 | TPMT 1603 | 0.35 | SR 14-541 | T-15/51 |
| E45 D30-W25 | 30.00 | 46.10 | 3 | 7.80 | 100.00 | 35.0 | 25.00 | W | 0 | SCMT 120408-19 | 0.37 | SR 16-212 | T-20/51 |
| E45 D30-W32 | 30.00 | 46.10 | 3 | 7.80 | 110.00 | 35.0 | 32.00 | W | 0 | SCMT 120408-19 | 0.61 | SR 16-212 | T-20/51 |
- For user guide see pages 542-548
(1) Cutting diameter maximum (2) Number of inserts (3) W-Weldon C-Cylindrical (5) Master insert identification
For inserts, see pages: SCMT-19 (514) SDMT-AD-N (513) T290 LNMT/LNHT 0502 (474) TPMT (468)
