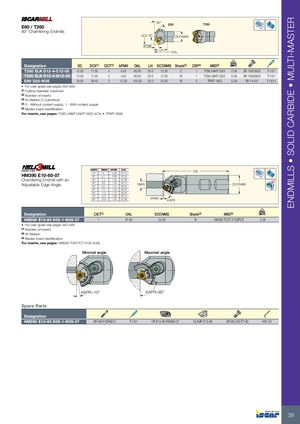

| E60 / T260 60° Chamfering Endmills | D | DC CX APMX | 60° E60 LH O | DCONMS AL | T260 | ||||||||
| Designation | DC | DCX(1) | CICT(2) | APMX | OAL | LH | DCONMS | Shank(3) | CSP(4) | MIID(5) | kg | ||
| T260 ELN D12-4-C12-05 | 12.00 | 17.50 | 4 | 4.50 | 80.00 | 20.0 | 12.00 | C | 1 | T290 LNHT 0502 | 0.06 | SR 10503833 | T-7/51 |
| T260 ELN D12-4-W12-05 | 12.00 | 17.50 | 4 | 4.50 | 80.00 | 20.0 | 12.00 | W | 1 | T290 LNHT 0502 | 0.06 | SR 10503833 | T-7/51 |
| E60 D25-W25 | 25.00 | 39.40 | 2 | 12.30 | 100.00 | 33.0 | 25.00 | W | 0 | TPMT 1603 | 0.39 | SR 14-541 | T-15/51 |
- For user guide see pages 542-548
(1) Cutting diameter maximum (2) Number of inserts (3) W-Weldon C-Cylindrical (4) 0 - Without coolant supply, 1 - With coolant supply (5) Master insert identification
For inserts, see pages: T290 LNMT/LNHT 0502 (474) TPMT (468)
| KAPR | DMIN | APMX | OAL OAL | ||
| HM390 E10-80-07 | 10° | 5 | 0.35 | 87.15 | |
| 20° | 6.1 | 0.68 | 87.55 | ||
| Chamfering Endmill with an | 30° | 7.3 | 1.00 | 87.90 | |
| Adjustable Edge Angle | 40° | 8.6 | 1.29 | 88.15 | DCONMS DMIN |
| 45° | 9.3 | 1.41 | 88.20 | ||
| 50° | 10 | 1.53 | 88.25 | ||
| 60° | 11.3 | 1.73 | 88.20 | ||
| 70° | 12.6 | 1.88 | 88.10 | ||
| APMX | |||||
| 80° | 13.9 | 1.97 | 87.85 | KAPR | |
| Designation | CICT(1) | kg MIID(3) Shank(2) DCONMS OAL | |||
| HM390 E10-80 D05-1-W25-07 | 1 | 0.28 HM390 TCCT 0703PCR W 25.00 87.85 |
- For user guide see pages 542-548
(1) Number of inserts (2) W-Weldon (3) Master insert identification
For inserts, see pages: HM390 TCKT/CT 0703 (446) Minimal angle Maximal angle
KAPR=10° KAPR=80°
Spare Parts
Designation
HM390 E10-80 D05-1-W25-07 SR M4X10DIN912 T-7/51 CR E10-80 HM390-07 CLAMP E10-80 SR M2.5X5-T7-60 HW 3.0
