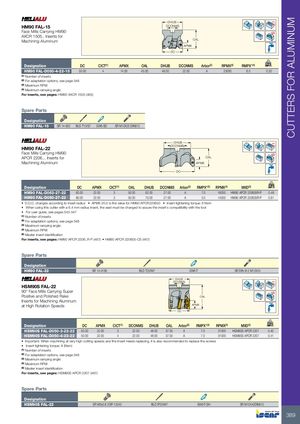

| HM90 FAL-15 | DCONMS DHUB | Rd° | |||||||
| Face Mills Carrying HM90 AXCR 1505.. Inserts for Machining Aluminum | OAL APMX DC | ||||||||
| Designation | DC | CICT(1) | APMX | OAL | DHUB DCONMS | Arbor(2) | RPMX(3) | RMPX°(4) | kg |
| HM90 FAL-D050-4-22-15 | 50.00 | 4 | 14.00 | 45.00 | 49.00 22.00 | A | 23000 | 6.5 | 0.30 |
(1) Number of inserts (2) For adaptation options, see page 548 (3) Maximum RPM (4) Maximum ramping angle
For inserts, see pages: HM90 AXCR 1505 (465)
Spare Parts
| Designation | ||||
| HM90 FAL-15 | SR 14-562 | BLD T10/S7 | SW6-SD | SR M10X25 DIN912 |
| HM90 FAL-22 | DCO DH | NMS UB | Rd° | ||||||||
| Face Mills Carrying HM90 APCR 2206... Inserts for Machining Aluminum | D | C | OAL APMX | ||||||||
| Designation | DC | APMX | CICT(1) | OAL | DHUB | DCONMS | Arbor(2 | ) RMPX°(3) | RPMX(4) | MIID(5) | kg |
| HM90 FAL-D063-27-22 | 63.00 | 22.00 | 3 | 50.00 | 62.00 | 27.00 | A | 7.0 | 16000 | HM90 APCR 220605R-P | 0.48 |
| HM90 FAL-D080-27-22 | 80.00 | 22.00 | 3 | 50.00 | 70.00 | 27.00 | A | 5.0 | 14000 | HM90 APCR 220605R-P | 0.81 |
- D.O.C. changes according to insert radius
- APMX 20.5 is the value for HM90 APCR220650
- Insert tightening torque: 6 Nxm
- When using this cutter with a 6.4 mm radius insert, the seat must be changed to assure the insert's compatibility with the tool
- For user guide, see pages 542-547
(1) Number of inserts (2) For adaptation options, see page 548 (3) Maximum ramping angle (4) Maximum RPM (5) Master insert identification
For inserts, see pages: HM90 APCR 2206..R-P (467) HM90 APCR 220605-CS (467)
| Spare Parts | |||||||||
| Designation | |||||||||
| HM90 FAL-22 | SR 14-0180 | BLD T | 20/M7 | S | W6-T | SR DIN 912 M12X25 | |||
| HSM90S FAL-22 | DCONMS DHUB | Rd° | |||||||
| 90° Face Mills Carrying Super Positive and Polished Rake Inserts for Machining Aluminum at High Rotation Speeds | DC | OAL APMX | |||||||
| Designation | DC APMX | CICT(1) | DCONMS | DHUB | OAL Arbor(2) | RMPX°(3) | RPMX(4) | MIID(5) | kg |
| HSM90S FAL-D050-3-22-22 | 50.00 22.00 | 3 | 22.00 | 48.00 | 57.00 A | 7.0 | 31000 | HSM90S APCR 2207 | 0.40 |
| HSM90S FAL-D050-4-22-22 | 50.00 22.00 | 4 | 22.00 | 48.00 | 57.00 A | 7.0 | 31000 | HSM90S APCR 2207 | 0.41 |
- Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screws
- Insert tightening torque: 9 (Nxm)
(1) Number of inserts (2) For adaptation options, see page 548 (3) Maximum ramping angle (4) Maximum RPM (5) Master insert identification
For inserts, see pages: HSM90S APCR 2207 (467)
Spare Parts
| Designation | |||
| HSM90SFAL-22 SR M5x0.8 20IP-13343 | BLD IP20/M7 | SW6-T-SH | SR M10X40DIN912 |
