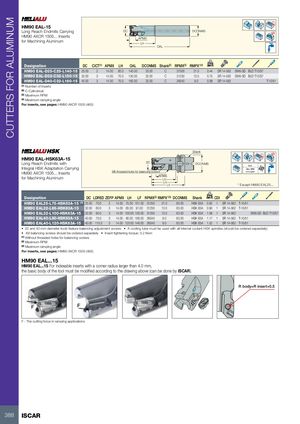

| HM90 EAL-15 | Rd° | |||||||||||||
| Long Reach Endmills Carrying HM90 AXCR 1505... Inserts for Machining Aluminum | DC | LH APMX | OAL | DCONMS | ||||||||||
| Designation | DC | CICT(1) | APMX | LH | OAL | DCONMS | Shank(2) | RPMX(3) | RMPX°(4) | kg | ||||
| HM90 EAL-D25-C25-L140-15 | 25.00 | 2 | 14.00 | 60.0 | 140.00 | 25.00 | C | 37500 | 21.0 | 0.44 | SR 14-562 | SW6-SD BLD | T10/S7 | |
| HM90 EAL-D32-C32-L150-15 | 32.00 | 3 | 14.00 | 70.0 | 150.00 | 32.00 | C | 31250 | 13.0 | 0.75 | SR 14-562 | SW6-SD BLD | T10/S7 | |
| HM90 EAL-D40-C32-L160-15 | 40.00 | 3 | 14.00 | 70.0 | 160.00 | 32.00 | C | 26040 | 9.0 | 0.99 | SR 14-562 | T-10/51 |
(1) Number of inserts (2) C-Cylindrical (3) Maximum RPM (4) Maximum ramping angle
For inserts, see pages: HM90 AXCR 1505 (465)
| HM90 EAL-HSK63A-15 Long Reach Endmills with Integral HSK Adaptation Carrying HM90 AXCR 1505... Inserts for Machining Aluminum | M6 thread | ed holes for balan | DC cing scre | LU LH APMX LF ws | DCON Shank | MS | Except H G2.5 Max. RP U | M M mm | 90 EA Rd° | L25... | |||
| Designation | DC L | DRED | ZEFP APMX | LH LF | RPMX(2) | RMPX°(3) DCONMS | Shank | kg CDI | |||||
| HM90 EAL25-L75-HSK63A-15(1) | 25.00 | 70.0 | 2 14.00 | 75.00 101.00 | 31250 | 21.0 63.00 | HSK 63A | 0.82 1 | SR 14-562 T | -10/51 | |||
| HM90 EAL32-L65-HSK63A-15 | 32.00 | 60.0 | 3 14.00 | 65.00 91.00 | 31250 | 13.0 63.00 | HSK 63A | 0.90 1 | SR 14-562 T | -10/51 | |||
| HM90 EAL32-L100-HSK63A-15 | 32.00 | 95.0 | 3 14.00 | 100.00 126.00 | 31250 | 13.0 63.00 | HSK 63A | 1.08 1 | SR 14-562 | S | W | 6-SD B | LD T10/S7 |
| HM90 EAL40-L80-HSK63A-15 | 40.00 | 75.0 | 3 14.00 | 80.00 106.00 | 26040 | 9.0 63.00 | HSK 63A | 1.17 1 | SR 14-562 T | -10/51 | |||
| HM90 EAL40-L120-HSK63A-15 | 40.00 | 115.0 | 3 14.00 | 120.00 146.00 | 26040 | 9.0 63.00 | HSK 63A | 1.52 1 | SR 14-562 T | -10/51 |
- 32 and 40 mm diameter tools feature balancing adjustment screws
- A cooling tube must be used with all internal coolant HSK spindles (should be ordered separately)
- Kit balancing screws should be ordered separately
- Insert tightening torque: 3.2 Nxm
(1) Without threaded holes for balancing screws (2) Maximum RPM (3) Maximum ramping angle
For inserts, see pages: HM90 AXCR 1505 (465)
HM90 EAL...15
HM90 EAL...15 For indexable inserts with a corner radius larger than 4.0 mm, the basic body of the tool must be modified according to the drawing above (can be done by ISCAR).
R body=R insert+0.5
F - The cutting force in ramping applications
