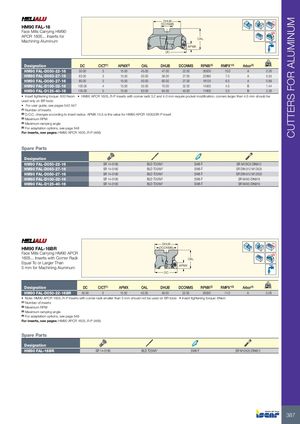

Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 71
Навигация
Каталог Iscar крепление инструмента
Каталог Iscar инструмент для обработки отверстий
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмента для сверления
Каталог Iscar решения для глубокого сверления
| HM90 FAL-16 | DCONMS DHUB | Rd° | ||||||||
| Face Mills Carrying HM90 APCR 1605... Inserts for Machining Aluminum | DC | APMX | OAL | |||||||
| Designation | DC | CICT(1) | APMX(2) | OAL | DHUB | DCONMS | RPMX(3) | RMPX°(4) | Arbor(5) | kg |
| HM90 FAL-D050-22-16 | 50.00 | 3 | 15.50 | 45.00 | 47.00 | 22.00 | 30500 | 10.0 | A | 0.26 |
| HM90 FAL-D063-27-16 | 63.00 | 3 | 15.50 | 50.00 | 58.00 | 27.00 | 22990 | 7.0 | A | 0.55 |
| HM90 FAL-D080-27-16 | 80.00 | 3 | 15.50 | 50.00 | 60.00 | 27.00 | 18125 | 6.0 | A | 0.89 |
| HM90 FAL-D100-32-16 | 100.00 | 4 | 15.50 | 55.00 | 70.00 | 32.00 | 14500 | 4.0 | B | 1.44 |
| HM90 FAL-D125-40-16 | 125.00 | 5 | 15.50 | 63.00 | 84.00 | 40.00 | 11600 | 3.0 | B | 2.36 |
- Insert tightening torque: 600 Nxcm
- HM90 APCR 1605..R-P inserts with corner radii 3.2 and 4.0 mm require pocket modification, corners larger than 4.5 mm should be
used only on BR tools
- For user guide, see pages 542-547
(1) Number of inserts (2) D.O.C. changes according to insert radius. APMX 15.5 is the value for HM90 APCR 160520R-P insert (3) Maximum RPM (4) Maximum ramping angle (5) For adaptation options, see page 548
For inserts, see pages: HM90 APCR 1605..R-P (466)
Spare Parts
| Designation | ||||
| HM90 FAL-D050-22-16 | SR 14-0180 | BLD T20/M7 | SW6-T | SR M10X25 DIN912 |
| HM90 FAL-D063-27-16 | SR 14-0180 | BLD T20/M7 | SW6-T | SR DIN 912 M12X25 |
| HM90 FAL-D080-27-16 | SR 14-0180 | BLD T20/M7 | SW6-T | SR DIN 912 M12X25 |
| HM90 FAL-D100-32-16 | SR 14-0180 | BLD T20/M7 | SW6-T | SR M4X5 DIN916 |
| HM90 FAL-D125-40-16 | SR 14-0180 | BLD T20/M7 | SW6-T | SR M4X5 DIN916 |
DHUB Rd° HM90 FAL-16BR DCONMS
Face Mills Carrying HM90 APCR
1605... Inserts with Corner Radii
OAL
Equal To or Larger Than
5 mm for Machining Aluminum APMX DC
| Designation | DC | CICT(1) | APMX | OAL | DHUB | DCONMS | RPMX(2) | RMPX°(3) | Arbor(4) | kg | |
| HM90 FAL-D050-22-16BR | 50.00 | 3 | 15.50 | 45.00 | 49.00 | 22.00 | 30500 | 11.0 | A | 0.28 |
- Note: HM90 APCR 1605..R-P inserts with corner radii smaller than 5 mm should not be used on BR tools
- Insert tightening torque: 6Nxm
(1) Number of inserts (2) Maximum RPM (3) Maximum ramping angle (4) For adaptation options, see page 548
For inserts, see pages: HM90 APCR 1605..R-P (466)
Spare Parts
Designation
HM90 FAL-16BR SR 14-0180 BLD T20/M7 SW6-T SR M10X25 DIN912
