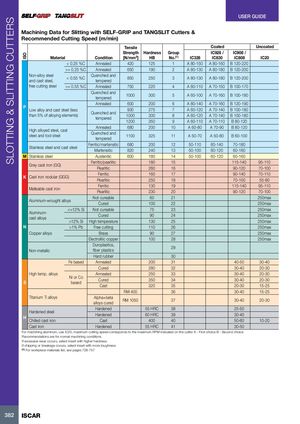

Machining Data for Slitting with SELF-GRIP and TANGSLIT Cutters &
Recommended Cutting Speed (m/min)
| ISO Materia | l | Condition | Tensile Strength [N/mm2] | Hardness HB | Group No.(1) | IC328 | Coated IC928 / IC830 | IC908 / IC808 | Uncoated IC20 |
| < 0.25 %C | Annealed | 420 | 125 | 1 | A 80-150 | A 80-160 | B 120-220 | ||
| >= 0.25 %C | Annealed | 650 | 190 | 2 | A 80-130 | A 80-180 | B 120-200 | ||
| Non-alloy steel and cast steel, | < 0.55 %C | Quenched and tempered | 850 | 250 | 3 | A 80-130 | A 80-180 | B 120-200 | |
| free cutting steel | >= 0.55 %C | Annealed | 750 | 220 | 4 | A 60-110 | A 70-150 | B 100-170 | |
| Quenched and tempered | 1000 | 300 | 5 | A 60-100 | A 70-160 | B 100-180 | |||
| Annealed | 600 | 200 | 6 | A 80-140 | A 70-160 | B 120-190 | |||
| P Low alloy and cast s | teel (less | 930 | 275 | 7 | A 60-120 | A 70-140 | B 100-180 | ||
| than 5% of alloying e | lements) | Quenched and | 1000 | 300 | 8 | A 60-120 | A 70-140 | B 100-180 | |
| tempered | 1200 | 350 | 9 | A 60-110 | A 70-110 | B 80-120 | |||
| High alloyed steel, c | ast | Annealed | 680 | 200 | 10 | A 60-80 | A 70-90 | B 80-120 | |
| steel and tool steel | Quenched and tempered | 1100 | 325 | 11 | A 50-70 | A 50-80 | B 60-100 | ||
| Stil tl d | t tl | Ferritic/martensitic | 680 | 200 | 12 | 50-110 | 60-140 | 70-180 | |
| aness see an c | as see | Martensitic | 820 | 240 | 13 | 50-100 | 60-120 | 60-160 | |
| M Stainless steel | Austenitic | 600 | 180 | 14 | 50-100 | 60-120 | 60-160 | ||
| GtiGG | Ferritic/pearlitic | 180 | 15 | 115-140 | 95-110 | ||||
| rey cas ron () | Pearlitic | 260 | 16 | 90-120 | 70-100 | ||||
| K CtidlG | G | Ferritic | 160 | 17 | 90-140 | 70-110 | |||
| as ron nouar ( | ) | Pearlitic | 250 | 18 | 70-100 | 55-80 | |||
| Mllbl t i | Ferritic | 130 | 19 | 115-140 | 95-110 | ||||
| aeae cas ron | Pearlitic | 230 | 20 | 90-120 | 70-100 | ||||
| Not cureable | 60 | 21 | 250max | ||||||
| Aluminum-wrought a | lloys | Cured | 100 | 22 | 250max | ||||
| Ali | Not cureable | 75 | 23 | 250max | |||||
| umnum- t ll | Cured | 90 | 24 | 250max | |||||
| cas aoys | >12% Si | High temperature | 130 | 25 | 250max | ||||
| N | >1% Pb | Free cutting | 110 | 26 | 250max | ||||
| Copper alloys | Brass | 90 | 27 | 250max | |||||
| Electrolitic copper | 100 | 28 | 250max | ||||||
| Non-metallic | Duroplastics, fiberplastics | 29 | |||||||
| Hard rubber | 30 | ||||||||
| Fe based | Annealed | 200 | 31 | 40-50 | 30-40 | ||||
| Cured | 280 | 32 | 30-40 | 20-30 | |||||
| High temp. alloys | Annealed | 250 | 33 | 30-40 | 20-30 | ||||
| Ni or Co | Cured | 350 | 34 | 30-40 | 20-30 | ||||
| S | based | Cast | 320 | 35 | 20-30 | 15-25 | |||
| RM 400 | 36 | 30-40 | 15-25 | ||||||
| Titanium Ti alloys | Alpha+beta alloys cured | RM 1050 | 37 | 30-40 | 20-30 | ||||
| Hdd l | Hardened | 55 HRC | 38 | 25-50 | |||||
| arene stee | Hardened | 60 HRC | 39 | 30-40 | |||||
| H Chilled cast iron | Cast | 400 | 40 | 50-60 | 10-20 | ||||
| Cast iron | Hardened | 55 HRC | 41 | 30-50 |
For machining aluminum, use IC20, maximum cutting speed corresponds to the maximum RPM indicated on the cutter A - First choice B - Second choice Recommendations are for normal machining conditions If excessive wear occurs, select insert with higher hardness If chipping or breakage occurs, select insert with more toughness (1) For workpiece materials list, see pages 728-757
