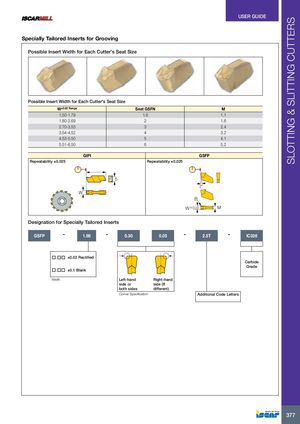

SLOTTING & SLITTING CUTTERS USER GUIDE Specially Tailored Inserts for Grooving Possible Insert Width for Each Cutter’s Seat Size Possible Insert Width for Each Cutter’s Seat Size W±0.02 Range Seat GSFN M 1.50-1.79 1.6 1.1 1.80-2.69 2 1.6 2.70-3.53 3 2.4 3.54-4.52 4 3.2 4.53-5.50 5 4.1 5.51-6.50 6 5.2 GIPI GSFP Repeatability ±0.025 Repeatability ±0.025 55 77˚ ˚ WW RR WW±±00.0.022 MM Designation for Specially Tailored Inserts GSFP - 1.98 - 0.30 0.05 - 2.5T - IC328 . ±0.02 Rectified Carbide Grade . ±0.1 Blank Width Left-hand Right-hand side or side (If both sides different) Corner Specification Additional Code Letters 377
