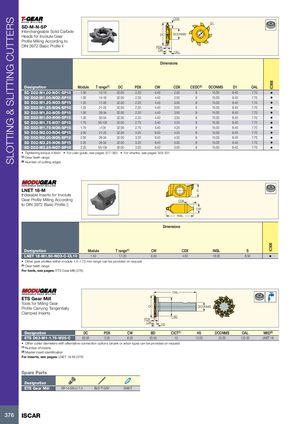

SLOTTING & SLITTING CUTTERS IC908IC908 CDX D1 SD-M-N-SP Interchangeable Solid Carbide Heads for Involute Gear DC DCONMS Profile Milling According to DIN 3972 Basic Profile ll PDX CW OAL Dimensions Designation Module T range(1) DC PDX CW CDX CEDC(2) DCONMS D1 OAL SD D32-M1.00-NO1-SP15 1.00 12-13 32.00 2.20 4.40 2.50 8 15.00 8.40 7.70 • SD D32-M1.00-NO2-SP15 1.00 14-16 32.00 2.20 4.40 2.50 8 15.00 8.40 7.70 • SD D32-M1.25-NO3-SP15 1.25 17-20 32.00 2.20 4.40 3.00 8 15.00 8.40 7.70 • SD D32-M1.25-NO4-SP15 1.25 21-25 32.00 2.20 4.40 3.00 8 15.00 8.40 7.70 • SD D32-M1.50-NO5-SP15 1.50 26-34 32.00 2.20 4.40 3.50 8 15.00 8.40 7.70 • SD D32-M1.50-NO6-SP15 1.50 35-54 32.00 2.20 4.40 3.50 8 15.00 8.40 7.70 • SD D32-M1.75-NO7-SP15 1.75 55-134 32.00 2.70 5.40 4.25 8 15.00 8.40 7.70 • SD D32-M1.75-NO8-SP15 1.75 >134 32.00 2.70 5.40 4.25 8 15.00 8.40 7.70 • SD D32-M2.00-NO4-SP15 2.00 21-25 32.00 3.20 6.40 4.50 8 15.00 8.40 7.70 • SD D32-M2.00-NO5-SP15 2.00 26-34 32.00 3.20 6.40 4.50 8 15.00 8.40 7.70 • SD D32-M2.25-NO6-SP15 2.25 35-54 32.00 3.20 6.40 5.00 8 15.00 8.40 7.70 • SD D32-M2.25-NO7-SP15 2.25 55-134 32.00 3.20 6.40 5.00 8 15.00 8.40 7.70 • • Tightening torque 4 Nxm • For user guide, see pages 377-383 • For shanks, see pages 329-331 (1) Gear teeth range (2) Number of cutting edges LNET 18-M S Indexable Inserts for Involute Gear Profile Milling According CDX to DIN 3972 Basic Profile || CW INSL Dimensions Designation Module T range(1) CW CDX INSL S LNET 18-M1.50-NO3-C-CL10 1.50 17-20 6.00 4.00 18.00 8.50 • • Other gear profiles within module 1.0-1.75 mm range can be provided on request (1) Gear teeth range For tools, see pages: ETS Gear Mill (376) OAL ETS Gear Mill Tools for Milling Gear Profile Carrying Tangentially DC DCONMS Clamped Inserts BD PDX CW H5 Designation DC PDX CW BD CICT(1) H5 DCONMS OAL MIID(2) ETS D63-M1-1.75-W25-C 63.00 3.00 6.00 53.50 10 12.00 25.00 120.00 LNET 18 • Other cutter diameters with alternative connection options (shank or arbor-type) can be provided on request (1) Number of inserts (2) Master insert identification For inserts, see pages: LNET 18-M (376) Spare Parts Designation ETS Gear Mill SR 14-500-L11.5 BLD T15/S7 SW6-T 376 ISCAR
