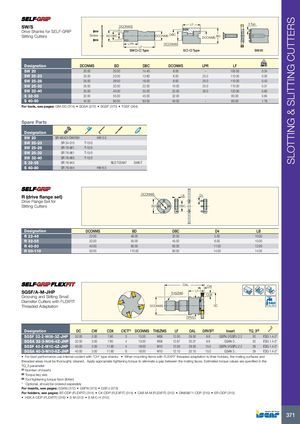

| SW/S | DC | ONWS | LF | 3 Typ. | |
| Drive Shanks for SELF-GRIP Slitting Cutters | Screw | DBC BD | D | CONMS DBC BD | |
| SW-Type LPR LF | S-Type DCONWS DCONMS | SW20 | |||
| Designation | DCONMS | BD | DBC | DCONWS LPR LF | kg |
| SW 20 | 20.00 | 20.00 | 14.40 | 8.00 - 100.00 | 0.24 |
| SW 25-23 | 25.00 | 23.00 | 13.60 | 6.00 25.0 110.00 | 0.00 |
| SW 25-28 | 25.00 | 28.00 | 18.00 | 8.00 25.0 110.00 | 0.43 |
| SW 25-32 | 25.00 | 32.00 | 22.00 | 10.00 25.0 110.00 | 0.51 |
| SW 32-40 | 32.00 | 40.00 | 32.00 | 22.00 30.0 120.00 | 0.60 |
| S 32-55 | 32.00 | 55.00 | 45.00 | 32.00 - 60.00 | 0.84 |
| S 40-80 | 40.00 | 80.00 | 63.00 | 40.00 - 60.00 | 1.78 |
For tools, see pages: GM-DG (374) SGSA (372) SGSF (370) TGSF (364)
| Spare Parts | |||||
| Designation | |||||
| SW 20 | SR M5X20 DIN7991 | HW 3.0 | |||
| SW 25-23 | SR 34-510 | T-15/5 | |||
| SW 25-28 | SR 76-961 | T-15/5 | |||
| SW 25-32 | SR 76-961 | T-15/5 | |||
| SW 32-40 | SR 76-963 | T-15/5 | |||
| S 32-55 | SR 76-943 | BLD T20/M7 | SW6-T | ||
| S 40-80 | SR 76-944 | HW 6.0 |
| R (drive flange set) | LB DCONMS | D4 |
| Drive Flange Set for | ||
| Slitting Cutters | DBC BD |
| Designation | DCONMS | BD | DBC | D4 | LB |
| R 22-46 | 22.00 | 46.00 | 32.00 | 5.00 | 10.00 |
| R 32-55 | 32.00 | 55.00 | 45.00 | 6.00 | 10.00 |
| R 40-80 | 40.00 | 80.00 | 63.00 | 11.00 | 12.00 |
| R 50-110 | 50.00 | 110.00 | 80.00 | 14.00 | 14.00 |
| SGSF/A-M-JHP Grooving and Slitting Small Diameter Cutters with FLEXFI Threaded Adaptation | T | DCONMS | THSZMS OA | LF DRVS L | CW DC CDX | Bar Max | ||||||
| Designation | DC | CW | CDX | CICT(1) | DCONMS | THSZMS | LF | OAL | DRVS(2) | Insert | TQ3 | (3) |
| SGSF 32-2-M08-3Z-JHP | 32.00 | 2.00 | 7.80 | 3 | 13.00 | M08 | 12.00 | 29.50 | 9.6 | GSFN 2/GSFU 2. | 2 20 | ESG 1.4-2 |
| SGSA 32-3-M08-4Z-JHP | 32.00 | 3.00 | 7.80 | 4 | 13.00 | M08 | 12.87 | 30.37 | 9.6 | GSAN 3... | 20 | ESG 1.4-2 |
| SGSF 40-2-M10-4Z-JHP | 40.00 | 2.00 | 11.80 | 4 | 18.00 | M10 | 12.00 | 29.50 | 15.0 | GSFN 2/GSFU 2. | 2 29 | ESG 1.4-2 |
| SGSA 40-3-M10-6Z-JHP | 40.00 | 3.00 | 11.80 | 6 | 18.00 | M10 | 12.10 | 32.10 | 15.0 | GSAN 3... | 29 | ESG 1.4-2 |
- For best performance use internal coolant with "CH" type shanks
- When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of inserts (2) Torque key size (3) Tool tightening torque Nxm (lbfxin) * Optional, should be ordered separately
For inserts, see pages: GSAN (372) GSFN (373) GSFU (373)
For holders, see pages: BT-ODP (FLEXFIT) (314) C#-ODP (FLEXFIT) (314) CAB M-M (FLEXFIT) (312) DIN69871-ODP (315) ER-ODP (315)
- HSK A-ODP (FLEXFIT) (316)
- S M (312)
- S M-C-H (312)
