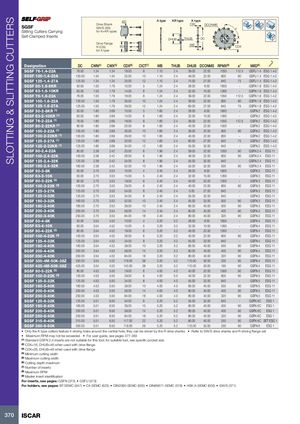

BD A type KR type K type
SGSF Drive Shank CW DCONMS
SW/S (SS) a° Slitting Cutters Carrying for K+KR types
Self-Clamped Inserts
DHUB THUB DC
Drive Flange WB
R (CSI) BD CDX
for K type
| Designation | DC | CWN(4) | CWX (5) | CDX(6) | CICT(7) | WB | THUB | DHUB DCONMS RPMX(8) | a° | MIID(9) | |||
| SGSF 76-1.4-22A | 76.00 | 1.34 | 1.34 | 18.00 | 8 | 1.10 | 2.4 | 39.00 | 22.00 | 1050 | 112.5 | GSFU 1.4 ESG 1.4-2 | |
| SGSF 100-1.4-22A | 100.00 | 1.34 | 1.34 | 25.00 | 10 | 1.10 | 2.4 | 49.00 | 22.00 | 800 | 90 | GSFU 1.4 ESG 1.4-2 | |
| SGSF 125-1.4-27A | 125.00 | 1.34 | 1.34 | 25.00 | 12 | 1.10 | 2.4 | 74.00 | 27.00 | 640 | 75 | GSFU 1.4 ESG 1.4-2 | |
| SGSF 50-1.6-8KR | 50.00 | 1.50 | 1.79 | 10.00 | 5 | 1.24 | 2.4 | 28.00 | 8.00 | 1600 | - | GSFN 1.6 ESG 1.4-2 | |
| SGSF 63-1.6-10KR | 63.00 | 1.50 | 1.79 | 14.00 | 6 | 1.24 | 2.4 | 32.00 | 10.00 | 1260 | - | GSFN 1.6 ESG 1.4-2 | |
| SGSF 76-1.6-22A | 76.00 | 1.50 | 1.79 | 18.00 | 8 | 1.24 | 2.4 | 39.00 | 22.00 | 1050 | 112.5 | GSFN 1.6 ESG 1.4-2 | |
| SGSF 100-1.6-22A | 100.00 | 1.50 | 1.79 | 30.00 | 10 | 1.24 | 2.4 | 39.00 | 22.00 | 800 | 90 | GSFN 1.6 ESG 1.4-2 | |
| SGSF 125-1.6-27A | 125.00 | 1.50 | 1.79 | 29.00 | 12 | 1.24 | 2.4 | 60.00 | 27.00 | 640 | 75 | GSFN 1.6 ESG 1.4-2 | |
| SGSF 50-2-8KR (1) | 50.00 | 1.80 | 2.69 | 10.00 | 5 | 1.60 | 2.4 | 28.00 | 8.00 | 1600 | - | GSFN 2 ESG 1.4-2 | |
| SGSF 63-2-10KR (1) | 63.00 | 1.80 | 2.69 | 15.00 | 6 | 1.60 | 2.4 | 32.00 | 10.00 | 1260 | - | GSFN 2 ESG 1.4-2 | |
| SGSF 76-2-22A (1) | 76.00 | 1.80 | 2.69 | 18.00 | 8 | 1.60 | 2.4 | 39.00 | 22.00 | 1050 | 112.5 | GSFN 2 ESG 1.4-2 | |
| SGSF 80-2-22KR (1) | 80.00 | 1.80 | 2.69 | 20.00 | 8 | 1.60 | 2.4 | 40.00 | 22.00 | 1000 | - | GSFN 2 ESG 1.4-2 | |
| SGSF 100-2-22A (1) | 100.00 | 1.80 | 2.69 | 30.00 | 10 | 1.60 | 2.4 | 39.00 | 22.00 | 800 | 90 | GSFN 2 ESG 1.4-2 | |
| SGSF 100-2-22KR (1) | 100.00 | 1.80 | 2.69 | 29.00 | 10 | 1.60 | 2.4 | 40.00 | 22.00 | 800 | - | GSFN 2 ESG 1.4-2 | |
| SGSF 125-2-27A (1) | 125.00 | 1.80 | 2.69 | 32.00 | 12 | 1.60 | 2.4 | 60.00 | 27.00 | 640 | 75 | GSFN 2 ESG 1.4-2 | |
| SGSF 125-2-32KR (1) | 125.00 | 1.80 | 2.69 | 34.00 | 12 | 1.60 | 2.4 | 55.00 | 32.00 | 640 | - | GSFN 2 ESG 1.4-2 | |
| SGSF 80-2.4-22A | 80.00 | 2.38 | 2.42 | 20.00 | 6 | 1.90 | 2.4 | 39.00 | 22.00 | 1000 | 90 | GSFN 2.4 | ESG 11 |
| SGSF 100-2.4-22K | 100.00 | 2.38 | 2.42 | 26.00 | 6 | 1.90 | 2.4 | 46.00 | 22.00 | 800 | 90 | GSFN 2.4 | ESG 11 |
| SGSF 125-2.4-32K | 125.00 | 2.38 | 2.42 | 34.00 | 8 | 1.90 | 2.4 | 55.00 | 32.00 | 640 | - | GSFN 2.4 | ESG 11 |
| SGSF 160-2.4-32K | 160.00 | 2.38 | 2.42 | 52.00 | 10 | 1.90 | 2.4 | 55.00 | 32.00 | 500 | 90 | GSFN 2.4 | ESG 11 |
| SGSF 50-3-8K | 50.00 | 2.70 | 3.53 | 10.00 | 4 | 2.40 | 2.4 | 28.00 | 8.00 | 1600 | - | GSFN 3 | ESG 11 |
| SGSF 63-3-10K | 63.00 | 2.70 | 3.53 | 15.00 | 5 | 2.40 | 2.4 | 32.00 | 10.00 | 1260 | - | GSFN 3 | ESG 11 |
| SGSF 80-3-22K (2) | 80.00 | 2.70 | 3.53 | 19.00 | 6 | 2.40 | 2.4 | 40.00 | 22.00 | 1000 | - | GSFN 3 | ESG 11 |
| SGSF 100-3-22K (3) | 100.00 | 2.70 | 3.53 | 29.00 | 6 | 2.40 | 2.4 | 40.00 | 22.00 | 800 | 90 | GSFN 3 | ESG 11 |
| SGSF 125-3-27K | 125.00 | 2.70 | 3.53 | 34.00 | 8 | 2.40 | 2.4 | 0.00 | 27.00 | 640 | - | GSFN 3 | ESG 11 |
| SGSF 125-3-32K | 125.00 | 2.70 | 3.53 | 34.00 | 8 | 2.40 | 2.4 | 55.00 | 32.00 | 640 | - | GSFN 3 | ESG 11 |
| SGSF 160-3-32K | 160.00 | 2.70 | 3.53 | 52.00 | 10 | 2.40 | 2.4 | 55.00 | 32.00 | 500 | 90 | GSFN 3 | ESG 11 |
| SGSF 160-3-40K | 160.00 | 2.70 | 3.53 | 39.00 | 10 | 2.40 | 2.4 | 80.00 | 40.00 | 500 | 90 | GSFN 3 | ESG 11 |
| SGSF 200-3-40K | 200.00 | 2.70 | 3.54 | 59.00 | 14 | 2.40 | 2.4 | 80.00 | 40.00 | 400 | 90 | GSFN 3 | ESG 11 |
| SGSF 250-3-40K | 250.00 | 2.70 | 3.53 | 84.00 | 18 | 2.40 | 2.4 | 80.00 | 40.00 | 320 | 90 | GSFN 3 | ESG 11 |
| SGSF 50-4-8K | 50.00 | 3.54 | 4.52 | 10.00 | 4 | 3.20 | 3.2 | 28.00 | 8.00 | 1600 | - | GSFN 4 | ESG 11 |
| SGSF 63-4-10K | 63.00 | 3.54 | 4.52 | 15.00 | 5 | 3.20 | 3.2 | 32.00 | 10.00 | 1260 | - | GSFN 4 | ESG 11 |
| SGSF 80-4-22K (2) | 80.00 | 3.54 | 4.52 | 19.00 | 6 | 3.20 | 3.2 | 40.00 | 22.00 | 1000 | - | GSFN 4 | ESG 11 |
| SGSF 100-4-22K (3) | 100.00 | 3.54 | 4.52 | 26.00 | 6 | 3.20 | 3.2 | 40.00 | 22.00 | 800 | 90 | GSFN 4 | ESG 11 |
| SGSF 125-4-32K | 125.00 | 3.54 | 4.52 | 34.00 | 8 | 3.20 | 3.2 | 55.00 | 32.00 | 640 | - | GSFN 4 | ESG 11 |
| SGSF 160-4-40K | 160.00 | 3.54 | 4.52 | 39.00 | 10 | 3.20 | 3.2 | 80.00 | 40.00 | 500 | 90 | GSFN 4 | ESG 11 |
| SGSF 200-4-40K | 200.00 | 3.54 | 4.52 | 59.00 | 14 | 3.20 | 3.2 | 80.00 | 40.00 | 400 | 90 | GSFN 4 | ESG 11 |
| SGSF 250-4-40K | 250.00 | 3.54 | 4.52 | 84.00 | 18 | 3.20 | 3.2 | 80.00 | 40.00 | 320 | 90 | GSFN 4 | ESG 11 |
| SGSF 350-4M-50K-38Z | 350.00 | 3.54 | 4.52 | 119.00 | 38 | 3.20 | 3.2 | 110.00 | 50.00 | 230 | 90 | GSFN 4 | ESG 11 |
| SGSF 425-4M-50K-38Z | 425.00 | 3.54 | 4.52 | 140.00 | 38 | 3.20 | 3.2 | 110.00 | 50.00 | 190 | 90 | GSFN 4 | ESG 11 |
| SGSF 80-5-22K (2) | 80.00 | 4.53 | 5.50 | 19.00 | 6 | 4.00 | 4.0 | 40.00 | 22.00 | 1000 | 90 | GSFN 5 | ESG 11 |
| SGSF 100-5-22K (3) | 100.00 | 4.53 | 5.50 | 29.00 | 6 | 4.00 | 5.0 | 40.00 | 22.00 | 800 | 90 | GSFN 5 | ESG 11 |
| SGSF 125-5-32K | 125.00 | 4.53 | 5.50 | 34.00 | 8 | 4.00 | 4.0 | 55.00 | 32.00 | 640 | - | GSFN 5 | ESG 11 |
| SGSF 160-5-40K | 160.00 | 4.53 | 5.50 | 39.00 | 10 | 4.00 | 4.0 | 80.00 | 40.00 | 500 | 90 | GSFN 5 | ESG 11 |
| SGSF 200-5-40K | 200.00 | 4.53 | 5.50 | 59.00 | 14 | 4.00 | 4.0 | 80.00 | 40.00 | 400 | 90 | GSFN 5 | ESG 11 |
| SGSF 250-5-40K | 250.00 | 4.53 | 5.50 | 84.00 | 18 | 4.00 | 4.0 | 80.00 | 40.00 | 320 | 90 | GSFN 5 | ESG 11 |
| SGSF 125-6-32K | 125.00 | 5.51 | 6.50 | 34.00 | 8 | 5.20 | 5.2 | 55.00 | 32.00 | 640 | - | GSFN 6C | ESG 1 |
| SGSF 160-6-40K | 160.00 | 5.51 | 6.50 | 39.00 | 10 | 5.20 | 5.2 | 80.00 | 40.00 | 500 | 90 | GSFN 6C | ESG 1 |
| SGSF 200-6-40K | 200.00 | 5.51 | 6.50 | 59.00 | 14 | 5.20 | 5.2 | 80.00 | 40.00 | 400 | 90 | GSFN 6C | ESG 1 |
| SGSF 250-6-40K | 250.00 | 5.51 | 6.50 | 84.00 | 18 | 5.20 | 5.2 | 80.00 | 40.00 | 320 | 90 | GSFN 6C | ESG 1 |
| SGSF 315-6-40K | 315.00 | 5.51 | 6.50 | 117.00 | 22 | 5.20 | 5.2 | 80.00 | 40.00 | 250 | 90 | GSFN 6C SET ESG 1 | |
| SGSF 350-6-50K | 350.00 | 5.51 | 6.50 | 119.00 | 26 | 5.20 | 5.2 | 110.00 | 50.00 | 230 | 90 | GSFN 6 | ESG 1 |
- Only the K type cutters feature 4 driving holes around the central hole; they can be driven by the R drive shanks
- Refer to SW/S drive shanks and R driving flange set
- Maximum RPM may not be exceeded
- For user guide, see pages 377-383
(1) Standard GSFN 2.4 inserts are not suitable for this tool; for suitable tool, see specific pocket size. (2) CDX=16, DHUB=46 when used with drive flange (3) CDX=26, DHUB=46 when used with drive flange (4) Minimum cutting width (5) Maximum cutting width (6) Cutting depth maximum (7) Number of inserts (8) Maximum RPM (9) Master insert identification
For inserts, see pages: GSFN (373) GSFU (373)
For holders, see pages: BT-SEMC (647) C#-SEMC (623) DIN2080-SEMC (655) DIN69871-SEMC (578) HSK A-SEMC (605) SW/S (371)
