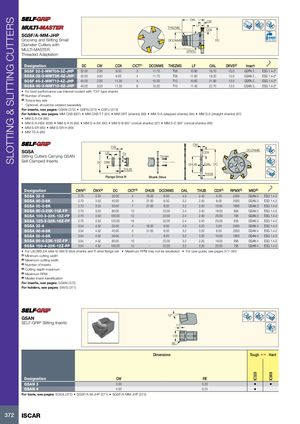

SGSF/A-MM-JHP
Grooving and Slitting Small DCONMS DC
Bar Max
Diameter Cutters with
MULTI-MASTER
DRVS
Threaded Adaptation
| Designation | DC | CW | CDX | CICT(1) | DCONMS | THSZMS | LF | OAL | DRVS(2) | Insert | ||
| SGSF 32-2-MMT08-3Z-JHP | 32.00 | 2.00 | 9.00 | 3 | 11.70 | T08 | 10.60 | 18.10 | 10.0 | GSFN 2... | ESG 1.4-2* | |
| SGSA 32-3-MMT08-4Z-JHP | 32.00 | 3.00 | 9.00 | 4 | 11.70 | T08 | 11.60 | 19.20 | 10.0 | GSAN 3... | ESG 1.4-2* | |
| SGSF 40-2-MMT10-4Z-JHP | 40.00 | 2.00 | 11.30 | 4 | 15.30 | T10 | 10.60 | 21.90 | 13.0 | GSFN 2... | ESG 1.4-2* | |
| SGSA 40-3-MMT10-6Z-JHP | 40.00 | 3.00 | 11.30 | 6 | 15.30 | T10 | 11.40 | 22.70 | 13.0 | GSAN 3... | ESG 1.4-2* |
- For best performance use internal coolant with "CH" type shanks
(1) Number of inserts (2) Torque key size * Optional, should be ordered separately
For inserts, see pages: GSAN (372) GSFN (373) GSFU (373)
For holders, see pages: MM CAB (667) MM CAB-T-T (91) MM GRT (shanks) (86) MM S-A (stepped shanks) (84) MM S-A (straight shanks) (87)
- MM S-A-C# (86)
- MM S-A-HSK (609)
- MM S-A-N (85)
- MM S-A-SK (90)
- MM S-B (85° conical shanks) (87)
- MM S-D (89° conical shanks) (88)
- MM S-ER (89)
- MM S-ER-H (89)
- MM TS-A (86)
CW CW SGSA DCONMS
LB D CDX
Slitting Cutters Carrying GSAN 4 Screw
Self-Clamped Inserts
DC DBS DHUB OAL DC THUB THUB Flange Drive R Shank Drive
| Designation | CWN(1) | CWX(2) | DC | CICT(3) | DHUB DCONMS | OAL | THUB | CDX(4) | RPMX(5) | MIID(6) | ||
| SGSA 32-3 | 2.70 | 3.53 | 32.00 | 4 | 18.20 | 8.00 | 4.0 | 2.40 | 5.50 | 2400 | GSAN 3 | ESG 1.4-2 |
| SGSA 40-3-6K | 2.70 | 3.53 | 40.00 | 5 | 21.00 | 6.00 | 3.2 | 2.40 | 8.00 | 2000 | GSAN 3 | ESG 1.4-2 |
| SGSA 50-3-8K | 2.70 | 3.53 | 50.00 | 7 | 27.00 | 8.00 | 3.2 | 2.40 | 10.50 | 1600 | GSAN 3 | ESG 1.4-2 |
| SGSA 80-3-22K-10Z-FP | 2.70 | 3.53 | 80.00 | 10 | - | 22.00 | 2.4 | 2.40 | 16.00 | 995 | GSAN 3 | ESG 1.4-2 |
| SGSA 100-3-22K-12Z-FP | 2.70 | 3.53 | 100.00 | 12 | - | 22.00 | 2.4 | 2.40 | 20.00 | 795 | GSAN 3 | ESG 1.4-2 |
| SGSA 125-3-32K-16Z-FP | 2.70 | 3.53 | 125.00 | 16 | - | 32.00 | 2.4 | 2.40 | 25.00 | 635 | GSAN 3 | ESG 1.4-2 |
| SGSA 32-4 | 3.54 | 4.52 | 32.00 | 4 | 18.20 | 8.00 | 4.0 | 3.20 | 5.50 | 2400 | GSAN 4 | ESG 1.4-2 |
| SGSA 40-4-6K | 3.54 | 4.52 | 40.00 | 5 | 21.00 | 6.00 | 3.2 | 3.20 | 8.00 | 2000 | GSAN 4 | ESG 1.4-2 |
| SGSA 50-4-8K | 3.54 | 4.52 | 50.00 | 7 | - | 8.00 | 3.2 | 3.20 | 10.50 | 1600 | GSAN 4 | ESG 1.4-2 |
| SGSA 80-4-22K-10Z-FP | 3.54 | 4.52 | 80.00 | 10 | - | 22.00 | 3.2 | 3.20 | 16.00 | 995 | GSAN 4 | ESG 1.4-2 |
| SGSA 100-4-22K-12Z-FP | 3.54 | 4.52 | 100.00 | 12 | - | 22.00 | 3.2 | 3.20 | 20.00 | 795 | GSAN 4 | ESG 1.4-2 |
- For LB,DBS,D4 refer to SW/S drive shanks and R drive flange set
- Maximum RPM may not be exceeded
- For user guide, see pages 377-383
(1) Minimum cutting width (2) Maximum cutting width (3) Number of inserts (4) Cutting depth maximum (5) Maximum RPM (6) Master insert identification
For inserts, see pages: GSAN (372)
For holders, see pages: SW/S (371)
GSAN 12°
SELF-GRIP Slitting Inserts
7°
CW RE
Dimensions Tough 1 Hard
| Designation | CW | RE | ||
| GSAN 3 | 3.00 | 0.20 | ||
| GSAN 4 | 4.00 | 0.24 |
For tools, see pages: SGSA (372) SGSF/A-M-JHP (371) SGSF/A-MM-JHP (372)
