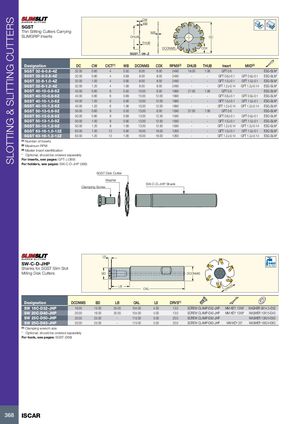

Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 52
Навигация
Каталог Iscar крепление инструмента
Каталог Iscar инструмент для обработки отверстий
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмента для сверления
Каталог Iscar решения для глубокого сверления
WB
SGST
Thin Slitting Cutters Carrying
WB SLIMGRIP Inserts DHUB DC THUB DCONMS CDX SGST...-06-.Z
| Designation | DC | CW | CICT(1) | WB | DCONMS | CDX | RPMX(2) | DHUB | THUB | Insert | MIID(3) | |||
| SGST 32-8-0.6-4Z | 32.00 | 0.60 | 4 | 0.50 | 8.00 | 6.00 | 2490 | 19.00 | 1.06 | GFT 0.6 | ESG-SLM* | |||
| SGST 32-8-0.8-4Z | 32.00 | 0.80 | 4 | 0.69 | 8.00 | 8.00 | 2490 | - | - | GFT 0.8J-0.1 | GFT 0.8J-0.1 | ESG-SLM* | ||
| SGST 32-8-1.0-4Z | 32.00 | 1.00 | 4 | 0.90 | 8.00 | 8.00 | 2490 | - | - | GFT 1.0J-0.1 | GFT 1.0J-0.1 | ESG-SLM* | ||
| SGST 32-8-1.2-4Z | 32.00 | 1.20 | 4 | 1.06 | 8.00 | 8.00 | 2490 | - | - | GFT 1.2J-0.14 | GFT 1.2J-0.14 | ESG-SLM* | ||
| SGST 40-10-0.6-6Z | 40.00 | 0.60 | 6 | 0.50 | 10.00 | 6.00 | 1990 | 27.00 | 1.06 | GFT 0.6 | ESG-SLM* | |||
| SGST 40-10-0.8-6Z | 40.00 | 0.80 | 6 | 0.69 | 10.00 | 12.00 | 1990 | - | - | GFT 0.8J-0.1 | GFT 0.8J-0.1 | ESG-SLM* | ||
| SGST 40-10-1.0-6Z | 40.00 | 1.00 | 6 | 0.90 | 10.00 | 12.00 | 1990 | - | - | GFT 1.0J-0.1 | GFT 1.0J-0.1 | ESG-SLM* | ||
| SGST 40-10-1.2-6Z | 40.00 | 1.20 | 6 | 1.06 | 10.00 | 12.00 | 1990 | - | - | GFT 1.2J-0.14 | GFT 1.2J-0.14 | ESG-SLM* | ||
| SGST 50-13-0.6-9Z | 50.00 | 0.60 | 9 | 0.50 | 13.00 | 6.00 | 1590 | 37.00 | 1.06 | GFT 0.6 | ESG-SLM* | |||
| SGST 50-13-0.8-9Z | 50.00 | 0.80 | 9 | 0.69 | 13.00 | 12.50 | 1590 | - | - | GFT 0.8J-0.1 | GFT 0.8J-0.1 | ESG-SLM* | ||
| SGST 50-13-1.0-9Z | 50.00 | 1.00 | 9 | 0.90 | 13.00 | 12.50 | 1590 | - | - | GFT 1.0J-0.1 | GFT 1.0J-0.1 | ESG-SLM* | ||
| SGST 50-13-1.2-9Z | 50.00 | 1.20 | 9 | 1.06 | 13.00 | 12.50 | 1590 | - | - | GFT 1.2J-0.14 | GFT 1.2J-0.14 | ESG-SLM* | ||
| SGST 63-16-1.0-12Z | 63.00 | 1.00 | 12 | 0.90 | 16.00 | 19.00 | 1260 | - | - | GFT 1.0J-0.1 | GFT 1.0J-0.1 | ESG-SLM* | ||
| SGST 63-16-1.2-12Z | 63.00 | 1.20 | 12 | 1.06 | 16.00 | 19.00 | 1260 | - | - | GFT 1.2J-0.14 | GFT 1.2J-0.14 | ESG-SLM* |
(1) Number of inserts (2) Maximum RPM (3) Master insert identification
- Optional, should be ordered separately
For inserts, see pages: GFT-J (369)
For holders, see pages: SW-C-D-JHP (368) SGST Disk Cutter Washer SW-C-D-JHP Shank Clamping Screw
L8
SW-C-D-JHP
Shanks for SGST Slim Slot Bar Max
Milling Disk Cutters BD DCONMS
LB OAL DRVS
| Designation | DCONMS | BD | LB | OAL | L8 | DRVS(1) | |||
| SW 16C-D32-JHP | 16.00 | 15.00 | 25.00 | 104.00 | 4.00 | 13.0 | SCREW CLAMP-D32-JHP | MM KEY 13X8* | WASHER 8X14.5-D32 |
| SW 20C-D40-JHP | 20.00 | 16.00 | 25.00 | 104.00 | 4.00 | 13.0 | SCREW CLAMP-D40-JHP | MM KEY 13X8* | WASHER 10X15-D40 |
| SW 25C-D50-JHP | 25.00 | 25.00 | - | 115.00 | 5.00 | 20.0 | SCREW CLAMP-D50-JHP | WASHER 13X24-D50 | |
| SW 25C-D63-JHP | 25.00 | 25.00 | - | 115.00 | 5.00 | 20.0 | SCREW CLAMP-D63-JHP | MM KEY 20* | WASHER 16X24-D63 |
(1) Clamping wrench size
- Optional, should be ordered separately
For tools, see pages: SGST (368)
