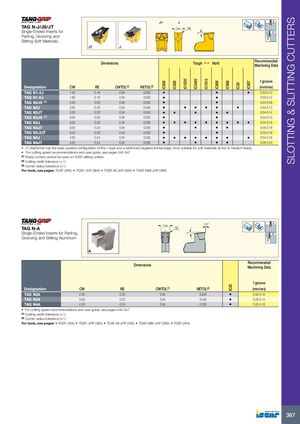

IC830 IC928 IC1030 IC5400 IC1010 IC808 IC908 IC20 IC20 IC807 SLOTTING & SLITTING CUTTERS JT J TAG N-J/JS/JT CW RE Single-Ended Inserts for 7º Parting, Grooving and Slitting Soft Materials Dimensions Tough 1  Hard RecommendedMachining Data f groove Designation CW RE CWTOL(2) RETOL(3) (mm/rev) TAG N1.4J 1.40 0.16 0.04 0.030 • • • 0.03-0.10 TAG N1.6J 1.60 0.16 0.04 0.030 • • 0.03-0.12 TAG N2JS (1) 2.00 0.02 0.04 0.020 • • 0.03-0.08 TAG N2J 2.00 0.20 0.04 0.040 • • • • • • 0.04-0.12 TAG N2JT 2.00 0.20 0.04 0.040 • • • • • 0.04-0.14 TAG N3JS (1) 3.05 0.02 0.04 0.020 • • 0.04-0.10 TAG N3J 3.05 0.20 0.04 0.030 • • • • • • • • • 0.04-0.16 TAG N3JT 3.05 0.20 0.04 0.030 • • • • 0.05-0.18 TAG N3.2JT 3.25 0.20 0.04 0.030 • • 0.05-0.18 TAG N4J 4.00 0.24 0.04 0.030 • • • • • • • • 0.04-0.18 TAG N4JT 4.05 0.24 0.04 0.030 • • • • 0.06-0.20 • JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds. • For cutting speed recommendations and user guide, see pages 542-547 (1) Sharp corners cannot be used on TGSF slitting cutters (2) Cutting width tolerance (+/-) (3) Corner radius tolerance (+/-) For tools, see pages: TGSF (364) • TGSF-JHP (365) • TGSF-M-JHP (365) • TGSF-MM-JHP (366) TAG N-A CW RE 10° Single-Ended Inserts for Parting, 7° Grooving and Slitting Aluminum Dimensions RecommendedMachining Data f groove Designation CW RE CWTOL(1) RETOL(2) (mm/rev) TAG N2A 2.00 0.20 0.04 0.040 • 0.02-0.10 TAG N3A 3.00 0.20 0.04 0.040 • 0.03-0.14 TAG N4A 4.00 0.24 0.04 0.030 • 0.03-0.16 • For cutting speed recommendations and user guide, see pages 542-547 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: • TGSF (364) • TGSF-JHP (365) • TGSF-M-JHP (365) • TGSF-MM-JHP (366) • TGSF (364) 367
