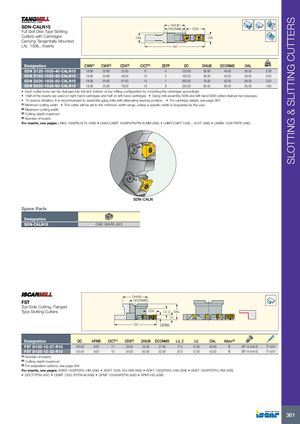

SDN-CALN15 DHUB
Full Slot Disk Type Slotting DCONMS CDX
OAL CW
Carrying Tangentially Mounted
LN.. 1506.. Inserts DC
| Designation | CWN(1) | CWX(2) | CDX(3) | CICT(4) | ZEFP | DC | DHUB | DCONMS | OAL | kg |
| SDN D125-1925-40-CALN15 | 18.90 | 25.60 | 32.50 | 8 | 4 | 125.00 | 56.00 | 40.00 | 26.00 | 0.39 |
| SDN D160-1925-40-CALN15 | 18.90 | 25.60 | 48.50 | 10 | 5 | 160.00 | 56.00 | 40.00 | 26.00 | 0.00 |
| SDN D200-1925-50-CALN15 | 18.90 | 25.60 | 61.50 | 14 | 7 | 200.00 | 70.00 | 50.00 | 26.00 | 3.03 |
| SDN D250-1925-60-CALN15 | 18.90 | 25.60 | 79.00 | 16 | 8 | 250.00 | 85.00 | 60.00 | 26.00 | 4.80 |
- Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly
- Half of the inserts are used on right-hand cartridges and half on left-hand cartridges
- Gang-mill assembly SDN and left-hand SSB cutters feature two keyways.
- To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position.
- For cartridge details, see page 363
(1) Minimum cutting width The cutter will be set to the minimum width range, unless a specific width is requested by the user (2) Maximum cutting width (3) Cutting depth maximum (4) Number of inserts
For inserts, see pages: LNKX 1506PN-N PL (486) LNKX/LNMT 1506PNTN/PN-N MM (486) LNMT/LNHT 1506...-N HT (488) LNMW 1506 PNTN (486)
SDN-CALN
Spare Parts
Designation
SDN-CALN15 CA90 1928-R/L-LN15
DHUB FST DCONMS
Top-Side Cutting, Flanged
Type Slotting Cutters CDX LU_2 OAL
LU DC APMX
| Designation | DC | APMX | CICT(1) | CDX(2) | DHUB DCONMS | LU_2 | LU | OAL | Arbor(3) | ||||
| FST D100-12-27-R10 | 100.00 | 9.00 | 11 | 25.00 | 55.00 | 27.00 | 17.5 | 12.00 | 40.00 | B | SR 14-544/S | T-15/51 | |
| FST D125-12-32-R10 | 125.00 | 9.00 | 13 | 34.00 | 65.00 | 32.00 | 20.0 | 12.00 | 45.00 | B | SR 14-544/S | T-15/51 |
(1) Number of inserts (2) Cutting depth maximum (3) For adaptation options, see page 548
For inserts, see pages: ADKR 1505PDR/L-HM (456) ADKT 1505..R/L-HM (459) ADKT 1505PDR/L-HM (458) ADKT 1505PDTR/L-RM (458)
- QDCT-PDN (497)
- QDMT 1205..PDTN-M (498)
- QPMT 100408PDTN (495)
- XPMT-HQ (496)
