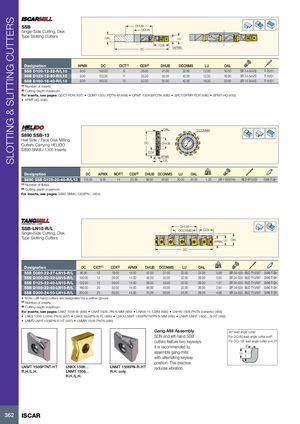

| SSB Single-Side Cutting, Disk Type Slotting Cutters | OAL | DCON DHUB DC | CDX | APMX LU | ||||||
| Designation | APMX | DC | CICT(1) | CDX(2) | DHUB | DCONMS | LU | OAL | ||
| SSB D100-12-32-R/L10 | 9.00 | 100.00 | 9 | 26.00 | 47.00 | 32.00 | 12.00 | 16.00 | SR 14-544/S | T-15/51 |
| SSB D125-12-40-R/L10 | 9.00 | 125.00 | 11 | 35.00 | 55.00 | 40.00 | 12.00 | 16.00 | SR 14-544/S | T-15/51 |
| SSB D160-16-40-R/L10 | 9.00 | 160.00 | 13 | 52.00 | 55.00 | 40.00 | 16.00 | 20.00 | SR 14-544/S | T-15/51 |
(1) Number of inserts (2) Cutting depth maximum
For inserts, see pages: QDCT-PDN (497) QDMT 1205..PDTN-M (498) QPMT 100408PDTN (495) SPCT/SPMR PDR (496) SPMT-HQ (495)
- XPMT-HQ (496)
| S890 SSB-13 Half Side / Face Disk Milling Cutters Carrying HELIDO S890 SNMU 1305 Inserts | OAL DC CDX DHUB LU APMX | DCONMS | |||||||
| Designation | DC | APMX | NOF(1) | CDX(2) | DHUB DCONMS | LU OAL kg | |||
| S890SSB D125-20-40-R/L13 | 125.00 | 9.00 | 14 | 33.00 | 56.00 40.00 | 20.00 24.00 1.20 | SR 11800745 | BLD IP15/S7 | SW6-T-SH |
(1) Number of flutes (2) Cutting depth maximum
For inserts, see pages: S890 SNMU 1305PN... (504)
| SSB-LN15-R/L Single-Side Cutting, Disk Type Slotting Cutters | DCON DHUB DC | MS CDX | LU APMX | OAL | ||||||||
| Designation | DC | CICT(1) | CDX(2) | APMX | DHUB | DCONMS | LU | OAL | kg | |||
| SSB D080-22-27-LN15-R/L | 80.00 | 10 | 18.00 | 14.00 | 42.00 | 27.00 | 22.00 | 24.00 | 0.56 | SR 34-535 | BLD T15/M7 | SW6-T-SH |
| SSB D100-22-32-LN15-R/L | 100.00 | 12 | 26.00 | 14.00 | 48.00 | 32.00 | 22.00 | 26.00 | 0.95 | SR 34-535 | BLD T15/M7 | SW6-T-SH |
| SSB D125-22-40-LN15-R/L | 125.00 | 15 | 35.00 | 14.00 | 56.00 | 40.00 | 22.00 | 26.00 | 1.51 | SR 34-535 | BLD T15/M7 | SW6-T-SH |
| SSB D160-22-40-LN15-R/L | 160.00 | 20 | 52.00 | 14.00 | 56.00 | 40.00 | 22.00 | 26.00 | 2.64 | SR 34-535 | BLD T15/M7 | SW6-T-SH |
| SSB D200-24-50-LN15-R/L | 200.00 | 25 | 65.00 | 14.00 | 70.00 | 50.00 | 24.00 | 28.00 | 4.66 | SR 34-535 | BLD T15/M7 | SW6-T-SH |
- Note: Left-hand cutters are designated by a yellow groove
(1) Number of inserts (2) Cutting depth maximum
For inserts, see pages: LNAT 1506-W (489) LNAT 1506..PN-N MM (489) LNAW-15 (CBN) (485) LNHW 1506 PNTN (ceramic) (488)
- LNKX 1506 1.5X45 PN-N (487)
- LNKX 1506PN-N PL (486)
- LNKX/LNMT 1506PNTN/PN-N MM (486)
- LNMT/LNHT 1506...-N HT (488)
- LNMT/LNHT 1506PN-R HT (487)
- LNMW 1506 PNTN (486)
Gang-Mill Assembly 90º lead angle cutter SDN and left-hand SSB For DC=80 lead angle cutter a=6º cutters feature two keyways. For DC≥100 lead angle cutter a=4.5º It is recommended to a°
assemble gang-mills
14 with alternating keyway 7
position. This practice
| LNMT 1506PTNT-HT | LNKX 1506... | LNMT 1506PN-R-HT | reduces vibration. |
| R.H./L.H. | LNMT 1506... | R.H. only |
R.H./L.H.
