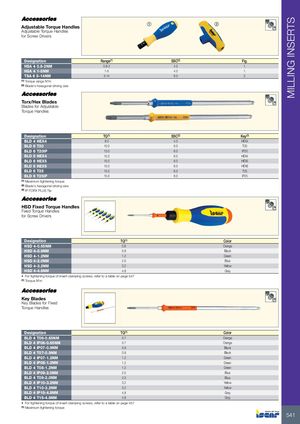

| Adjustable Torque Handles Adjustable Torque Handles for Screw Drivers | 1 | 2 | ||
| Designation | Range(1) | SSC(2) | Fig. | |
| HSA 4 0.8-2NM | 0.8-2 | 4.0 | 1. | |
| HSA 4 1-5NM | 1-5 | 4.0 | 1. | |
| TSA 6 5-14NM | 5-14 | 6.0 | 2. |
(1) Torque range N*m (2) Blade's hexagonal driving size
Torx/Hex Blades
Blades for Adjustable
Torque Handles
| Designation | TQ(1) | SSC(2) | Key(3) |
| BLD 4 HEX4 | 8.0 | 4.0 | HEX4 |
| BLD 6 T20 | 10.0 | 6.0 | T20 |
| BLD 6 T20IP | 13.0 | 6.0 | IP20 |
| BLD 6 HEX4 | 15.0 | 6.0 | HEX4 |
| BLD 6 HEX5 | 15.0 | 6.0 | HEX5 |
| BLD 6 HEX6 | 15.0 | 6.0 | HEX6 |
| BLD 6 T25 | 15.0 | 6.0 | T25 |
| BLD 6 T25IP | 15.0 | 6.0 | IP25 |
(1) Maximum tightening torque (2) Blade's hexagonal driving size (3) IP-TORX PLUS Tip
| HSD Fixed Torque Handles Fixed Torque Handles for Screw Drivers | ||
| Designation | TQ(1) | Color |
| HSD 4-0.65NM | 0.6 | Orange |
| HSD 4-0.9NM | 0.9 | Black |
| HSD 4-1.2NM | 1.2 | Green |
| HSD 4-2.0NM | 2.0 | Blue |
| HSD 4-3.2NM | 3.2 | Yellow |
| HSD 4-4.8NM | 4.8 | Grey |
- For tightening torque of insert clamping screws, refer to a table on page 547
(1) Torque N*m
| Key Blades Key Blades for Fixed Torque Handles | ||
| Designation | TQ(1) | Color |
| BLD 4 T06-0.65NM | 0.7 | Orange |
| BLD 4 IP06-0.65NM | 0.7 | Orange |
| BLD 4 IP07-0.9NM | 0.9 | Black |
| BLD 4 T07-0.9NM | 0.9 | Black |
| BLD 4 IP07-1.2NM | 1.2 | Green |
| BLD 4 IP08-1.2NM | 1.2 | Green |
| BLD 4 T08-1.2NM | 1.2 | Green |
| BLD 4 IP09-2.0NM | 2.0 | Blue |
| BLD 4 T09-2.0NM | 2.0 | Blue |
| BLD 4 IP10-3.2NM | 3.2 | Yellow |
| BLD 4 T10-3.2NM | 3.2 | Yellow |
| BLD 4 IP15-4.8NM | 4.8 | Grey |
| BLD 4 T15-4.8NM | 4.8 | Grey |
- For tightening torque of insert clamping screws, refer to a table on page 457
(1) Maximum tightening torque
