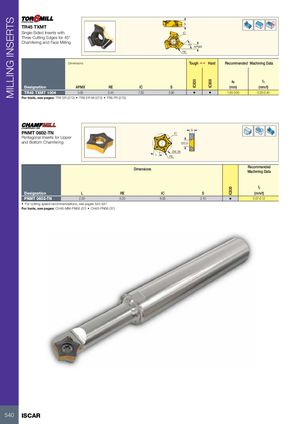

MILLING INSERTS IC830 IC808 IC830 Rd° S TR45 TXMT Single-Sided Inserts with IC Three Cutting Edges for 45° Chamfering and Face Milling 45° APMX RE Dimensions Tough 1  Hard Recommended Machining Data ap fz Designation APMX RE IC S (mm) (mm/t) TR45 TXMT 1004 3.00 0.40 7.30 3.90 • • 1.00-3.00 0.20-0.40 For tools, see pages: TR6 ER (272) • TR6 ER-M (273) • TR6 FR (275) PNMT 0602-TN SIC Pentagonal Inserts for Upper and Bottom Chamfering Ø2.9 Ø8.36 L RE Dimensions RecommendedMachining Data fz Designation L RE IC S (mm/t) PNMT 0602-TN 2.30 0.20 6.00 2.10 • 0.07-0.12 • For cutting speed recommendations, see pages 542-547 For tools, see pages: CH45-MM-PN06 (37) • CH45-PN06 (37) 540 ISCAR
