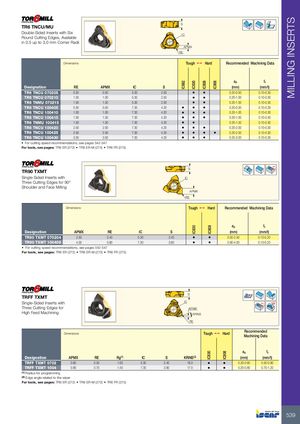

IC882 IC830IC830 IC808 IC808IC830 IC908 IC808 MILLING INSERTS S TR6 TNCU/MU Double-Sided Inserts with Six IC Round Cutting Edges, Available in 0.5 up to 3.0 mm Corner Radii APMX RE Dimensions Tough 1  Hard Recommended Machining Data ap fz Designation RE APMX IC S (mm) (mm/t) TR6 TNCU 070205 0.50 0.50 5.30 2.50 • • 0.20-0.50 0.10-0.30 TR6 TNCU 070210 1.00 1.00 5.30 2.50 • • 0.20-1.00 0.10-0.30 TR6 TNMU 070215 1.50 1.50 5.30 2.50 • • 0.20-1.50 0.10-0.30 TR6 TNCU 100405 0.50 0.50 7.30 4.20 • • • 0.20-0.50 0.10-0.30 TR6 TNCU 100410 1.00 1.00 7.30 4.20 • • • 0.20-1.00 0.10-0.30 TR6 TNCU 100415 1.50 1.50 7.30 4.20 • • • 0.20-1.50 0.10-0.30 TR6 TNMU 100415 1.50 1.50 7.30 4.20 • • 0.20-1.50 0.10-0.30 TR6 TNCU 100420 2.00 2.00 7.30 4.20 • • • 0.20-2.00 0.10-0.30 TR6 TNCU 100425 2.50 2.50 7.30 4.20 • • • • 0.20-2.50 0.10-0.30 TR6 TNCU 100430 3.00 3.00 7.30 4.20 • • • 0.20-3.00 0.10-0.30 • For cutting speed recommendations, see pages 542-547 For tools, see pages: TR6 ER (272) • TR6 ER-M (273) • TR6 FR (275) Rd° S TR90 TXMT Single-Sided Inserts with IC Three Cutting Edges for 90° Shoulder and Face Milling APMX RE Dimensions Tough 1  Hard Recommended Machining Data ap fz Designation APMX RE IC S (mm) (mm/t) TR90 TXMT 070204 2.50 0.40 5.30 2.40 • • 0.50-2.50 0.10-0.20 TR90 TXMT 100408 4.00 0.80 7.30 3.90 • • 0.90-4.00 0.10-0.20 • For cutting speed recommendations, see pages 542-547 For tools, see pages: TR6 ER (272) • TR6 ER-M (273) • TR6 FR (275) S TRFF TXMT Single-Sided Inserts with IC Rd° Three Cutting Edges for APMX High Feed Machining KRINS RE Dimensions Tough 1  Hard RecommendedMachining Data ap fz Designation APMX RE Rg(1) IC S KRINS(2) (mm) (mm/t) TRFF TXMT 0702 0.60 0.50 1.00 5.30 2.40 18.0 • • 0.20-0.60 0.50-0.80 TRFF TXMT 1004 0.80 0.70 1.40 7.30 3.90 17.0 • • 0.20-0.80 0.70-1.20 (1) Radius for programming (2) Edge angle related to the wiper For tools, see pages: TR6 ER (272) • TR6 ER-M (273) • TR6 FR (275) 539
