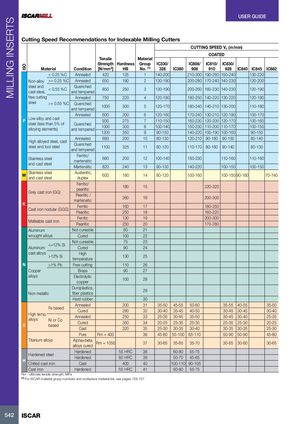

Cutting Speed Recommendations for Indexable Milling Cutters

							CUTTI	NG SPEE COAT	D Vc (m/ ED	min)
		Tensile		Material
ISO Material	Condition	Strength [N/mm2]	Hardness HB	Group No.(1)	IC330/ 328	IC380	IC808/ 908	IC810/ 910	IC830/ 928	IC840	IC845	IC882
< 0.25 %C	Annealed	420	125	1	140-200		210-300	190-260	150-240		130-220
Non-alloy >= 0.25 %C	Annealed	650	190	2	130-190		200-280	170-240	140-230		120-200
steel and cast steel, < 0.55 %C	Quenched and tempered	850	250	3	130-190		200-260	160-230	140-230		120-190
free cutting	Annealed	750	220	4	120-180		180-250	140-220	130-220		120-180
steel >= 0.55 %C	Quenched and tempered	1000	300	5	120-170		180-240	140-210	130-200		110-180
	Annealed	600	200	6	120-160		170-240	130-210	120-190		100-170
P Low alloy and cast		930	275	7	110-150		160-230	120-200	120-170		100-160
steel (less than 5% of lli lt	Quenched	1000	300	8	100-140		150-230	110-200	110-170		100-150
aoyng eemens)	and tempered	1200	350	9	90-150		140-220	100-190	100-160		90-150
High alloyed steel, cast	Annealed	680	200	10	80-130		120-210	90-180	90-150		80-140
steel and tool steel	Quenched and tempered	1100	325	11	80-120		110-170	80-160	90-140		80-130
Stainless steel	Ferritic/ martensitic	680	200	12	100-140		150-230		110-160		110-160
and cast steel	Martensitic	820	240	13	90-130		140-220		100-150		100-150
M Stainless steel and cast steel	Austenitic, duplex	600	180	14	80-120		100-160		100-150	90-160		70-140
Grey cast iron (GG)	Ferritic/ pearlitic		180	15				220-320
	Pearlitic / martensitic		260	16				200-300
K Cast iron nodular (GGG)	Ferritic		160	17				180-250
	Pearlitic		250	18				160-220
	Ferritic		130	19				200-300
Malleable cast iron	Pearlitic		230	20				170-280
Aluminum	Not cureable		60	21
wrought alloys	Cured		100	22
	Not cureable		75	23
Aluminum	Cured		90	24
cast alloys >12% Si	High temperature		130	25
N >1% Pb	Free cutting		110	26
Copper	Brass		90	27
alloys	Electrolytic copper		100	28
	Duroplastics
	,			29
Non metallic	fiberplastics
	Hard rubber			30
Fe based	Annealed		200	31	35-50	45-55	50-60		35-55	40-55		35-50
High temp	Cured		280	32	30-40	35-45	40-50		30-45	30-45		30-40
.	Annealed		250	33	25-35	30-45	35-50		30-45	30-40		25-35
alloys Ni or Co	Cured		350	34	20-25	25-35	25-35		25-35	25-30		20-25
S based	Cast		320	35	25-30	30-35	30-40		30-35	30-35		25-30
	Pure	Rm = 400		36	45-80	55-100	65-110		50-90	50-90		45-80
Titanium alloys	Alpha+beta
	alloys cured	Rm = 1050		37	30-65	35-65	35-70		30-65	30-60		30-65
Hdd tl	Hardened		55 HRC	38		60-80	55-75
H arene see	Hardened		60 HRC	39		50-70	45-65
Chilled cast iron	Cast		400	40		100-110	90-105
Cast iron	Hardened		55 HRC	41		60-80	55-75

Rm - ultimate tensile strength, MPa (1) For ISCAR material group numbers and workpiece material list, see pages 728-757
