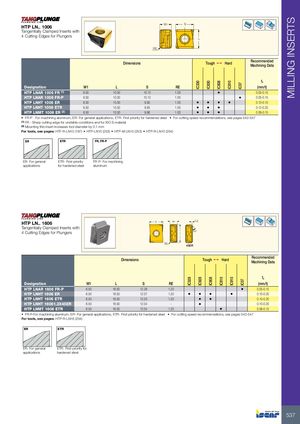

MILLING INSERTS
W1 S
HTP LN.. 1006
Tangentially Clamped Inserts with
4 Cutting Edges for Plungers
L

RE

Recommended
Dimensions Tough 1 Hard
Machining Data

fz


IC330
IC830
IC808
IC810
IC07
Designation W1 L S RE (mm/t)
HTP LNAR 1006 FR (1) 6.50 10.50 10.13 1.00 • 0.05-0.15
HTP LNAR 1006 FR-P 6.50 10.50 10.13 1.00 • 0.05-0.15
HTP LNHT 1006 ER 6.50 10.50 9.93 1.00 • • • • 0.10-0.15
HTP LNHT 1006 ETR 6.50 10.50 9.93 1.00 • • • 0.12-0.20
HTP LNMT 1006 ER (2) 6.50 10.50 9.96 1.00 • • • 0.08-0.15
• FR-P - For machining aluminum, ER- For general applications, ETR- First priority for hardened steel • For cutting speed recommendations, see pages 542-547
(1) FR - Sharp cutting edge for unstable conditions and for ISO S material
(2) Mounting this insert increases tool diameter by 0.1 mm
For tools, see pages: HTF-R-LN10 (197) • HTP-LN10 (253) • HTP-M-LN10 (253) • HTP-R-LN10 (254)

ER ETR FR, FR-P


ER- For general ETR- First priority FR-P- For machining
applications for hardened steel aluminum


W1 1.2
S
HTP LN.. 1606
Tangentially Clamped Inserts with
45°
4 Cutting Edges for Plungers L

RE
45ER

Recommended
Dimensions Tough 1 Hard
Machining Data

fz
IC328
IC928
IC908
IC810
IC910
IC07


Designation W1 L S RE (mm/t)
HTP LNAR 1606 FR-P 6.50 16.50 12.28 1.20 • 0.05-0.15
HTP LNHT 1606 ER 6.50 16.50 12.07 1.20 • • • • 0.10-0.20
HTP LNHT 1606 ETR 6.50 16.50 12.03 1.20 • • 0.10-0.20
HTP LNHT 16061.2X45ER 6.50 16.50 12.04 - • 0.10-0.20
HTP LNMT 1606 ETR 6.50 16.50 12.04 1.20 • 0.08-0.15
• FR-P-For machining aluminum, ER- For general applications, ETR- First priority for hardened steel • For cutting speed recommendations, see pages 542-547
For tools, see pages: HTP-R-LN16 (254)

ER ETR


ER- For general ETR- First priority for
applications hardened steel


537
