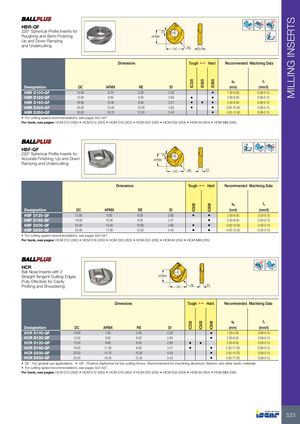

IC328IC328IC928 IC928IC928 IC908IC908IC908 MILLING INSERTS Rd° HBR-QF 220° Spherical Profile Inserts for 20° Roughing and Semi-Finishing, APMX Up and Down Ramping and Undercutting DC RE S1 Dimensions Tough 1  Hard Recommended Machining Data ap fz Designation DC APMX RE S1 (mm) (mm/t) HBR D100-QF 10.00 6.70 5.00 2.30 • 1.50-5.00 0.08-0.15 HBR D120-QF 12.00 8.00 6.00 2.60 • • 2.00-6.00 0.08-0.15 HBR D160-QF 16.00 10.30 8.00 3.37 • • • 2.50-8.00 0.08-0.15 HBR D200-QF 20.00 13.40 10.00 4.65 • • 3.00-10.00 0.08-0.15 HBR D250-QF 25.00 16.70 12.50 5.40 • 4.00-12.50 0.08-0.15 • For cutting speed recommendations, see pages 542-547 For tools, see pages: HCM D10 (262) • HCM D12 (262) • HCM D16 (262) • HCM D20 (263) • HCM D25 (263) • HCM-M (264) • HCM-MM (265) Rd° HBF-QF 220° Spherical Profile Inserts for 20° Accurate Finishing, Up and Down APMX Ramping and Undercutting DC RE S1 Dimensions Tough 1  Hard Recommended Machining Data ap fz Designation DC APMX RE S1 (mm) (mm/t) HBF D120-QF 12.00 8.00 6.00 2.60 • • 2.00-6.00 0.03-0.15 HBF D160-QF 16.00 10.30 8.00 3.37 • 2.50-8.00 0.03-0.15 HBF D200-QF 20.00 13.40 10.00 4.65 • • 3.00-10.00 0.03-0.15 HBF D250-QF 25.00 17.00 12.50 5.40 • • 4.00-12.50 0.03-0.15 • For cutting speed recommendations, see pages 542-547 For tools, see pages: HCM D12 (262) • HCM D16 (262) • HCM D20 (263) • HCM D25 (263) • HCM-M (264) • HCM-MM (265) HCR Ball Nose Inserts with 2 Straight Tangent Cutting Edges APMX (Fully Effective) for Cavity Profiling and Shouldering DC RE S1 Dimensions Tough 1  Hard Recommended Machining Data ap fz Designation DC APMX RE S1 (mm) (mm/t) HCR D100-QF 10.00 7.00 5.00 2.30 • 1.50-5.00 0.08-0.15 HCR D120-QF 12.00 9.00 6.00 2.60 • 2.00-8.50 0.08-0.15 HCR D120-QP 12.00 9.80 6.00 2.60 • • 2.00-8.50 0.08-0.15 HCR D160-QF 16.00 11.30 8.00 3.37 • • 2.50-11.00 0.08-0.15 HCR D200-QF 20.00 14.70 10.00 4.65 • 3.00-14.00 0.08-0.15 HCR D250-QF 25.00 18.40 12.50 5.40 • 4.00-17.50 0.08-0.15 • QF - For general use applications • QP - Positive chipformer for low cutting forces. Recommended for machining aluminum, titanium and other exotic materials • For cutting speed recommendations, see pages 542-547 For tools, see pages: HCM D10 (262) • HCM D12 (262) • HCM D16 (262) • HCM D20 (263) • HCM D25 (263) • HCM-M (264) • HCM-MM (265) 533
