Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 218

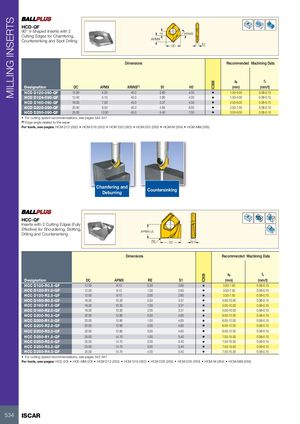

MILLING INSERTS IC908 IC908 HCD-QF 90° V-Shaped Inserts with 2Cutting Edges for Chamfering, H5 KRINS Countersinking and Spot Drilling APMX DC S1 Dimensions Recommended Machining Data ap fz Designation DC APMX KRINS(1) S1 H5 (mm) (mm/t) HCD D120-090-QF 12.00 5.00 45.0 2.60 4.00 • 1.50-4.00 0.08-0.15 HCD D124-090-QF 12.40 5.10 45.0 2.60 4.00 • 1.50-4.00 0.08-0.15 HCD D160-090-QF 16.00 7.50 45.0 3.37 4.50 • 2.00-6.00 0.08-0.15 HCD D205-090-QF 20.50 9.50 45.0 4.65 6.00 • 2.50-7.00 0.08-0.15 HCD D250-090-QF 25.00 12.00 45.0 5.40 7.00 • 3.00-9.00 0.08-0.15 • For cutting speed recommendations, see pages 542-547 (1) Edge angle related to the wiper For tools, see pages: HCM D12 (262) • HCM D16 (262) • HCM D20 (263) • HCM D25 (263) • HCM-M (264) • HCM-MM (265) Chamfering andDeburring Countersinking HCC-QF Inserts with 2 Cutting Edges (Fully Effective) for Shouldering, Slotting, APMX/LE Drilling and Countersinking RE DC S1 Dimensions Recommended Machining Data ap fz Designation DC APMX RE S1 (mm) (mm/t) HCC D120-R0.5-QF 12.00 8.10 0.50 2.60 • 3.50-7.50 0.08-0.15 HCC D120-R1.0-QF 12.00 8.10 1.00 2.60 • 3.50-7.50 0.08-0.15 HCC D120-R2.0-QF 12.00 8.10 2.00 2.60 • 3.50-7.50 0.08-0.15 HCC D160-R0.5-QF 16.00 10.30 0.50 3.37 • 5.00-10.00 0.08-0.15 HCC D160-R1.0-QF 16.00 10.30 1.00 3.37 • 5.00-10.00 0.08-0.15 HCC D160-R2.0-QF 16.00 10.30 2.00 3.37 • 5.00-10.00 0.08-0.15 HCC D200-R0.5-QF 20.00 12.80 0.50 4.65 • 6.00-12.00 0.08-0.15 HCC D200-R1.0-QF 20.00 12.80 1.00 4.65 • 6.00-12.00 0.08-0.15 HCC D200-R2.0-QF 20.00 12.80 2.00 4.65 • 6.00-12.00 0.08-0.15 HCC D200-R3.0-QF 20.00 12.80 3.00 4.65 • 6.00-12.00 0.08-0.15 HCC D250-R1.0-QF 25.00 14.70 1.00 5.40 • 7.50-15.50 0.08-0.15 HCC D250-R2.0-QF 25.00 14.70 2.00 5.40 • 7.50-15.50 0.08-0.15 HCC D250-R3.0-QF 25.00 14.70 3.00 5.40 • 7.50-15.50 0.08-0.15 HCC D250-R4.0-QF 25.00 14.70 4.00 5.40 • 7.50-15.50 0.08-0.15 • For cutting speed recommendations, see pages 542-547 For tools, see pages: HCE (23) • HCE-MM (23) • HCM D12 (262) • HCM D16 (262) • HCM D20 (263) • HCM D25 (263) • HCM-M (264) • HCM-MM (265) 534 ISCAR
