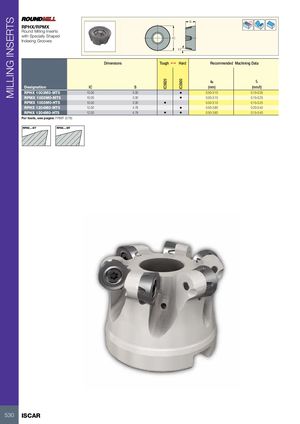

MILLING INSERTS IC5820 IC5500 S Rd° RPHX/RPMX Round Milling Inserts with Specially Shaped IC Indexing Grooves 11˚ Dimensions Tough 1  Hard Recommended Machining Data ap fz Designation IC S (mm) (mm/t) RPHX 1003M0-MT5 10.00 3.30 • 0.50-3.10 0.15-0.35 RPMX 1003M0-MT5 10.00 3.30 • 0.50-3.10 0.15-0.25 RPMX 1003M0-HT5 10.00 3.30 • 0.50-3.10 0.15-0.25 RPHX 1204M0-MT5 12.00 4.78 • 0.50-3.80 0.20-0.45 RPHX 1204M0-HT5 12.00 4.78 • • 0.50-3.80 0.15-0.40 For tools, see pages: FRMT (278) RPHX...-HT RPHX...-MT 530 ISCAR
