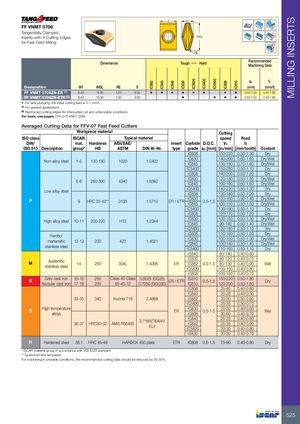

FF VNMT 0706 Tangentially Clamped Inserts with 4 Cutting Edges for Fast Feed Milling					S	W	IN 1 RE	SL						Rd°
	Dimensions					Toug	h1	Hard				Reco Machi	mm nin	ended g Data
Designation	W1 INSL RE	S	IC882	IC845	IC840	IC830	IC5820	IC5400	IC5500	IC808	IC810	ap (mm)		fz (mm/t)
FF VNMT 0706ZN-ER(1)	6.40 15.00 1.00	9.05	•	•	•	•	•	•		•	•	0.50-1.50		0.40-1.80
FF VNMT 0706ZN-ETR(2)	6.40 15.00 1.00	9.05				•			•	•	•	0.50-1.50		0.40-1.80

For side plunging, the initial cutting feed is 0.1 mm/t

(1) For general applications (2) Reinforced cutting edges for interrupted cut and unfavorable conditions

For tools, see pages: FFV-D-R-VN07 (308)

Averaged Cutting Data for FFV-07 Fast Feed Cutters

		Work	piece materi	al					Cutting
ISO class		ISCAR		Typical	material				speed	Feed
DIN/		mat.	Hardness	AISI/SAE/		Insert	Carbide	D.O.C.	Vc	fz
ISO 513	Description	group	HB	ASTM	DIN W.-Nr.	type	grade	ap [mm]	[m/min]	[mm/tooth]	Coolant
							IC808		150-220	0.50-1.30	Dry
	Non-alloy steel	1-5	130-180	1020	1.0402		IC830 IC845		140-200 130-180	0.60-1.60 0.70-1.80	Dry/Wet Dry/Wet
							IC5400		150-250	0.50-1.10	Dry
							IC808		140-200	0.50-1.20	Dry
		6-8	260-300	4340	1.6582		IC830 IC845		120-180 100-160	0.50-1.50 0.60-1.60	Dry/Wet Dry/Wet
	L ll tl						IC5400		140-220	0.50-1.30	Dry
	ow aoy see						IC808		130-180	0.50-1.20	Dry
P		9	HRC 35-42	3135	1.5710	ER / ETR	IC830 IC845	0.5-1.5	120-160 100-150	0.50-1.40 0.50-1.50	Dry/Wet Dry/Wet
							IC5400		130-190	0.50-1.10	Dry
	High alloy steel	10-11	200-220	H13	1.2344		IC808 IC830 IC845		120-170 100-150 90-140	0.50-1.20 0.50-1.30 0.50-1.40	Dry Dry/Wet Dry/Wet
							IC5400		120-180	0.50-1.10	Dry
	Ferritic/						IC808		110-160	0.50-1.20	Dry
	martensitic	12-13	200	420	1.4021		IC830		100-150	0.50-1.30	Dry/Wet
							IC845		100-140	0.50-1.40	Dry/Wet
	stainless steel						IC5400		110-160	0.50-1.10	Dry
							IC840		80-140	0.40-0.60
M	Austenitic til tl	14	200	304L	1.4306	ER	IC830 IC882	0.5-1.5	80-120 80-130	0.40-0.70 0.40-0.90	Wet
	saness see						IC5820		100-160	0.40-0.80
							IC808		100-160	0.40-0.70
K	Grey cast iron Nodular cast iron	15-16 17-18	250 200	Class 40 Class 65-45-12	0.6025 (GG25) 0.7050 (GGG50)	ER / ETR	IC810 IC810	0.5-1.5	150-220 120-200	0.50-1.80 0.50-1.80	Dry
							IC808		25-40	0.40-0.60
							IC840		25-35	0.40-0.50
		33-35	340	Inconel 718	2.4668		IC882 IC5820		20-30 25-35	0.50-0.80 0.50-0.70
	High temperature						IC830		20-30	0.40-0.60
S	alloys					ER	IC808	0.5-1.5	30-60	0.40-0.70	Wet
					37165Ti6AI4V		IC840		25-35	0.40-0.60
		36-37	HRC30-32	AMS R56400	.(		IC882		25-35	0.40-0.90
					ELI)		IC5820		20-30	0.40-0.80
							IC830		20-30	0.40-0.70
H	Hardened steel	38.1	HRC 45-49	HARDOX	450 plate	ETR	IC808	0.5-1.5	75-90	0.40-0.80	Dry

* ISCAR material group in accordance with VDI 3323 standard ** Quenched and tempered For machining in unstable conditions, the recommended cutting data should be reduced by 20-30%
