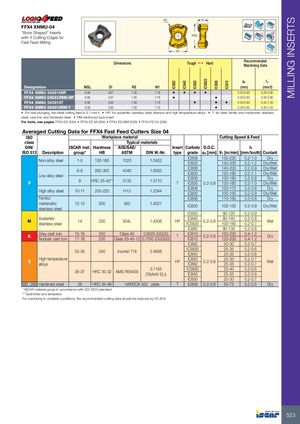

FX4 XNMU-04			R	E			S1
one Shaped" Inserts ith 4 Cutting Edges for ast Feed Milling				W1		INSL					Rd°
	Dime	nsions			To	ugh1	Ha	rd		Reco Machi	mmended ning Data
Designation	INSL S1	RE	W1	IC882	IC840	IC830	IC5820	IC808	IC810	ap (mm)	fz (mm/t)
FFX4 XNMU 040310HP	9.58 3.97	1.00	7.16	•	•	•	•			0.20-0.80	0.20-0.90
FFX4 XNMU 040310RM-HP	9.58 3.97	1.00	7.16	•				•		0.20-0.80	0.20-0.90
FFX4 XNMU 040310T	9.58 3.95	1.00	7.16			•		•	•	0.20-0.80	0.40-1.20
FFX4 XNMU 040310RM-T	9.58 3.95	1.00	7.16					•		0.20-0.80	0.40-1.20

For side plunging, the initial cutting feed is 0.1 mm/t
HP- for austenitic stainless steel, titanium and high temperature alloys
T- for steel, ferritic and martensitic stainless

steel, cast iron and hardened steel RM-reinforced type insert

For tools, see pages: FFX4 ED (294) FFX4 ED-M (294) FFX4 ED-MM (295) FFX4 FD-04 (295)

Averaged Cutting Data for FFX4 Fast Feed Cutters Size 04

ISO			Workp	iece material					Cutting Sp	eed & Feed
class				Typical	materials
DIN/		ISCAR mat.	Hardness	AISI/SAE/		Insert	Carbide	D.O.C.		fz
ISO 513	Description	group	HB	ASTM	DIN W.-Nr.	type	grade	ap [mm]	Vc [m/min]	[mm/tooth]	Coolant
	Non-alloy steel	1-5	130-180	1020	1.0402		IC808 IC830		150-220 140-200	0.2-1.0 0.2-1.2	Dry Dry/Wet
		68	260300	4340	16582		IC808		140-200	0.2-0.9	Dry/Wet
	Low allo steel	-	-		.		IC830		120-180	0.2-1.1	Dry/Wet
	y	9	HRC 35-42	3135	15710		IC808		130-180	0.2-0.8	Dry
P					.	T	IC830	0.2-0.8	120-160	0.2-1.0	Dry/Wet
	High alloy steel	10-11	200-220	H13	1.2344		IC808 IC830		120-170 100-150	0.2-0.8 0.2-0.9	Dry Dry/Wet
	Ferritic/						IC808		110-160	0.2-0.8	Dry
	martensitic stainless steel	12-13	200	420	1.4021		IC830		100-150	0.2-0.9	Dry/Wet
							IC830		80-120	0.2-0.9
M	Austenitic	14	200	304L	14306	HP	IC840	0208	80-140	0.2-0.8	Wt
	stainless steel				.		IC5820	.-.	100-160	0.2-0.7	e
							IC882		80-130	0.2-0.8
K	Grey cast iron	15-16	250	Class 40	0.6025 (GG25)	T	IC810	02-08	150-220	0.4-1.2	Dr
	Nodular cast iron	17-18	200	Class 65-45-12	0.7050 (GGG50)		IC810	..	120-200	0.4-1.2	y
							IC882		20-30	0.2-0.7
		3335	340	Il 718	24668		IC5820		25-35	0.2-0.6
		-		ncone	.		IC840		25-35	0.2-0.6
S	High temperature					HP	IC830	02-08	25-30	0.2-0.7	Wet
	alloys						IC882	..	25-35	0.2-0.7
			HRC	AMS R	3.7165		IC5820		25-40	0.2-0.6
		36-37	30-32	56400	(Ti6AI4V ELI)		IC840		25-35	0.2-0.6
							IC830		20-30	0.2-0.7
H	Hardened steel	38	HRC 45-49	HARDOX	450 plate	T	IC808	0.2-0.8	50-75	0.2-0.5	Dry

* ISCAR material group in accordance with VDI 3323 standard ** Quenched and tempered For machining in unstable conditions, the recommended cutting data should be reduced by 20-30%
