| IC | ||||||||||||

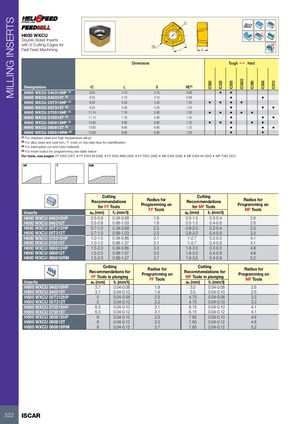

| 600 WXCU ouble-Sided Inserts | R | d° | ||||||||||
| ith 6 Cutting Edges for ast Feed Machining | RE | L | S | |||||||||
| Dime | nsions | Toug | h1 | Hard | ||||||||
| Designation | IC | L | S | RE(4) | IC882 | IC330 | IC830 | IC5820 | IC380 | IC808 | IC810 | |
| H600 WXCU 040310HP(1) | 6.25 | 4.13 | 3.10 | 0.96 | • | • | ||||||
| H600 WXCU 040310T(2) | 6.25 | 4.13 | 3.10 | 0.96 | • | • | ||||||
| H600 WXCU 05T312HP(1) | 8.33 | 5.50 | 4.20 | 1.20 | • | • | • | • | ||||
| H600 WXCU 05T312T(2) | 8.33 | 5.50 | 4.20 | 1.20 | • | • | • | |||||
| H600 WXCU 070515HP(1) | 11.14 | 7.16 | 5.90 | 1.50 | • | • | • | • | • | |||
| H600 WXCU 070515T(2) | 11.14 | 7.16 | 5.90 | 1.50 | • | • | • | |||||
| H600 WXCU 080612HP(1) | 13.65 | 8.80 | 6.80 | 1.20 | • | • | • | • | • | |||
| H600 WXCU 080612T(2) | 13.65 | 8.80 | 6.80 | 1.20 | • | • | • | |||||
| H600 WXCU 080616RM(3) | 13.65 | 8.80 | 6.80 | 1.60 | • | • |
(1) For stainless steel and high temperature alloys (2) For alloy steel and cast iron, "I" mark on top rake face for identification (3) For interrupted cut and hard materials (4) For insert radius for programming see table below
For tools, see pages: FF EWX (297) • FF EWX-M (298) • FF EWX-MM (299) • FF FWX (306) • MF EWX (299) • MF EWX-M (300) • MF FWX (307)
HP T RM
| Cut Recomm forFF | ting endations Tools | Radius for Programming on | Cut Recomm forM | ting endations F Tools | Radius for Programming on | |
| Inserts | ap (mm) | fz (mm/t) | FF Tools | ap (mm) | fz (mm/t) | MF Tools |
| H600 WXCU 040310HP | 0.5-0.8 | 0.34-0.68 | 1.9 | 0.5-1.5 | 0.2-0.4 | 2.6 |
| H600 WXCU 040310T | 0.5-0.8 | 0.68-1.03 | 1.9 | 0.5-1.5 | 0.4-0.6 | 2.6 |
| H600 WXCU 05T312HP | 0.7-1.0 | 0.34-0.68 | 2.3 | 0.8-2.0 | 0.2-0.4 | 3.3 |
| H600 WXCU 05T312T | 0.7-1.0 | 0.68-1.03 | 2.3 | 0.8-2.0 | 0.4-0.6 | 3.3 |
| H600 WXCU 070515HP | 1.0-1.5 | 0.34-0.86 | 3.1 | 1-2.7 | 0.2-0.5 | 4.1 |
| H600 WXCU 070515T | 1.0-1.5 | 0.68-1.37 | 3.1 | 1-2.7 | 0.4-0.8 | 4.1 |
| H600 WXCU 080612HP | 1.5-2.0 | 0.34-0.86 | 3.3 | 1.8-3.5 | 0.2-0.5 | 4.8 |
| H600 WXCU 080612T | 1.5-2.0 | 0.68-1.37 | 3.3 | 1.8-3.5 | 0.4-0.8 | 4.8 |
| H600 WXCU 080616RM | 1.5-2.0 | 0.68-1.37 | 3.7 | 1.8-3.5 | 0.4-0.8 | 5.2 |
| Cut Recommen FF Tools i | ting dations for nplunging | Radius for Programming on FF Tl | Cu Recomme MF Tools | tting ndations for inplunging | Radius for Programming on MF Tl | |
| Inserts | ae (mm) | fz (mm/t) | oos | ae (mm) | fz (mm/t) | oos |
| H600 WXCU 040310HP | 3.7 | 0.04-0.08 | 1.9 | 3.5 | 0.04-0.08 | 2.6 |
| H600 WXCU 040310T | 3.7 | 0.04-0.10 | 1.9 | 3.5 | 0.04-0.10 | 2.6 |
| H600 WXCU 05T312HP | 5 | 0.04-0.08 | 2.3 | 4.75 | 0.04-0.08 | 3.3 |
| H600 WXCU 05T312T | 5 | 0.04-0.10 | 2.3 | 4.75 | 0.04-0.10 | 3.3 |
| H600 WXCU 070515HP | 6.5 | 0.04-0.10 | 3.1 | 6.15 | 0.04-0.10 | 4.1 |
| H600 WXCU 070515T | 6.5 | 0.04-0.12 | 3.1 | 6.15 | 0.04-0.12 | 4.1 |
| H600 WXCU 080612HP | 8 | 0.04-0.10 | 3.3 | 7.65 | 0.04-0.10 | 4.8 |
| H600 WXCU 080612T | 8 | 0.04-0.12 | 3.3 | 7.65 | 0.04-0.12 | 4.8 |
| H600 WXCU 080616RM | 8 | 0.04-0.12 | 3.7 | 7.65 | 0.04-0.12 | 5.2 |
