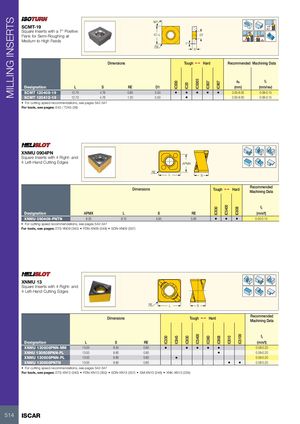

Каталог Iscar дисковые фрезы и фрезерные пластины 2022 - страница 198

MILLING INSERTS
90°
SCMT-19 75 º
Square Inserts with a 7° Positive 45 º
IC=L D1
Flank for Semi-Roughing at 45 º 45°
Medium to High Feeds
7°
RE
S

Dimensions Tough 1 Hard Recommended Machining Data

ap fz


IC5005
IC830


IC807
IC907
IC20
Designation L S RE D1 (mm) (mm/rev)
SCMT 120408-19 12.70 4.76 0.80 5.50 • • • • • 3.00-8.00 0.08-0.15
SCMT 120412-19 12.70 4.76 1.20 5.50 • 3.00-8.00 0.08-0.15
• For cutting speed recommendations, see pages 542-547
For tools, see pages: E45 / T245 (38)


XNMU 0904PN
Square Inserts with 4 Right- and
4 Left-Hand Cutting Edges APMX
RE
L S

Recommended
Dimensions Tough 1 Hard
Machining Data

fz

IC5400
IC830


IC808
Designation APMX L S RE (mm/t)
XNMU 090408-PNTN 8.20 9.10 5.95 0.80 • • • 0.05-0.15
• For cutting speed recommendations, see pages 542-547
For tools, see pages: ETS-XN09 (340) • FDN-XN09 (349) • SDN-XN09 (357)


XNMU 13
Square Inserts with 4 Right- and
4 Left-Hand Cutting Edges

RE L S

Recommended
Dimensions Tough 1 Hard
Machining Data

fz
IC5400


IC5100
IC330
IC845
IC830


IC380
IC808
IC810


Designation L S RE (mm/t)
XNMU 130608PNN-MM 13.00 8.50 0.80 • • • • • 0.08-0.20
XNHU 130608PNN-PL 13.00 8.80 0.80 • 0.08-0.20
XNMU 130608PNN-PL 13.00 8.80 0.80 • 0.08-0.20
XNMU 130608PNTN 13.00 8.80 0.80 • • 0.08-0.20
• For cutting speed recommendations, see pages 542-547
For tools, see pages: ETS-XN13 (340) • FDN-XN13 (350) • SDN-XN13 (357) • SM-XN13 (246) • XNK-XN13 (239)


514 ISCAR
